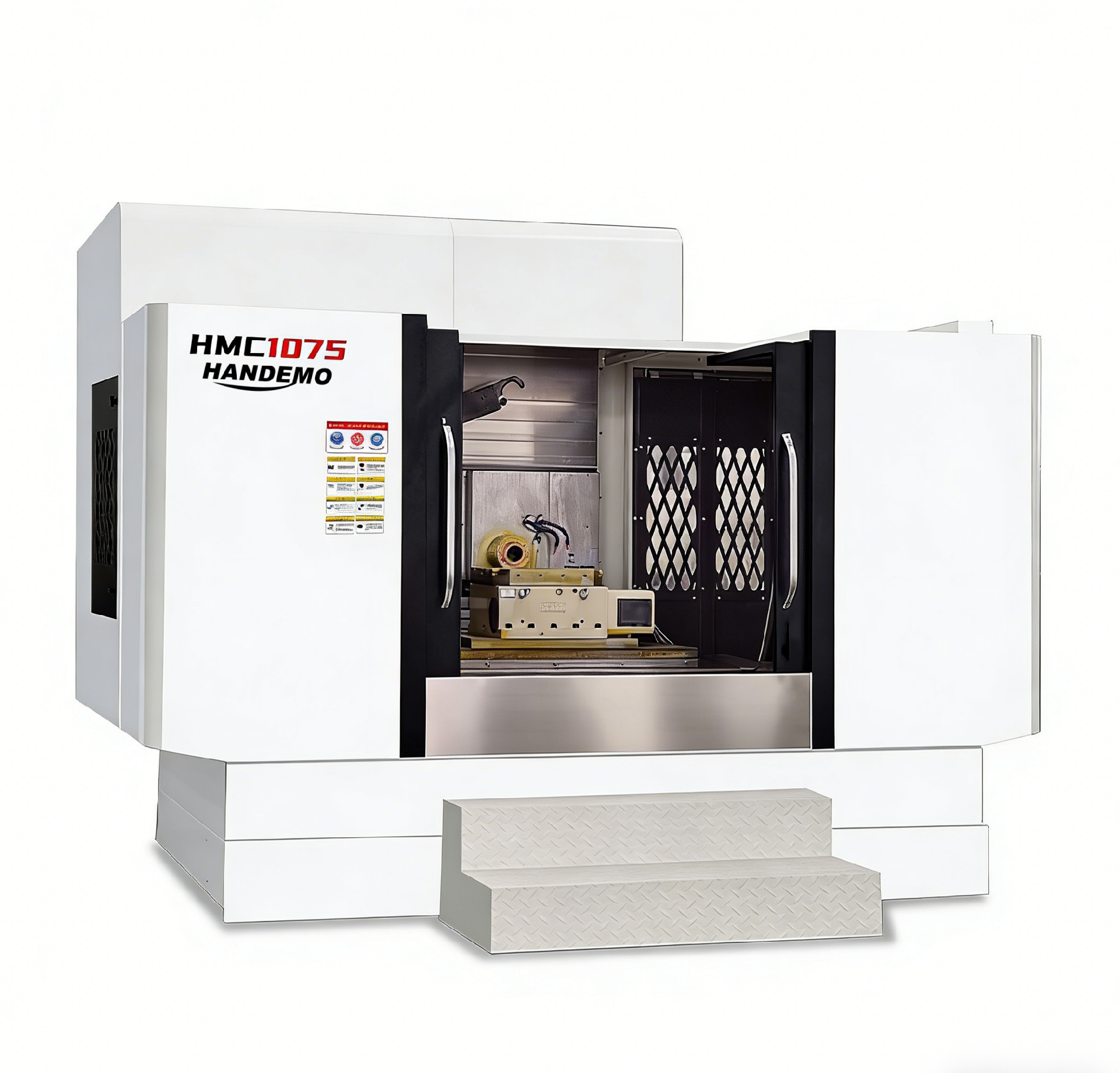

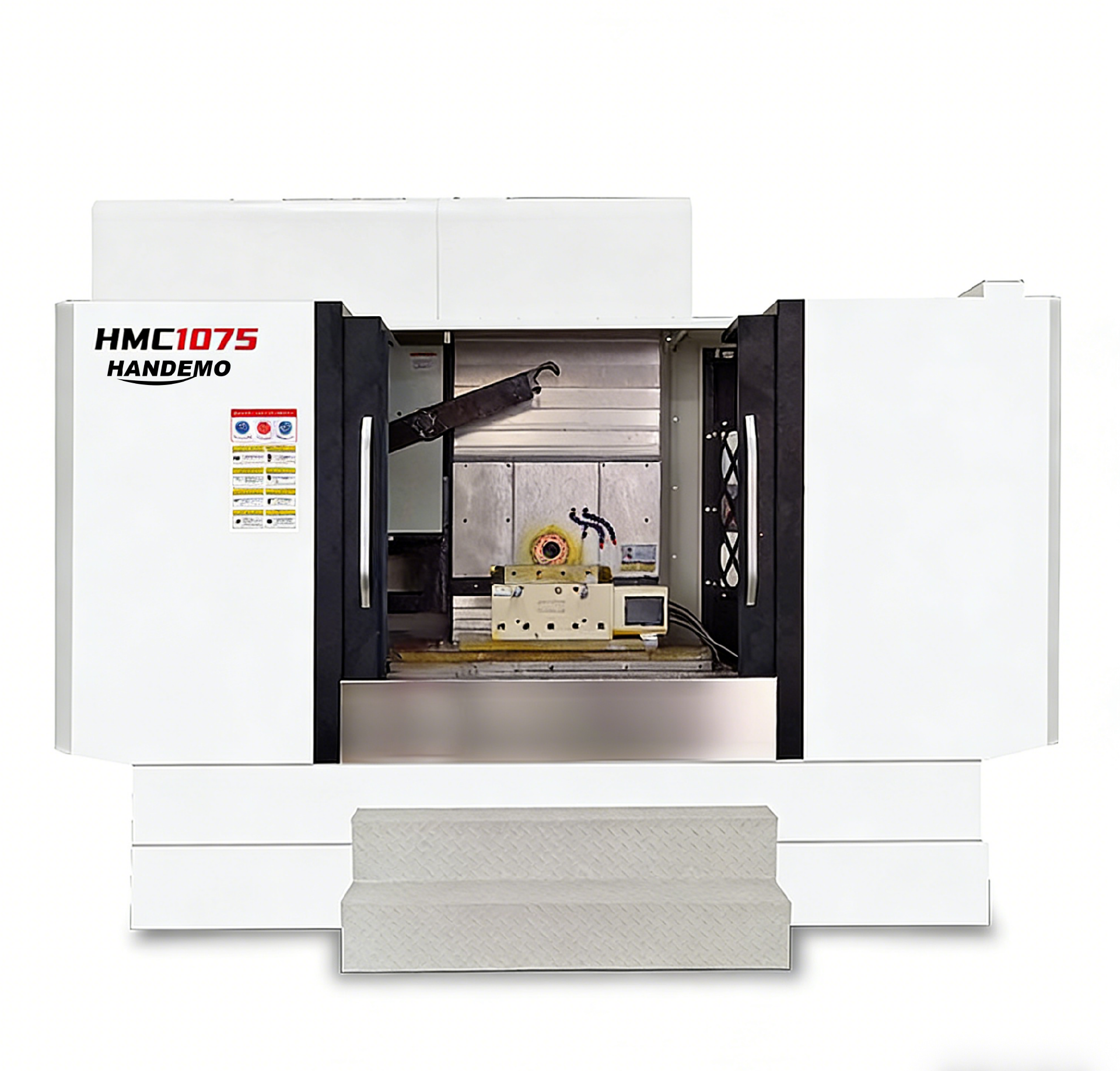

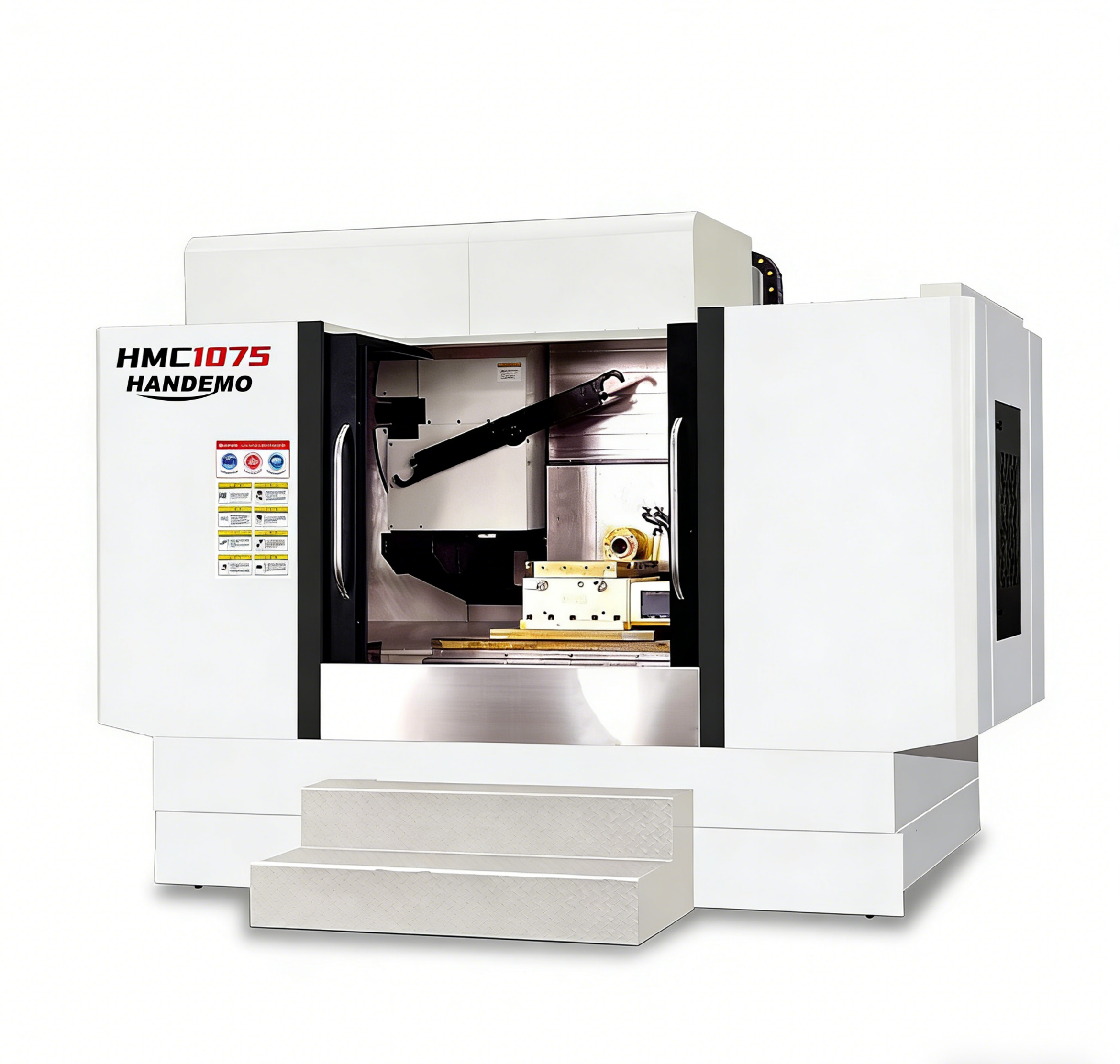

1075 Horizontal Machining Centers

Products / Horizontal Machining Centers

* The column is equipped with a hard rail, which has good overall rigidity and can save 30% of cutting tools. It is suitable for processing harder materials such as steel parts and castings.
* Deep hole machining can be completed in one go, making tool avoidance more convenient.
* The spindle comes standard with BT40 and can be replaced with BT50 at will.

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Details

Product Parameters

Speicifications	HMC1075
Table size （mm）	1300×600
Max. worktable load（kg）	800
T-slot (numberwidthdistance)	5-18-100
X-axis travel(mm)	1000
Y-axis travel(mm)	750
Z-axis travel(mm)	800
X-axis Fast shift speed(m/min)	24
Y-axis Fast shift speed(m/min)	12
Z-axis Fast shift speed(m/min)	24
Spindle taper hole	BT40-150
Spindle speed (rpm)	6000
Machine size (mm)	3700L3050W2700H
Machine weight (KG)	8000
