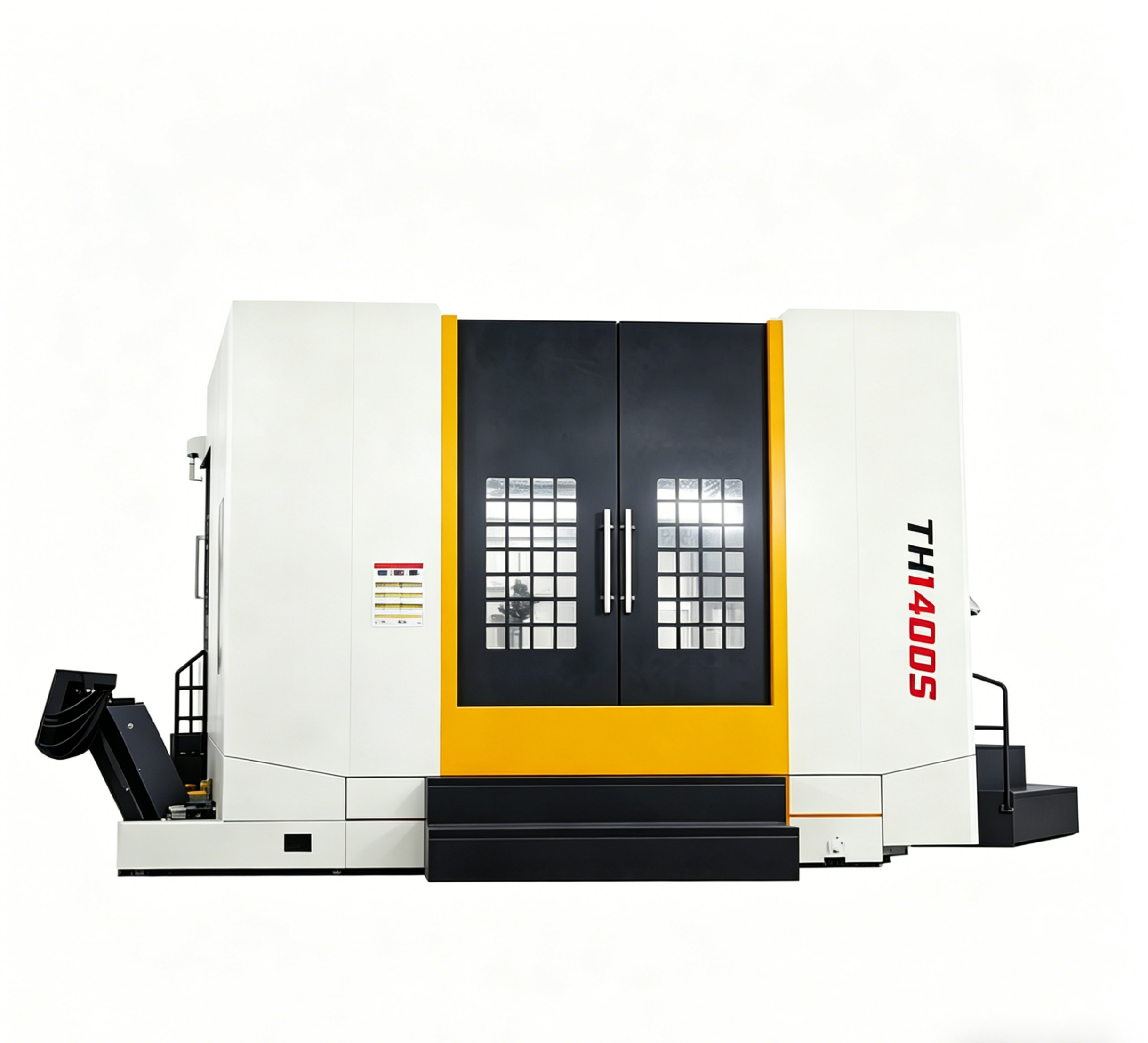

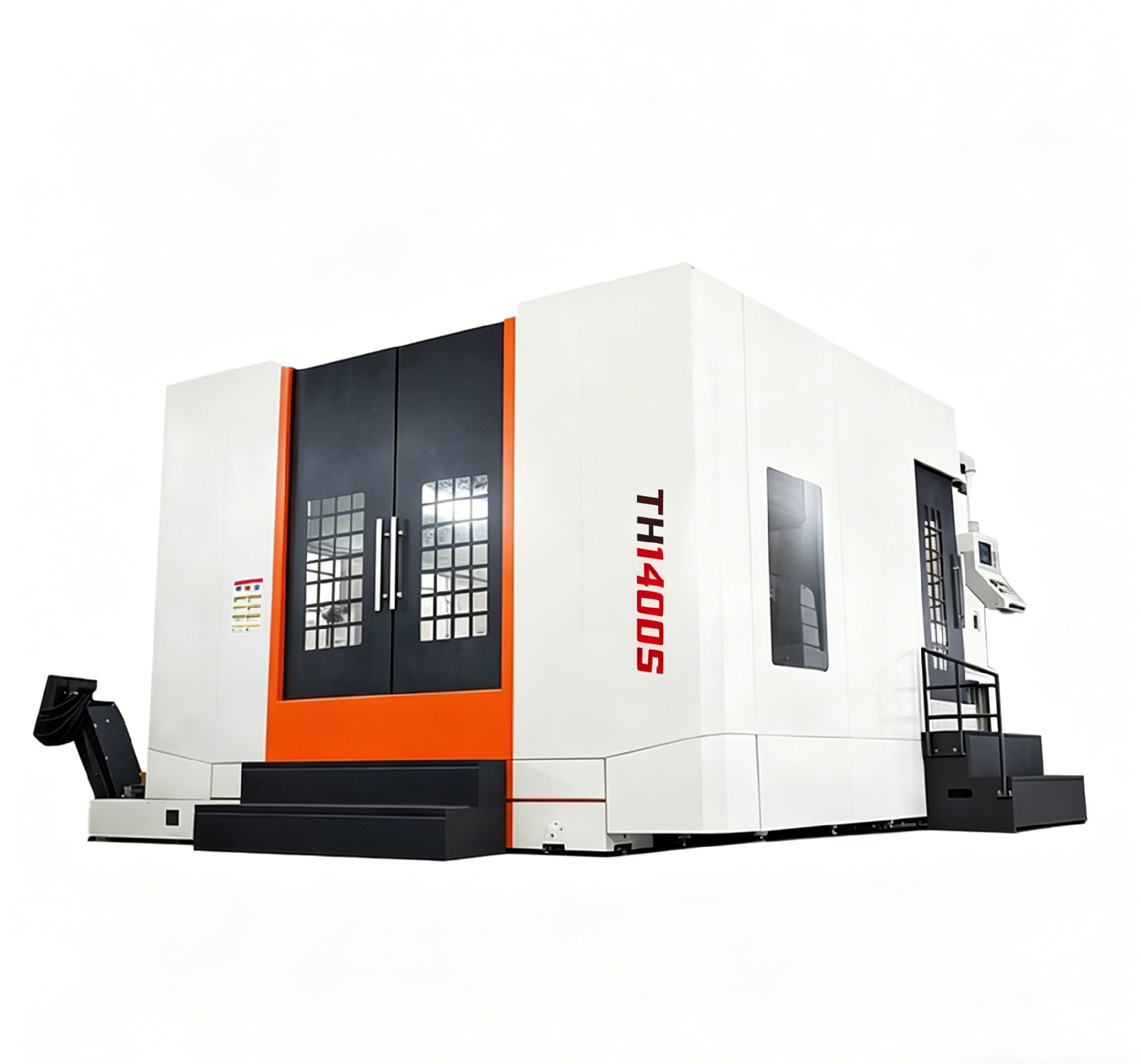

TH1400S Horizontal Machining Centers
Horizontal Machining Centers / Deep-hole Boring And Milling
*Table size 1400×1400 mm, max load capacity 5000 kg, T-slot 7-22-125 mm
*Spindle taper hole BT50-45°, spindle speed range 2000 r/min
*X/Y/Z axis travel: 1800/1300/1500 mm, X rapid shift 14 m/min, Y 12 m/min, Z 14 m/min
*Machine weight 19500 kg
*Spindle taper hole BT50-45°, spindle speed range 2000 r/min
*X/Y/Z axis travel: 1800/1300/1500 mm, X rapid shift 14 m/min, Y 12 m/min, Z 14 m/min
*Machine weight 19500 kg
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | HMC1400S |
| Table size （mm） | 1400×1400 |
| Max. load capacity（kg） | 5000 |
| T-slot (number*width*distance) | 7-22-125 |
| X-axis travel(mm) | 1800 |
| Y-axis travel(mm) | 1300 |
| Z-axis travel(mm) | 1500 |
| X-axis Fast shift speed(m/min) | 14 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 14 |
| Spindle taper hole | BT50-45° |
| Spindle Speed range (r/min) | 2000 |
| Machine weight (KG) | 19500 |
