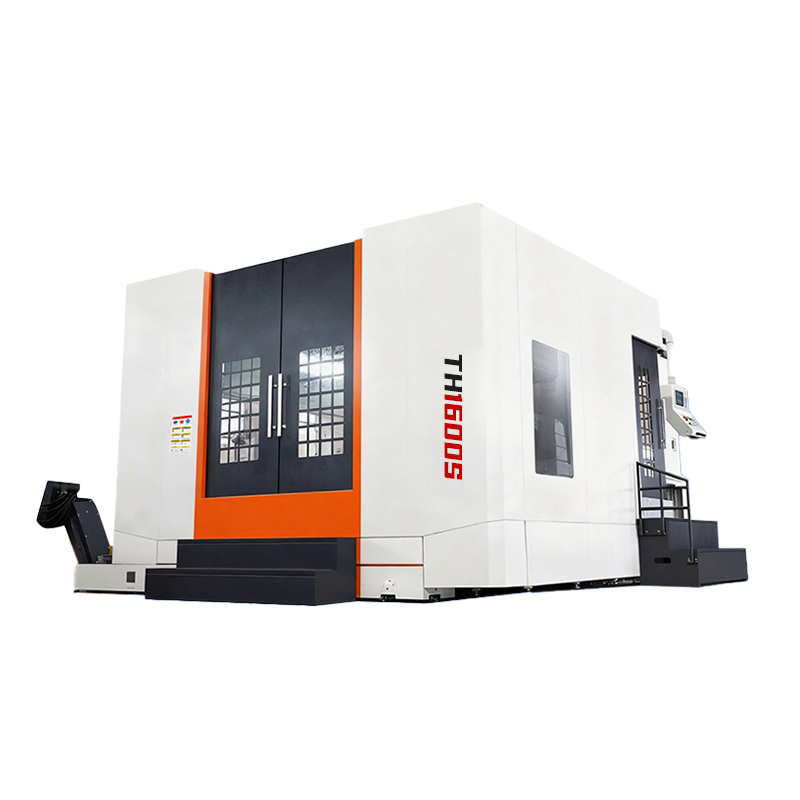

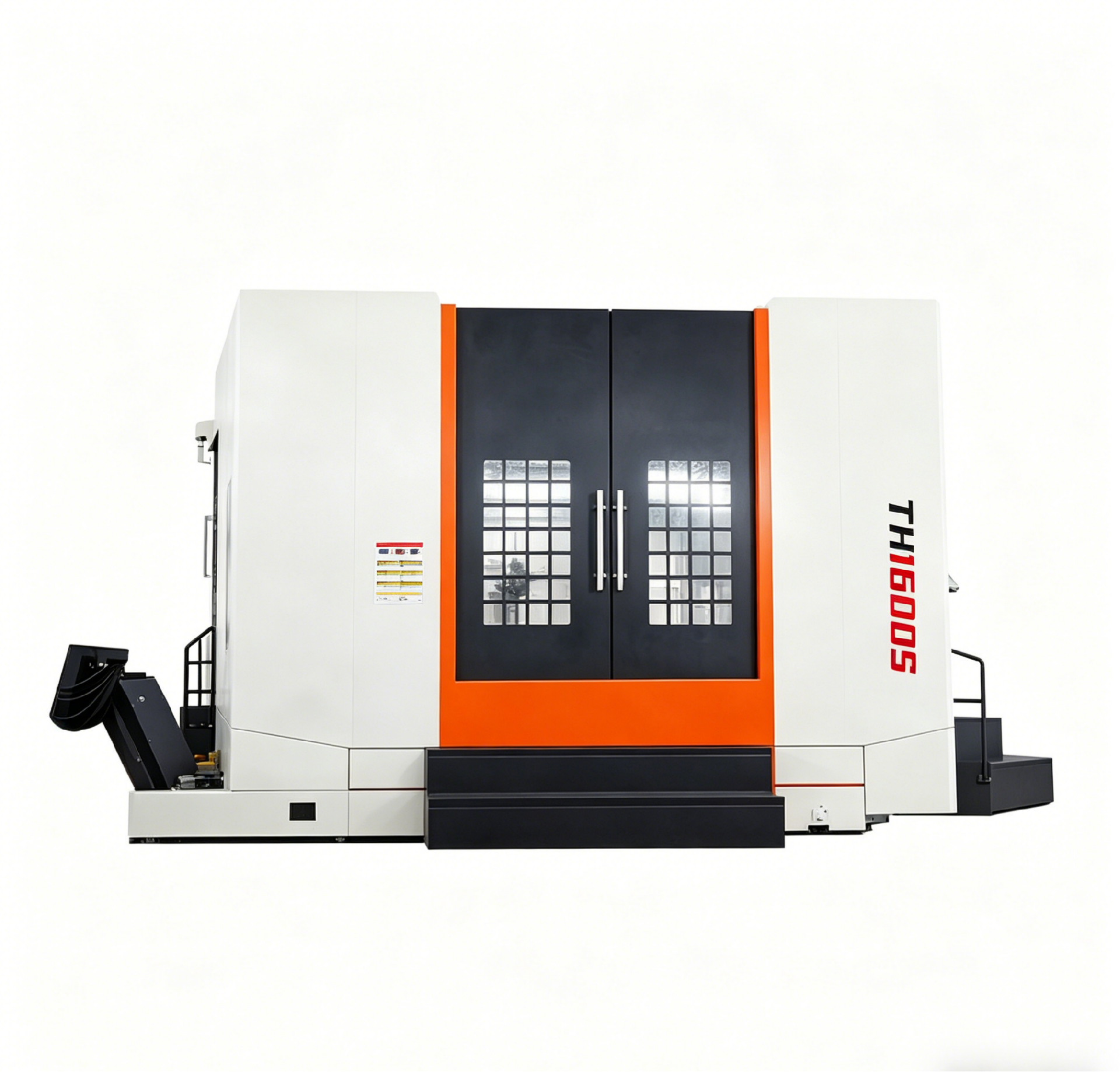

TH1600S Horizontal Machining Centers
Horizontal Machining Centers / Deep-hole Boring And Milling
*Table size 1600×1600 mm, max load capacity 10000 kg, T-slot 7-28-220 mm
*Spindle taper hole BT50-45°, spindle speed range 1500 r/min
*X/Y/Z axis travel: 2000/1500/1800 mm, X/Y/Z rapid shift 12/12/12 m/min
*Machine weight 24000 kg
*Spindle taper hole BT50-45°, spindle speed range 1500 r/min
*X/Y/Z axis travel: 2000/1500/1800 mm, X/Y/Z rapid shift 12/12/12 m/min
*Machine weight 24000 kg
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | HMC1600S |
| Table size （mm） | 1600×1600 |
| Max. load capacity（kg） | 10000 |
| T-slot (number*width*distance) | 7-28-220 |
| X-axis travel(mm) | 2000 |
| Y-axis travel(mm) | 1500 |
| Z-axis travel(mm) | 1800 |
| X-axis Fast shift speed(m/min) | 12 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 12 |
| Spindle taper hole | BT50-45° |
| Spindle Speed range (r/min) | 1500 |
| Machine weight (KG) | 24000 |
