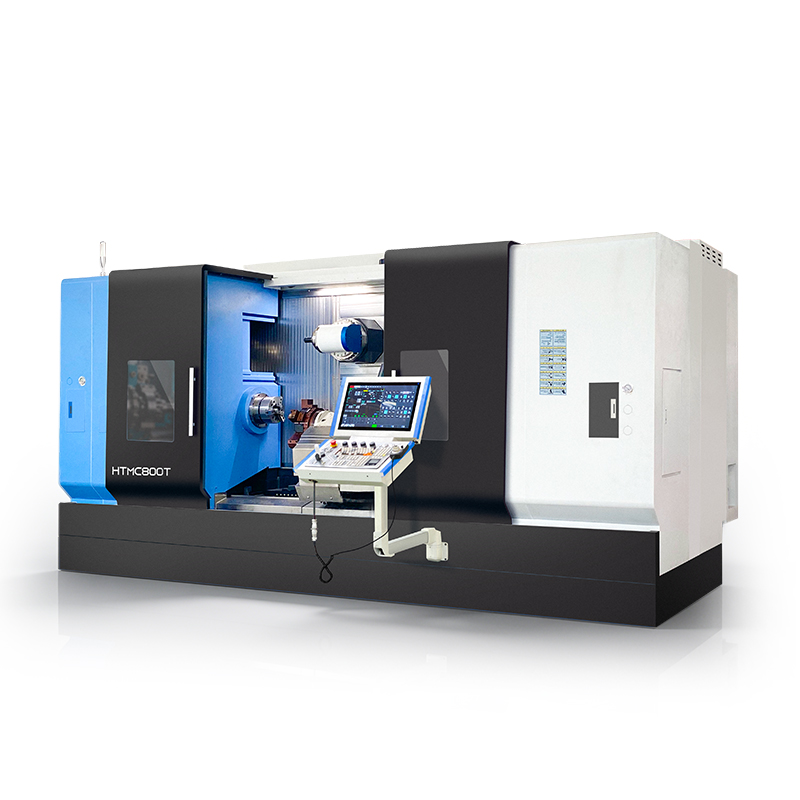

HTMC800T Mill-Turn Machines
*Max. swing over bed 700 mm, max turning length 1500 mm, max turning diameter 600 mm, max swing over cross slide 700 mm
*Spindle nose type A2-6/A2-8
*X-axis travel 820 mm, Y-axis travel ±125 mm, Z-axis travel 1800 mm, X/Y/Z rapid shift 12/12/12 m/min
*Max. tool diameter 75 mm, max tool length 300 mm
*Spindle nose type A2-6/A2-8
*X-axis travel 820 mm, Y-axis travel ±125 mm, Z-axis travel 1800 mm, X/Y/Z rapid shift 12/12/12 m/min
*Max. tool diameter 75 mm, max tool length 300 mm
Product Details
Product Parameters
| Speicifications | HTMC800T |
| Max. swing over bed （mm） | 700 / 330 (lower turret) |
| Max. turning length（mm） | 1500 |
| Max. turning diameter（mm） | 600 / 330 (lower turret) |
| Max. swing over cross slide（mm） | 700 / 330 (lower turret) |
| Spindle nose type / code | A2-6/A2-8 |
| Z-axis travel(mm) | 1800 |
| X-axis travel(mm) | 820 |
| Y-axis travel(mm) | ±125 |
| X-axis Fast shift speed(m/min) | 12 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 12 |
| Max. tool diameter(mm) | 75 |
| Max. tool length(mm) | 300 |
