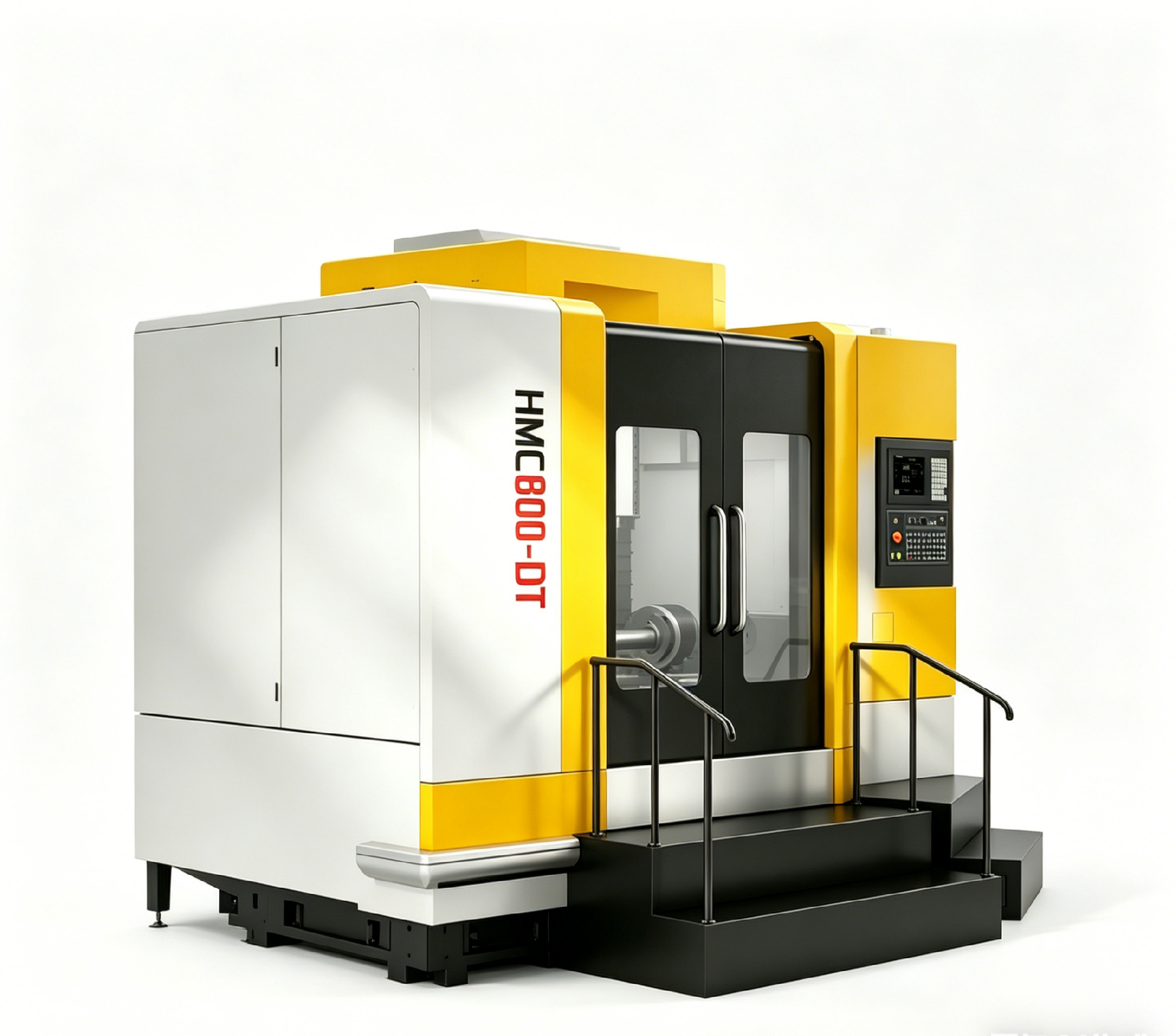

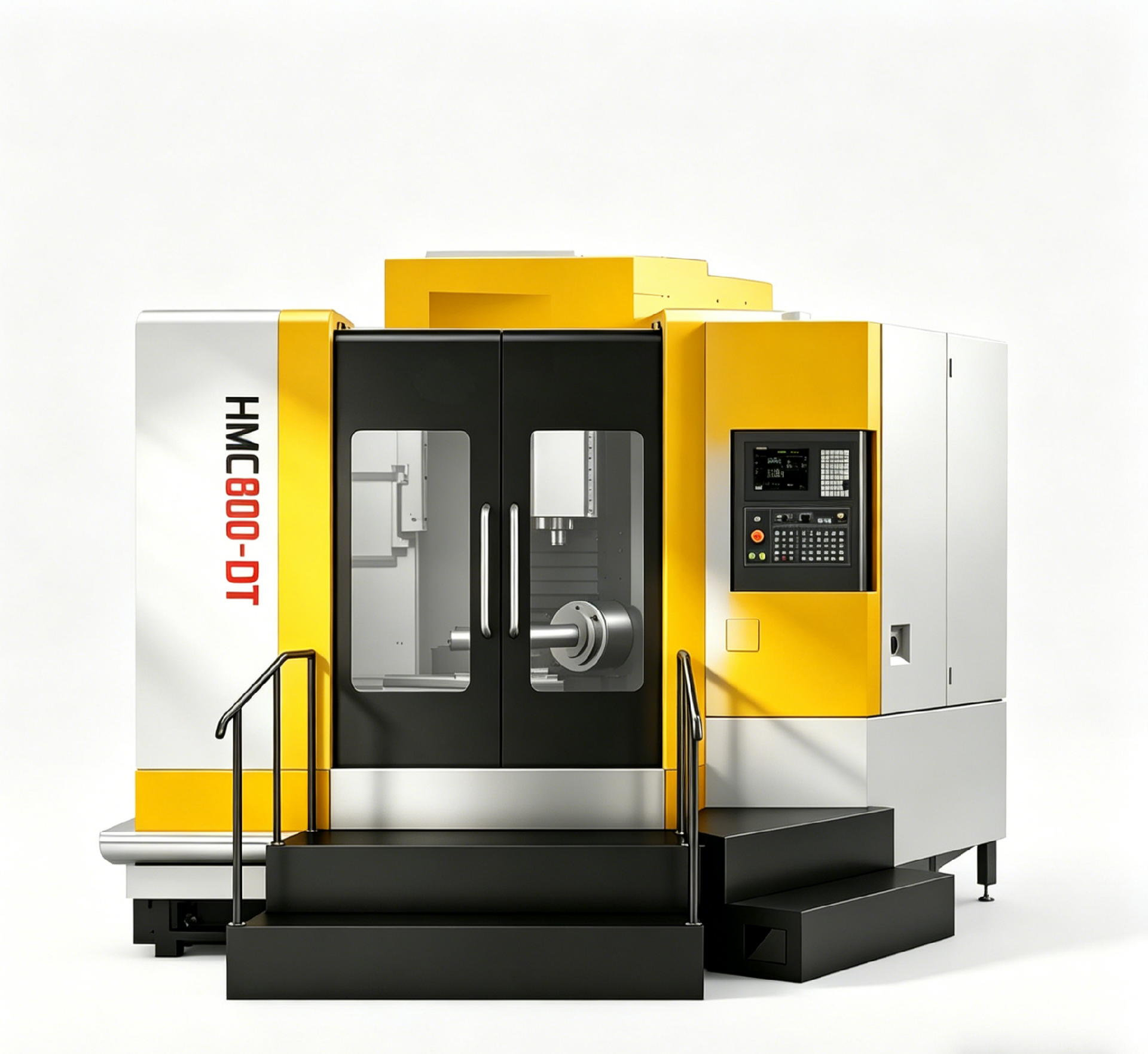

800-DT Horizontal Machining Centers
* Adopting a T-shaped split structure with reserved exchange workbench interface.
* The X-axis guide rail adopts a high and low rail structure to improve the stability of machine tool movement.
* The spindle is equipped with a reducer structure to improve the cutting torque of the machine tool spindle.
* Adopting a 55 heavy-duty guide rail with a larger span between the rails, the spindle adopts a BT50-200 spindle
* The X-axis guide rail adopts a high and low rail structure to improve the stability of machine tool movement.
* The spindle is equipped with a reducer structure to improve the cutting torque of the machine tool spindle.
* Adopting a 55 heavy-duty guide rail with a larger span between the rails, the spindle adopts a BT50-200 spindle
Product Details
Product Parameters
| Speicifications | HMC800 |
| Table size （mm） | 800×800 |
| Max. worktable load（kg） | 2500 |
| T-slot (number*width*distance) | 7-22-100 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 1150 |
| Z-axis travel(mm) | 1000 |
| X-axis Fast shift speed(m/min) | 12 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 12 |
| Spindle taper hole | BT50-200 |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 16000 |
