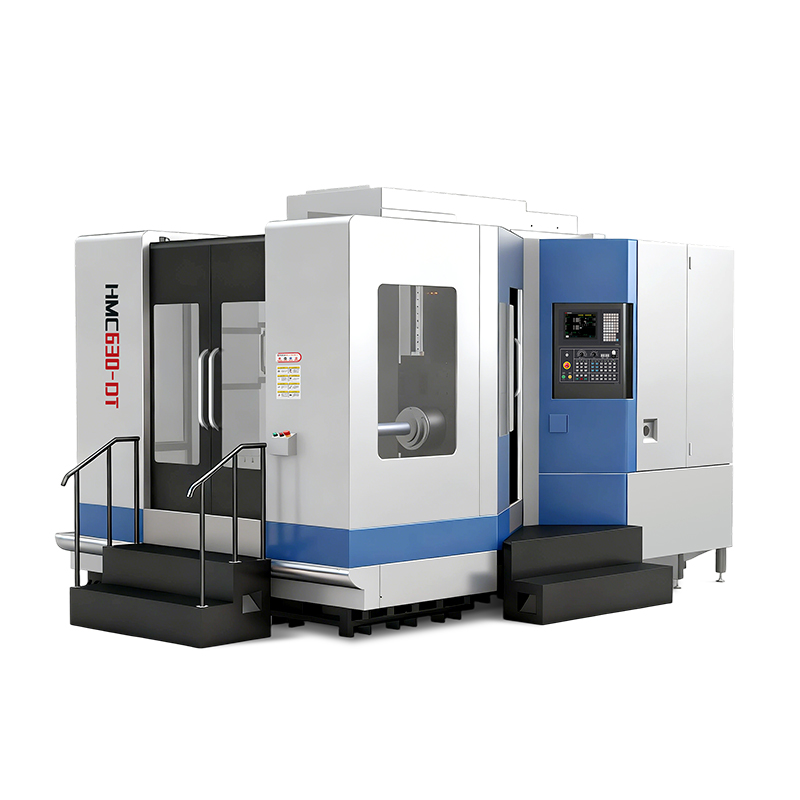

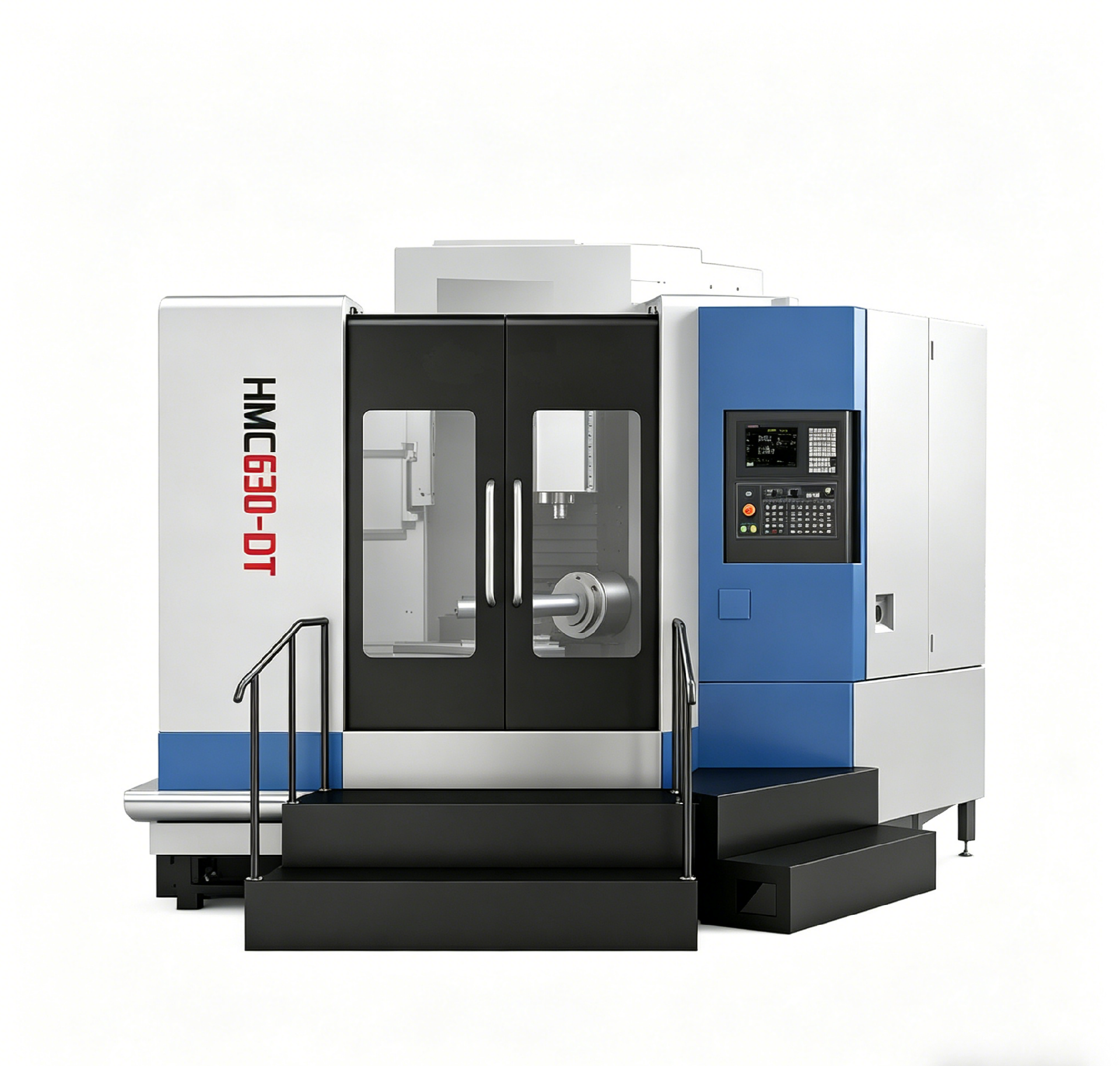

630-DT Horizontal Machining Centers
*Table size 630×630 mm, max. worktable load 1200 kg
*Spindle taper hole BT50φ190, spindle speed 6000 rpm
*X/Y/Z axis travel: 1100/900/1000 mm, X-axis rapid shift 18 m/min, Y/Z rapid shift 15 m/min
*Machine weight 12000 kg
*Spindle taper hole BT50φ190, spindle speed 6000 rpm
*X/Y/Z axis travel: 1100/900/1000 mm, X-axis rapid shift 18 m/min, Y/Z rapid shift 15 m/min
*Machine weight 12000 kg
Product Details
Product Parameters
| Speicifications | HMC630 |
| Table size （mm） | 630×630 |
| Max. worktable load（kg） | 1200 |
| X-axis travel(mm) | 1100 |
| Y-axis travel(mm) | 900 |
| Z-axis travel(mm) | 1000 |
| X-axis Fast shift speed(m/min) | 18 |
| Y-axis Fast shift speed(m/min) | 15 |
| Z-axis Fast shift speed(m/min) | 15 |
| Spindle taper hole | BT50Φ190 |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 12000 |
