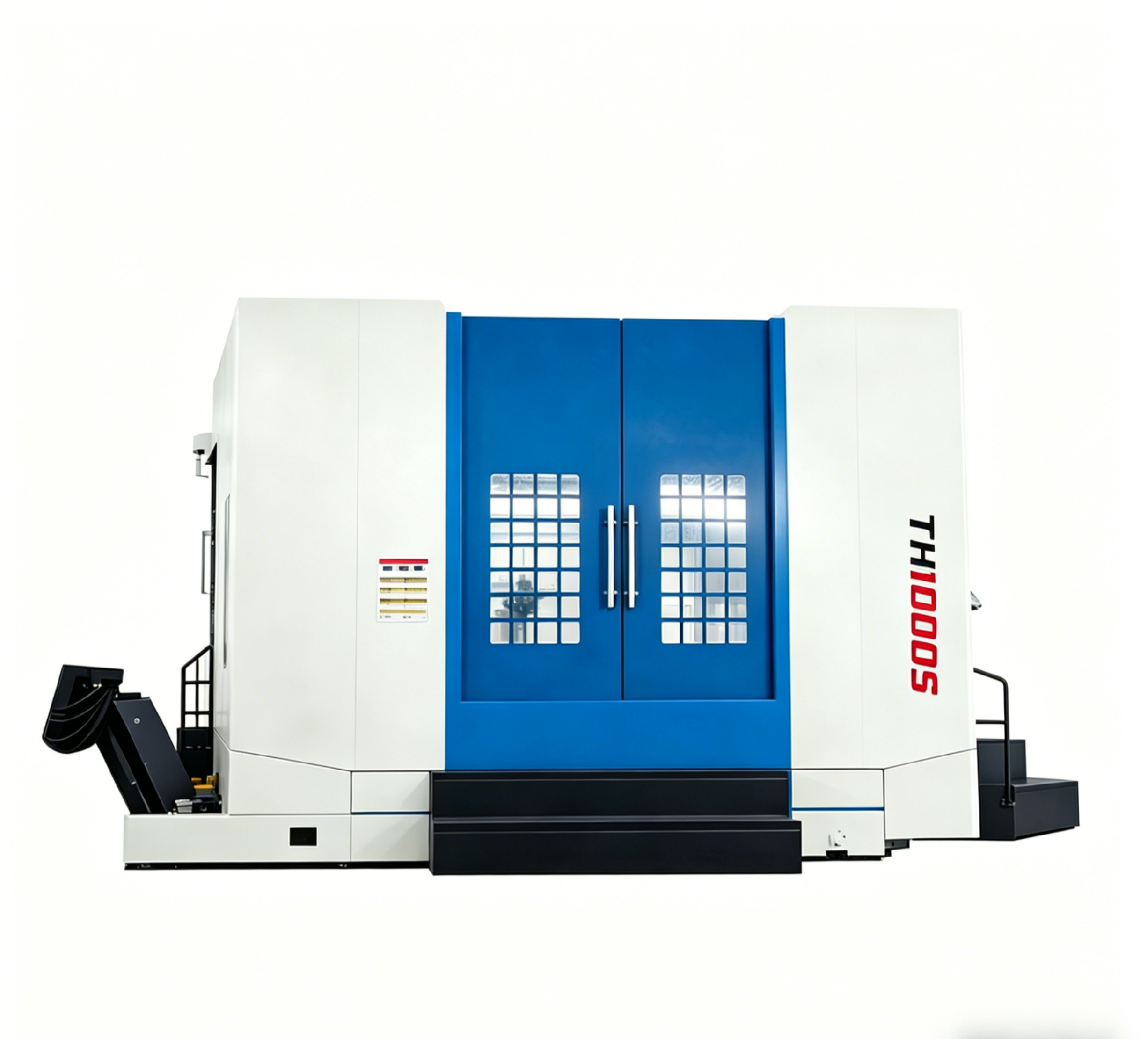

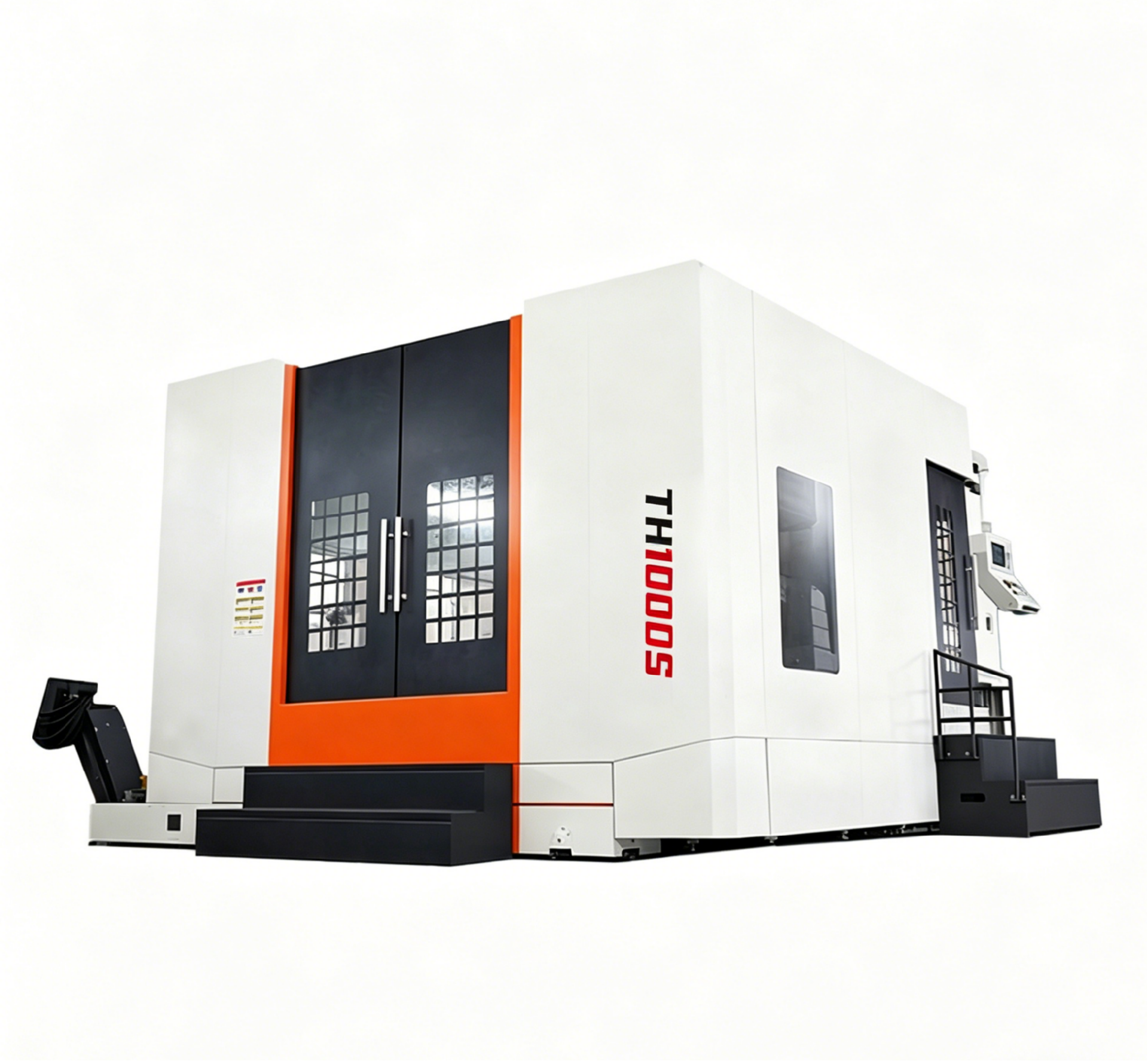

TH1000S Horizontal Machining Centers
*Table size 1000×1000 mm, max. worktable load 4000 kg, T-slot 7-22-125 mm
*Spindle taper hole BT50-45°, spindle speed 3000 rpm
*X/Y/Z axis travel: 1800/1000/1300 mm, X-axis rapid shift 14 m/min, Y-axis 12 m/min, Z-axis 14 m/min
*Machine weight 16000 kg
*Spindle taper hole BT50-45°, spindle speed 3000 rpm
*X/Y/Z axis travel: 1800/1000/1300 mm, X-axis rapid shift 14 m/min, Y-axis 12 m/min, Z-axis 14 m/min
*Machine weight 16000 kg
Product Details
Product Parameters
| Speicifications | TH1000S |
| Table size （mm） | 1000×1000 |
| Max. worktable load（kg） | 4000 |
| T-slot (number*width*distance) | 7-22-125 |
| X-axis travel(mm) | 1800 |
| Y-axis travel(mm) | 1000 |
| Z-axis travel(mm) | 1300 |
| X-axis Fast shift speed(m/min) | 14 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 14 |
| Spindle taper hole | BT50-45° |
| Spindle speed (rpm) | 3000 |
| Machine weight (KG) | 16000 |
