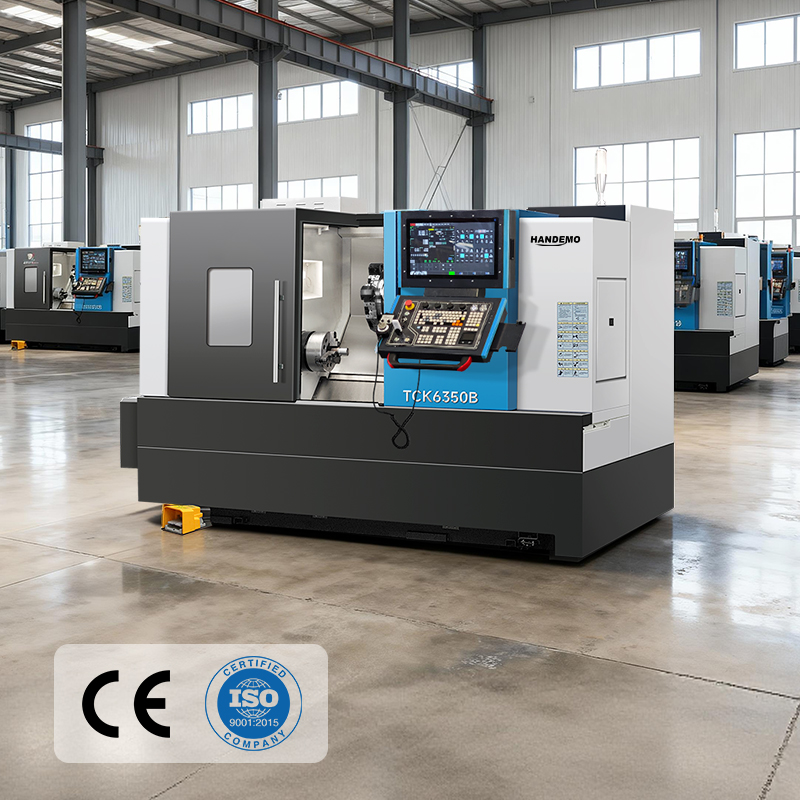

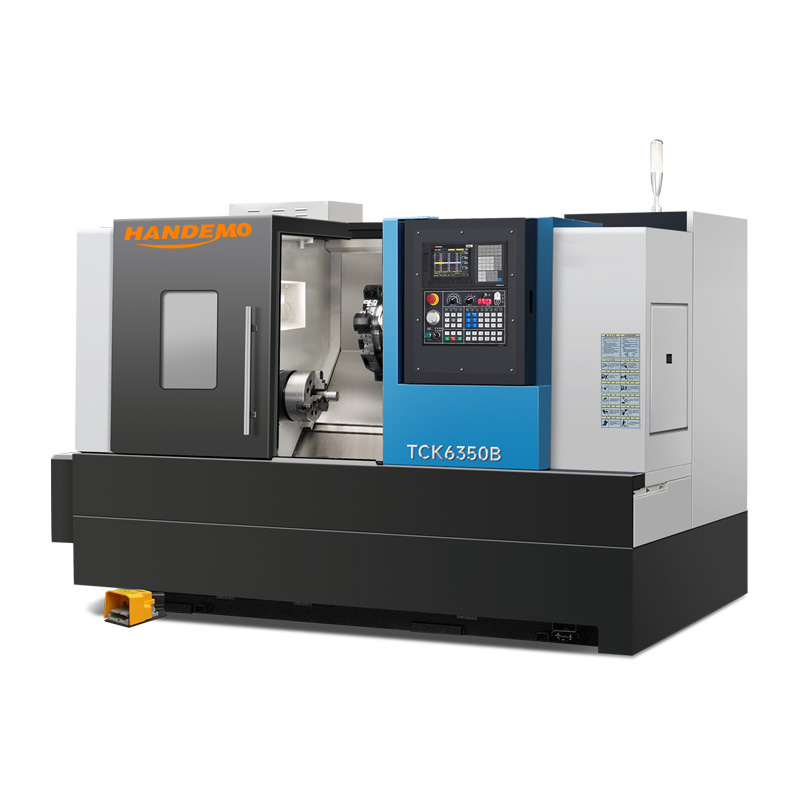

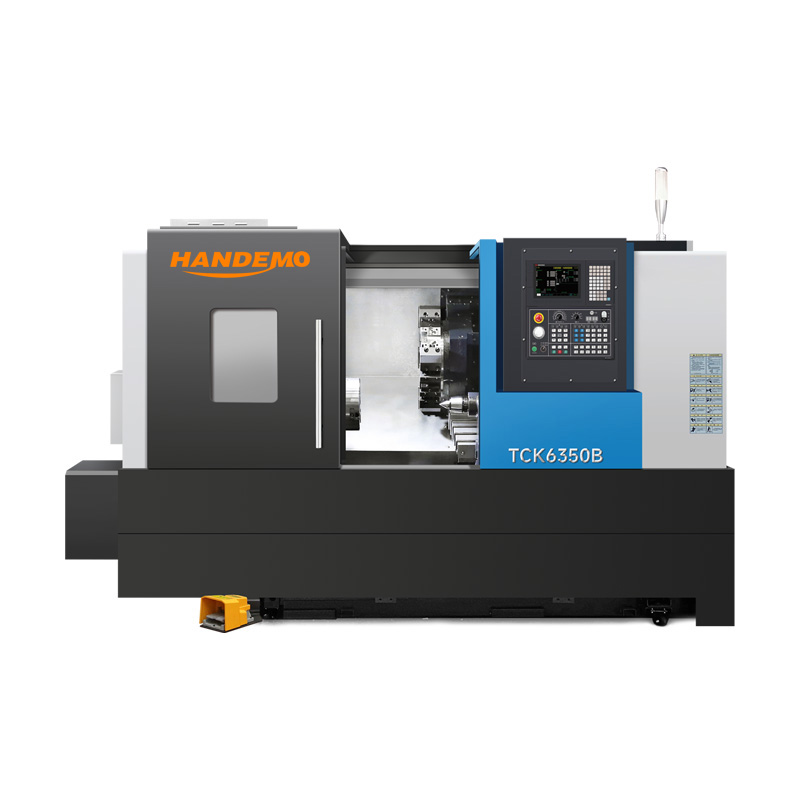

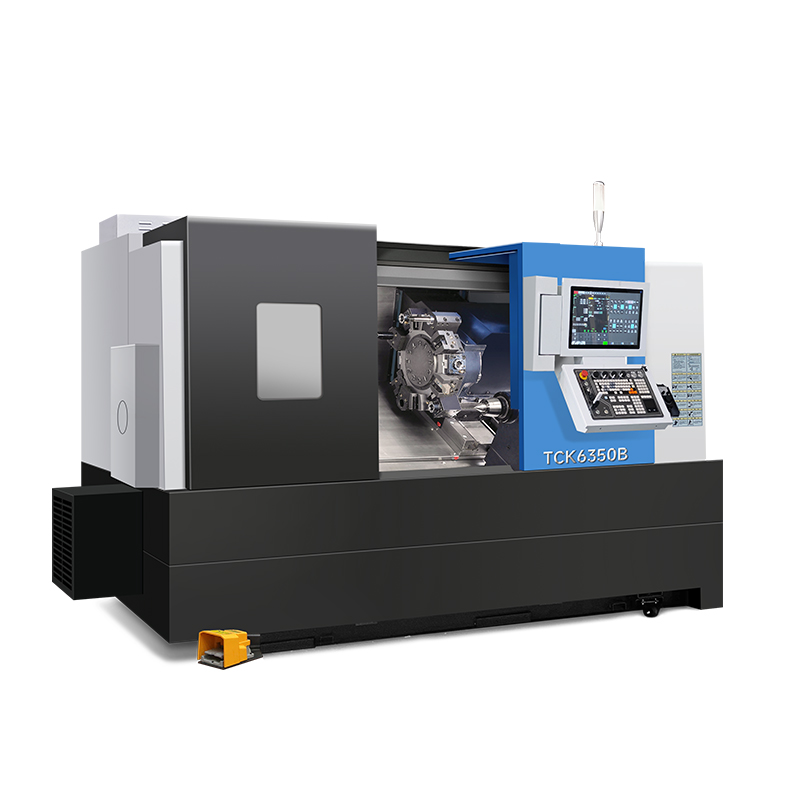

TCK6350B Heavy-Duty Industrial Model
CNC Slant Bed Lathe / Heavy-Duty Industrial Model

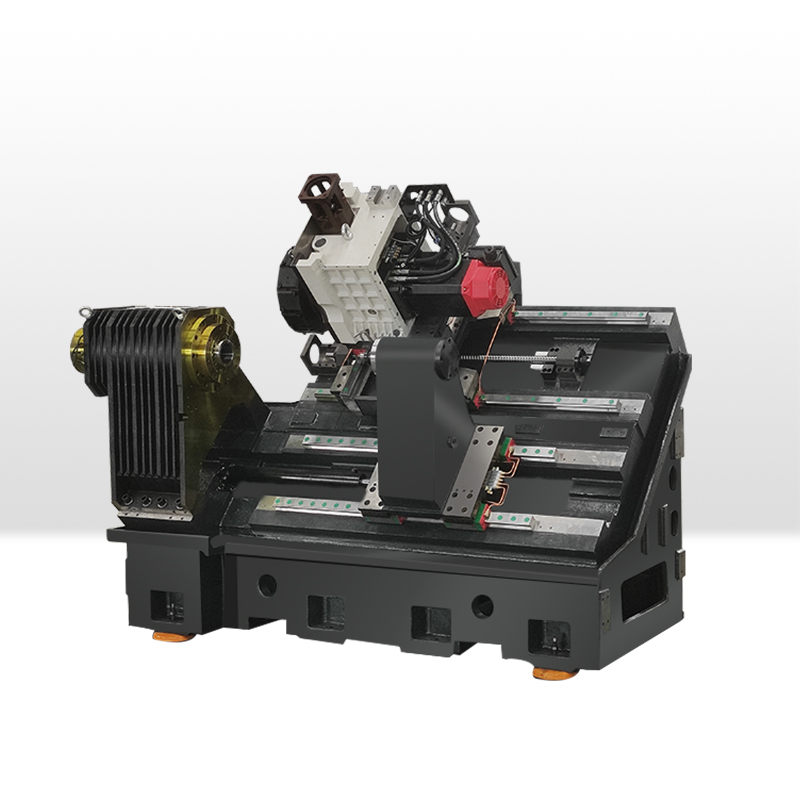

*Heavy duty hard rail lathe
*Capable of long-term unilateral cutting of 12mm
*Box type spindle, through-hole 96mm, bar material 85mm
*Capable of long-term unilateral cutting of 12mm
*Box type spindle, through-hole 96mm, bar material 85mm
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
| Speicifications | TCK6350B | TCK6350B-1000 |
| Max. turning diameter on bed(mm) | 630 | 630 |
| Max. cutting length(mm) | 500 | 1000 |
| Max. cutting diameter(mm) | 480 | 500 |
| Max. turning diameter on the skateboard(mm) | 370 | 350 |
| Spindle nose type | A2-8 | A2-8 |
| Main shaft hole diameter(mm) | 96 | 96 |
| Max. over bar diameter(mm) | 85 | 85 |
| Spindle speed range（r/min） | 4500 | 50~3000 |
| Spindle motor power（KW） | 18.5 | 18.5 |
| Chuck type（inch） | 10 or 12 | 10 or 12 |
| X-axis Fast shift speed(m/min) | 15 | 20 |
| Z-axis Fast shift speed(m/min) | 15 | 20 |
| X-axis travel(mm) | 270 | 260 |
| Z-axis travel(mm) | 690 | 1030 |
| Tail seat travel(mm) | 500 | 900 |
| Tail seat sleeve travel(mm) | 100 | 100 |

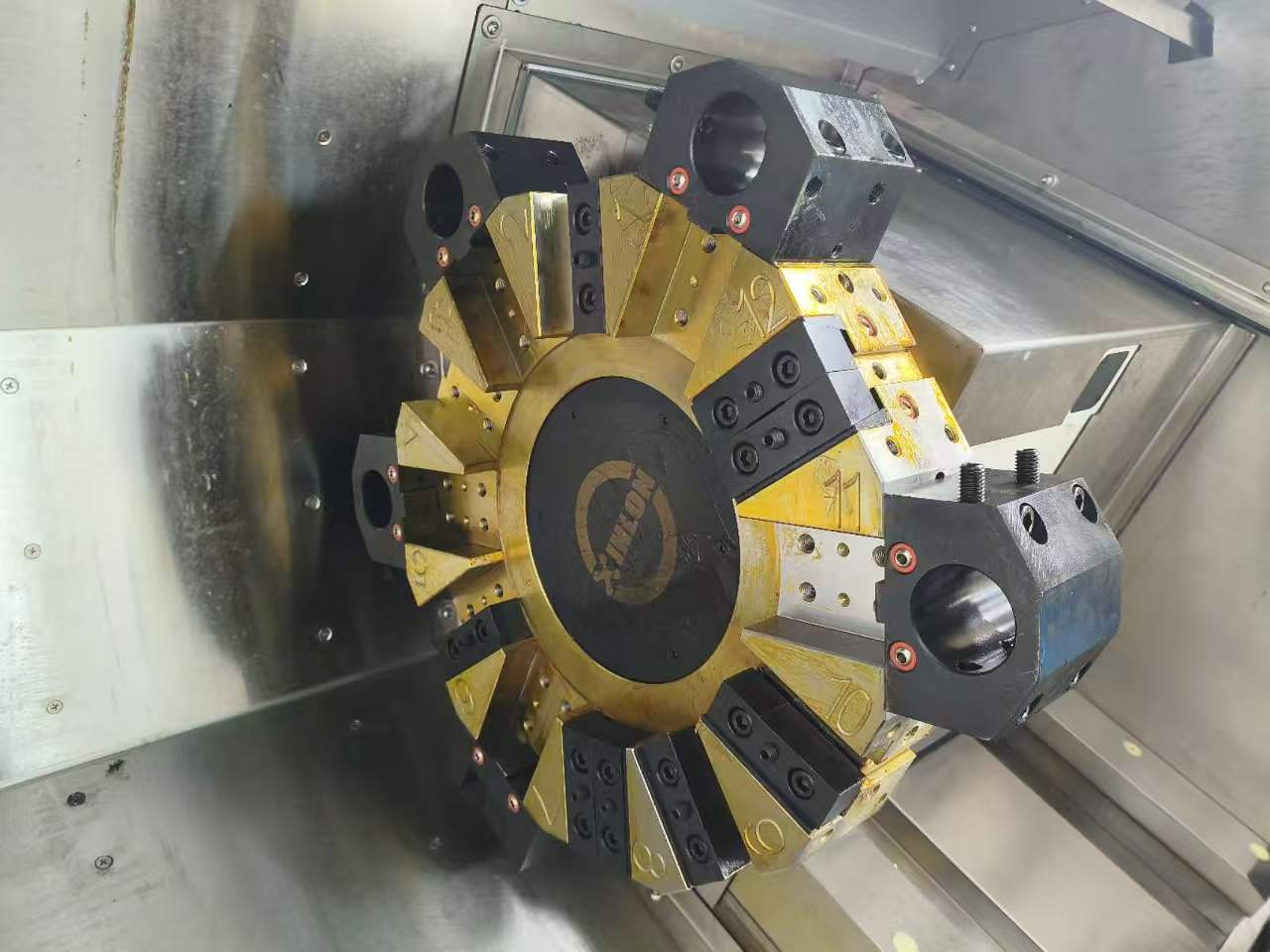

| Standard knife holder form | Horizontal 12 station servo turret | Horizontal 12‑station servo turret |
| Machine size (mm) | 3300L*1750W*1890H | 4140L*1867W*1938H |
| Machine weight (KG) | 4300 | - |
