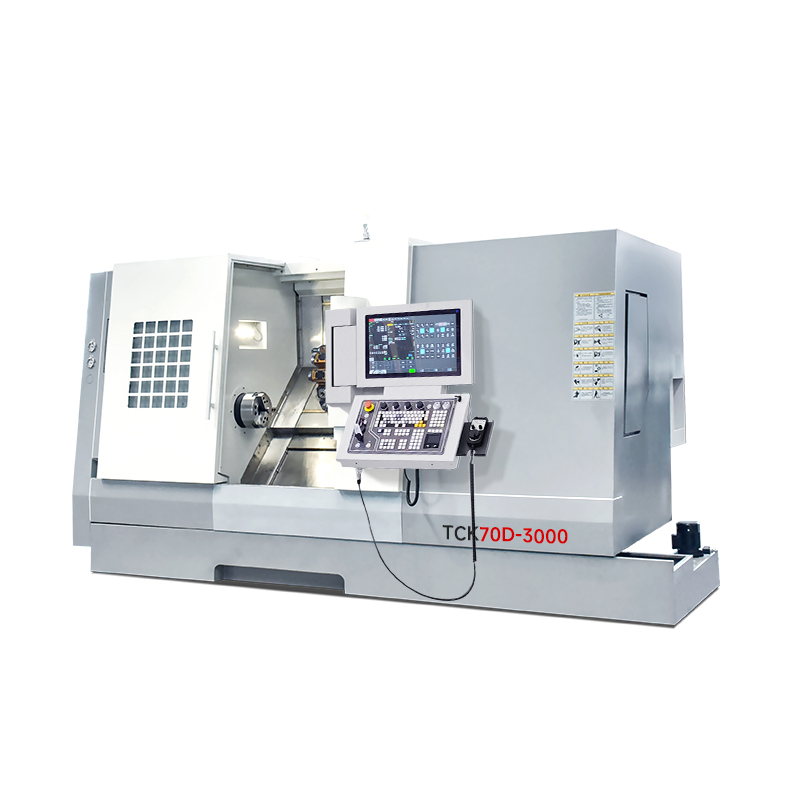

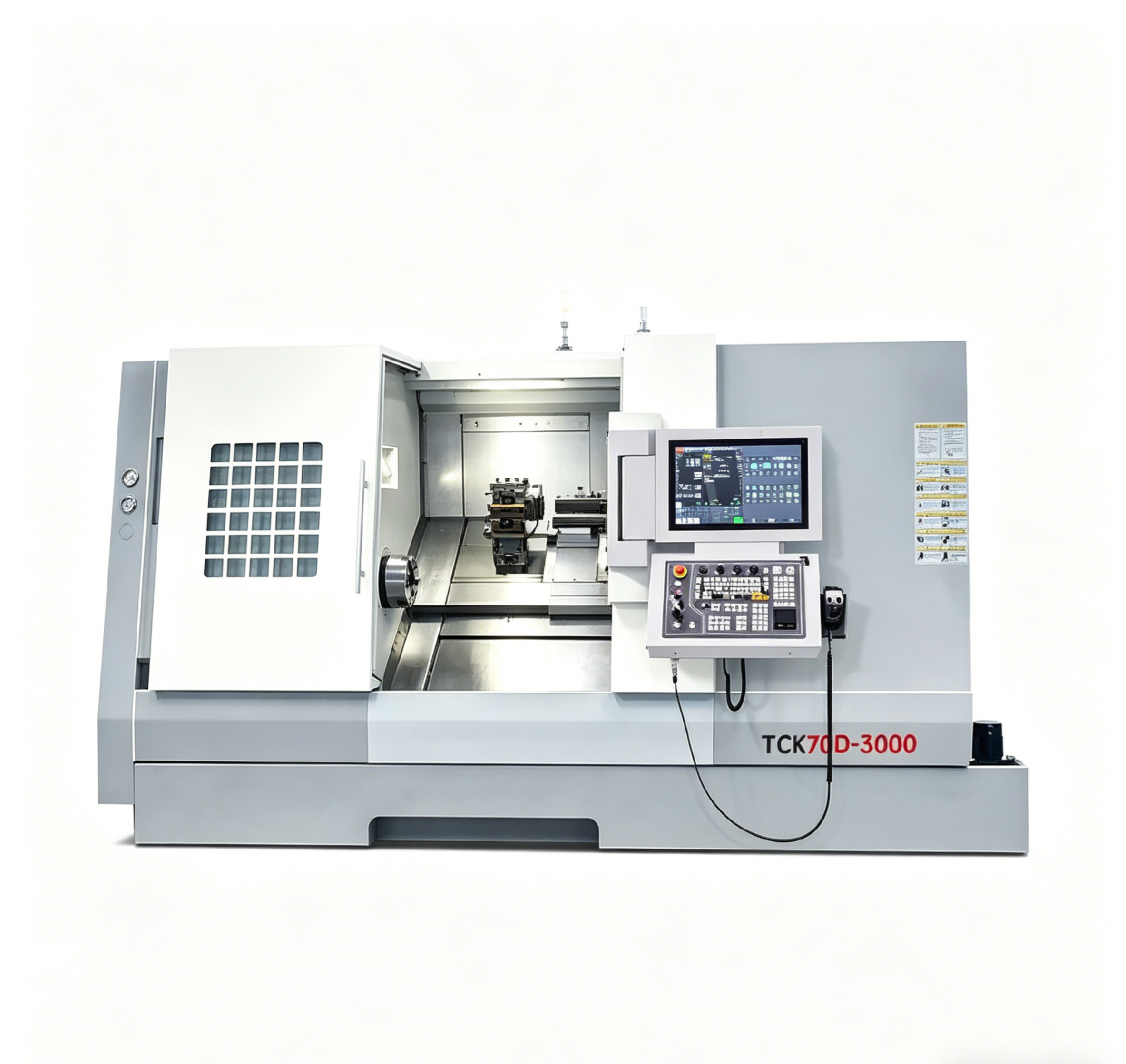

TCK70D CNC Slant Bed Lathe
*Max. swing over bed 720 mm, max turning length 2950 mm, max turning diameter 550 mm, standard turning diameter 380 mm, max swing over cross slide 400 mm
*Spindle nose type A2-11, spindle bore diameter 120 mm
*X-axis travel 300 mm, Z-axis travel 2950 mm, X/Z rapid traverse 10/10 m/min
*Tailstock travel 110 mm, tailstock quill stroke 100 mm
*Machine dimensions 6154×2321×2130 mm, approx. gross weight 12000 kg
*Spindle nose type A2-11, spindle bore diameter 120 mm
*X-axis travel 300 mm, Z-axis travel 2950 mm, X/Z rapid traverse 10/10 m/min
*Tailstock travel 110 mm, tailstock quill stroke 100 mm
*Machine dimensions 6154×2321×2130 mm, approx. gross weight 12000 kg
Product Details
Product Parameters
| Speicifications | TCK70D-2000 | TCK70D-3000 |
| Max. swing over bed(mm) | 720 | 720 |
| Max. turning length(mm) | 1950 | 2950 |
| Max. turning diameter(mm) | 550 | 550 |
| Standard turning diameter(mm) | 380 | 380 |
| Max. swing over cross slide | 400 | 400 |
| Spindle nose type / code | A2-11 | A2-11 |
| Spindle bore diameter | 120 | 120 |
| X-axis rapid traverse(m/min) | 10 | 10 |
| Z-axis rapid traverse(m/min) | 10 | 10 |
| X-axis travel(mm) | 300 | 300 |
| Z-axis travel(mm) | 1950 | 2950 |
| Tailstock travel(mm) | 110 | 110 |
| Tailstock quill stroke(mm) | 100 | 100 |
| Approx. gross weight(KG) | 10000 | 12000 |
| Machine dimensions(mm) | 4756L× 2240W× 2238H | 6154L× 2321W× 2130H |
