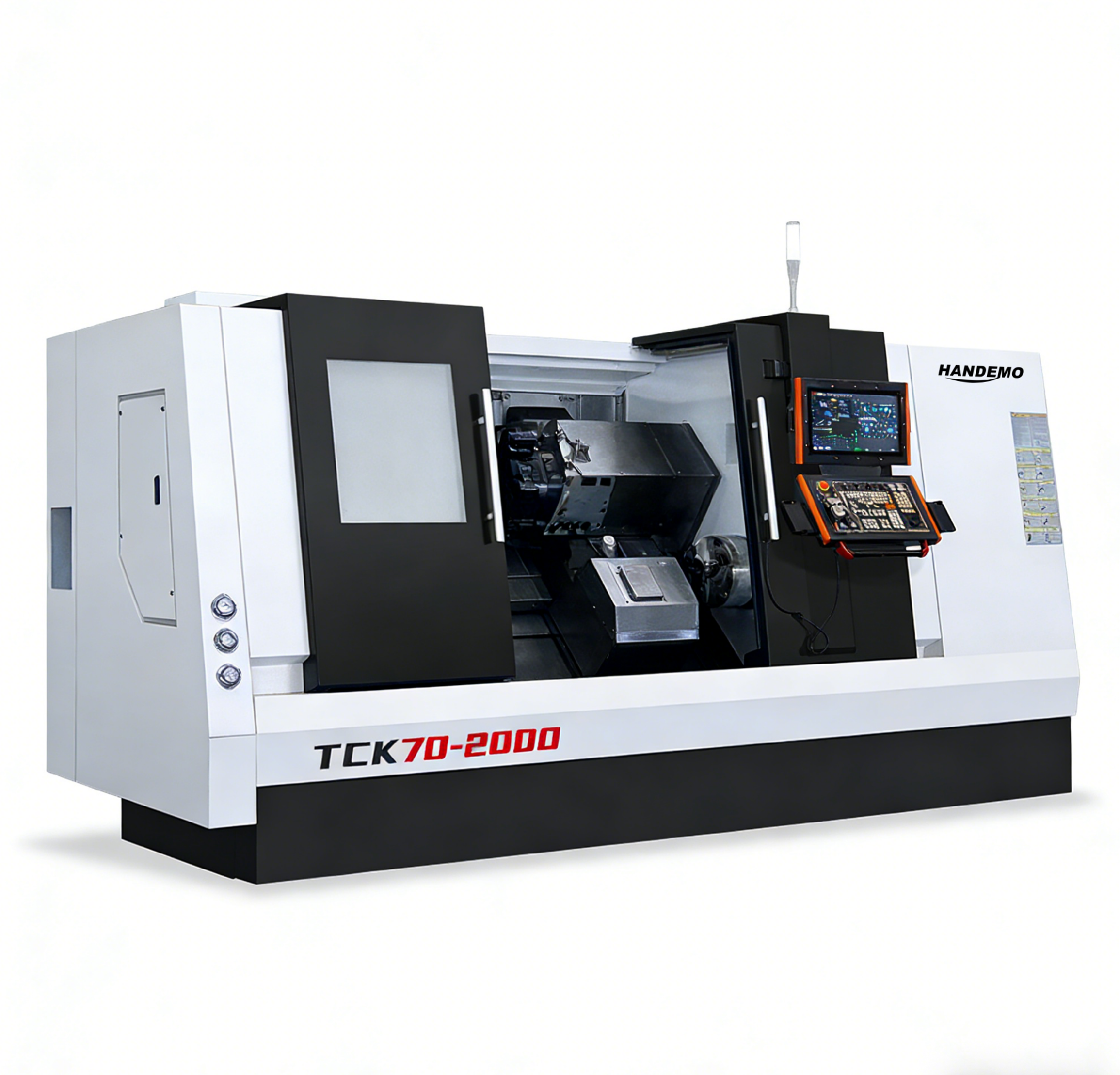

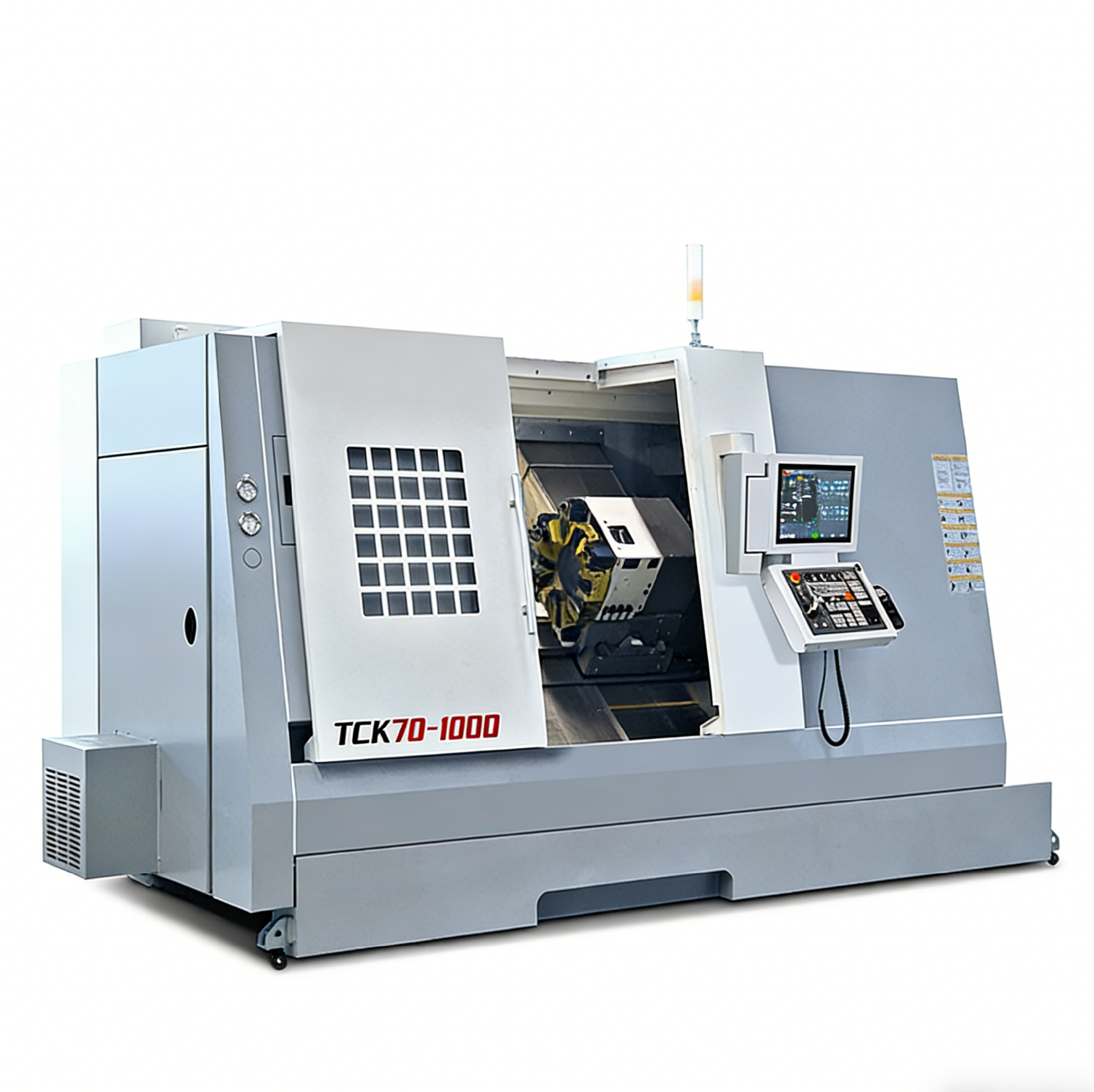

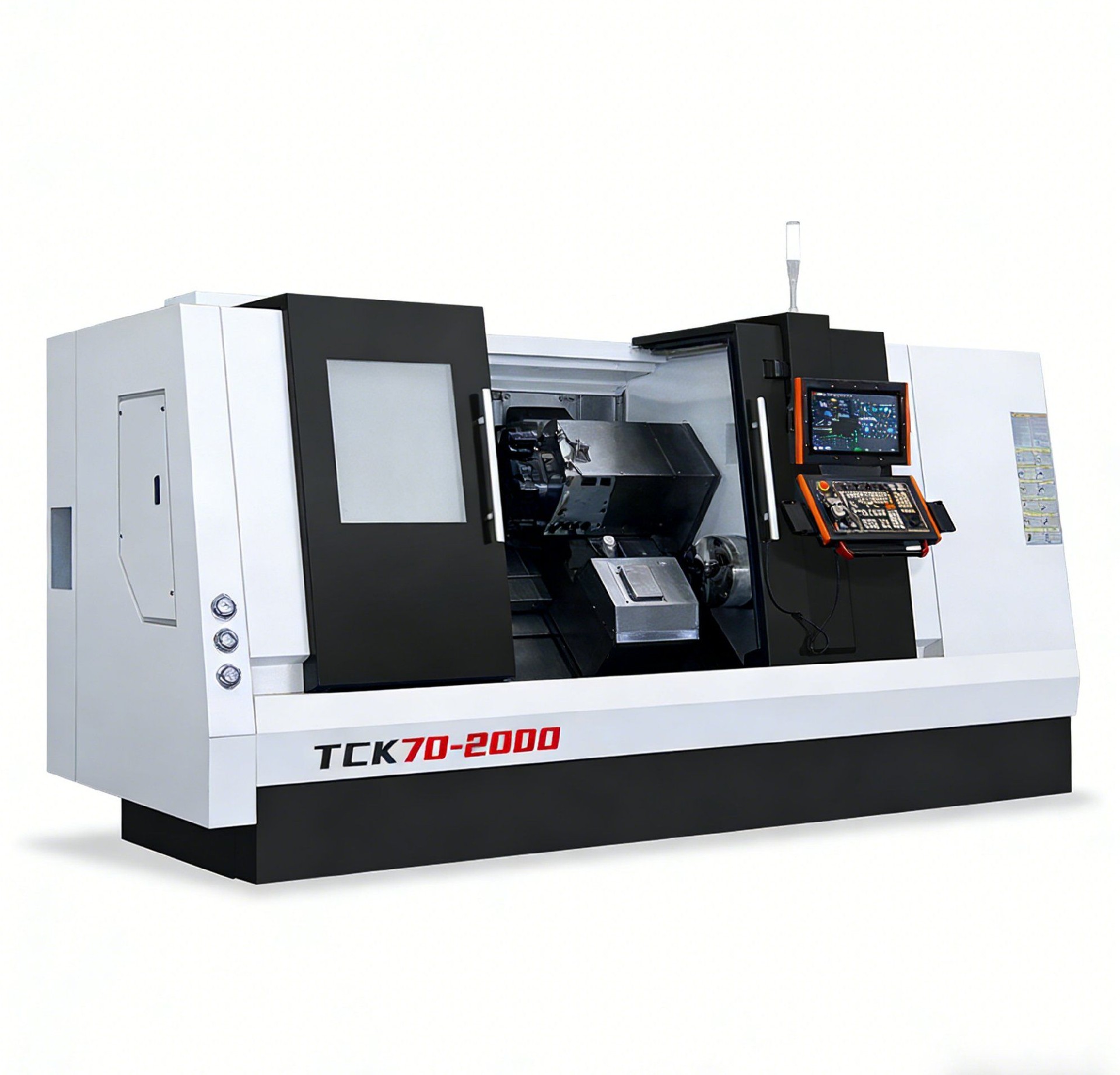

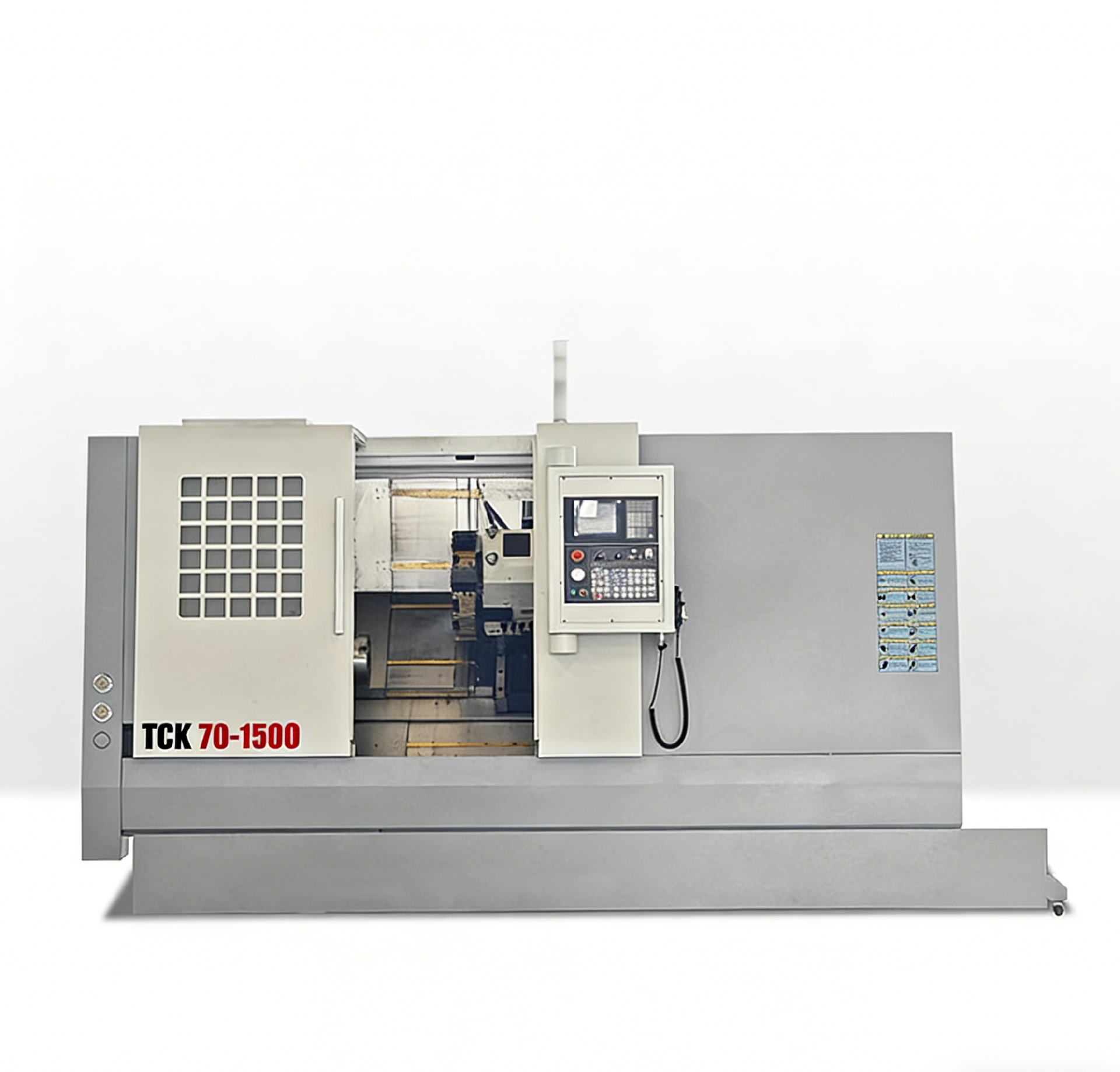

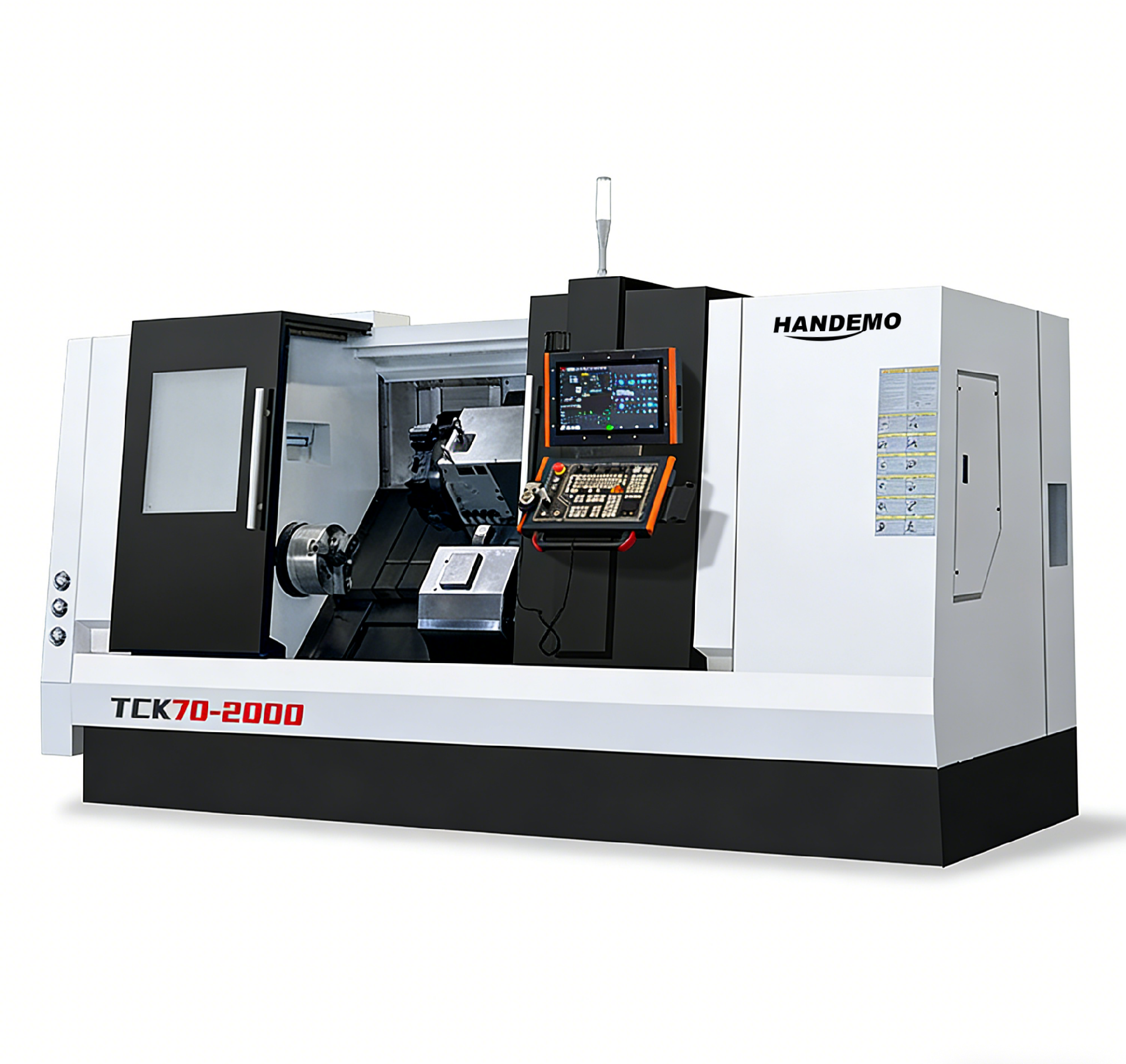

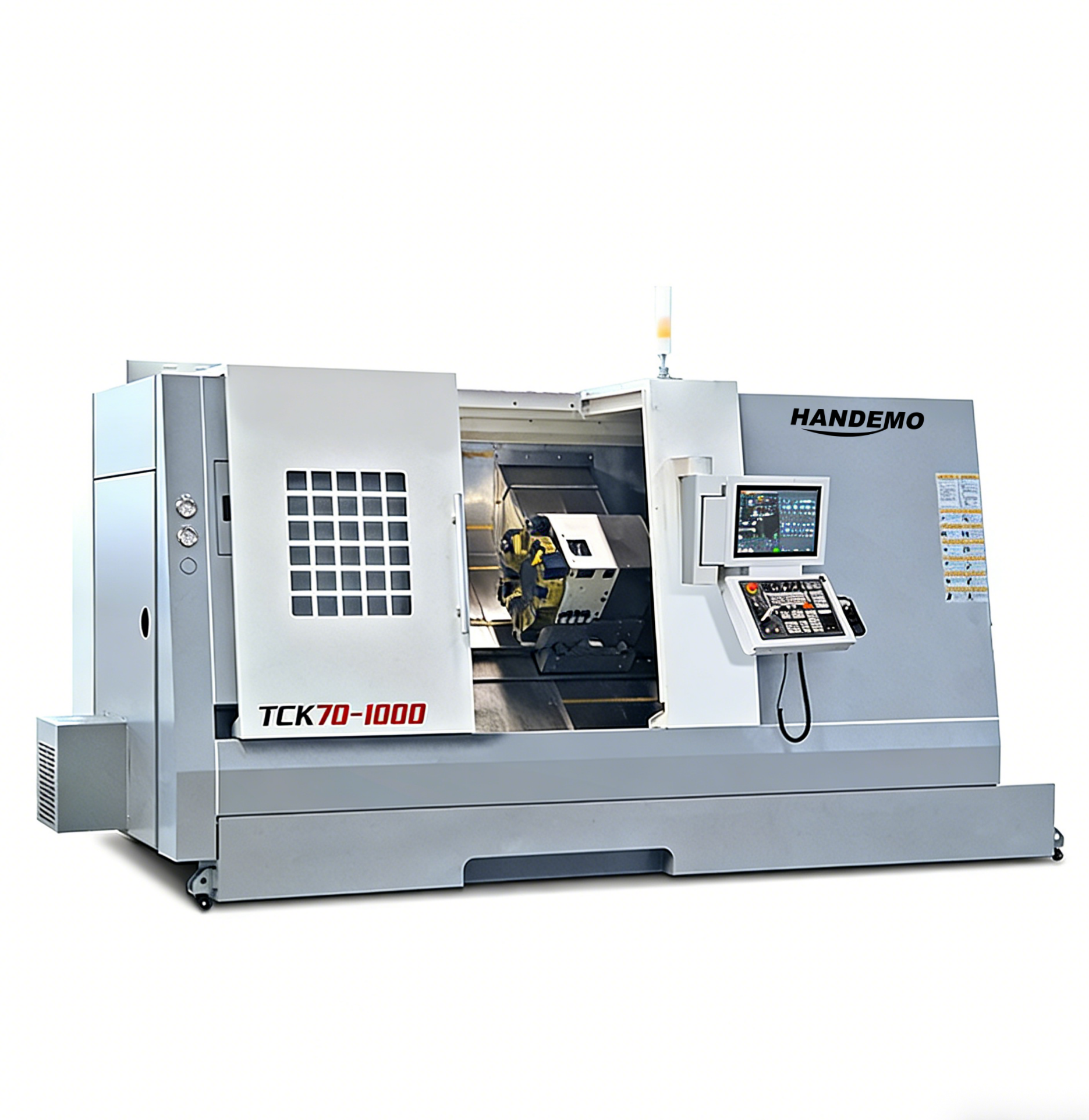

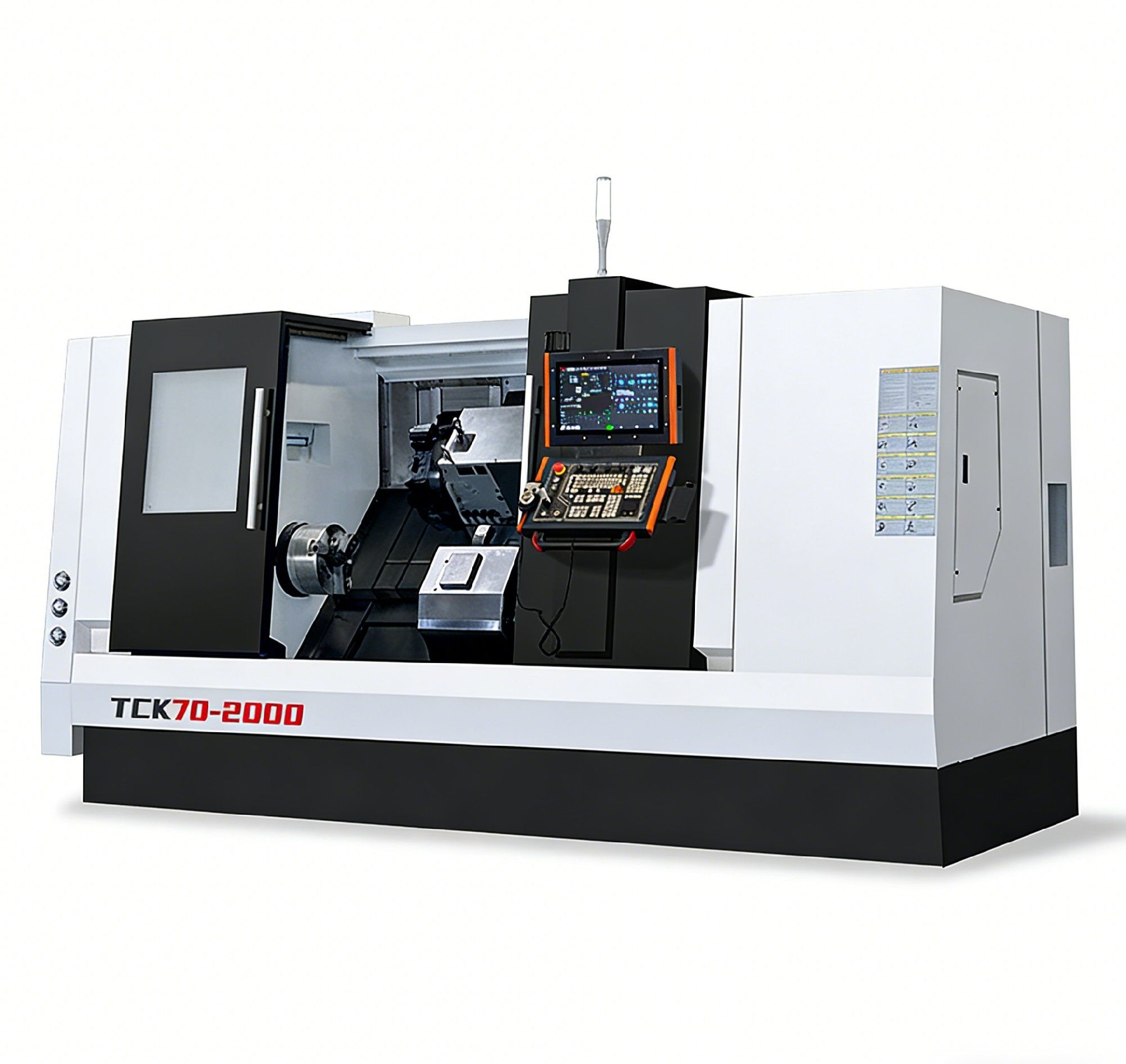

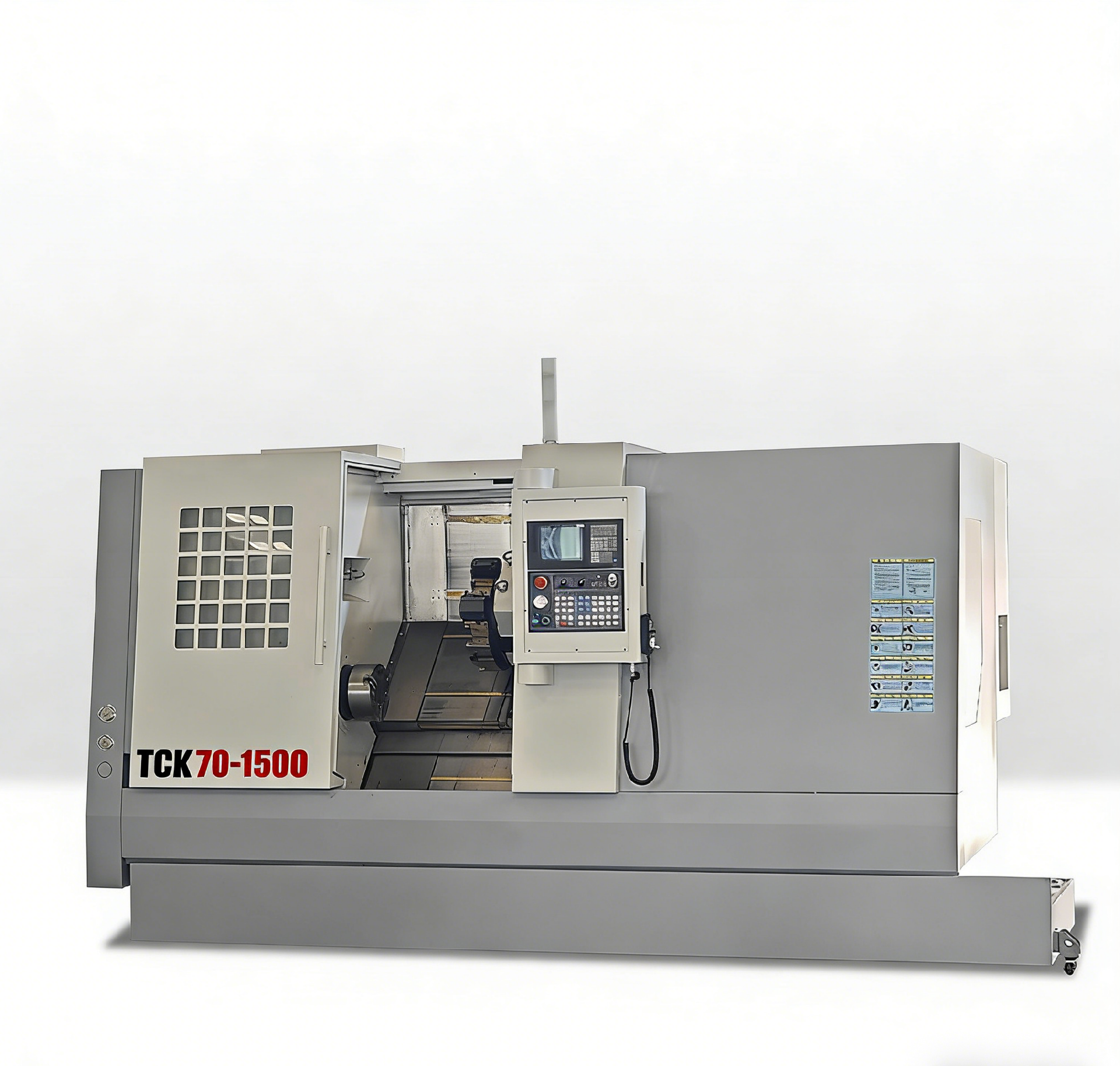

TCK70 General-Purpose High-Efficiency Model
*Large scale heavy cutting lathe series, overall 45 degree Slant bed A2-8/A2-11 large through-hole spindle

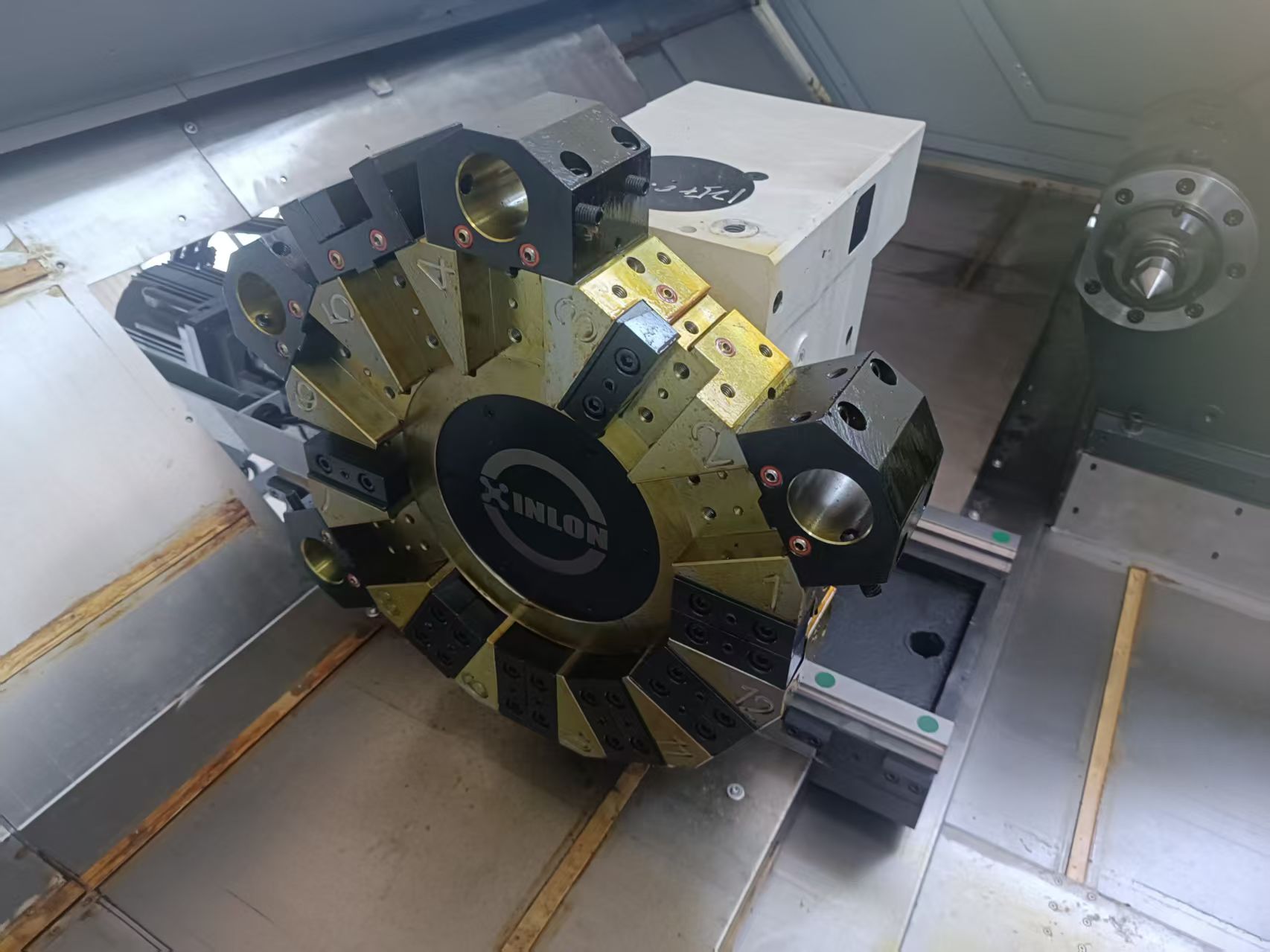

*This machine tool adopts a 12 station 125 center high turret, with a larger turret span and a single 12mm cutting tool
*Max. cutting length is 1000~3000mm
*This machine tool adopts a 12 station 125 center high turret, with a larger turret span and a single 12mm cutting tool
*Max. cutting length is 1000~3000mm
Product Details
Product Parameters
| Speicifications | TCK70-1500 | TCK70-2000 | TCK70-3000 |
| Max. swing over bed(mm) | 720 | 720 | 720 |
| Max. turning length(mm) | 1500 | 2000 | 3000 |
| Max. turning diameter(mm) | 500 | 630 | 630 |
| Max. swing over cross slide(mm) | 420 | 420 | 420 |

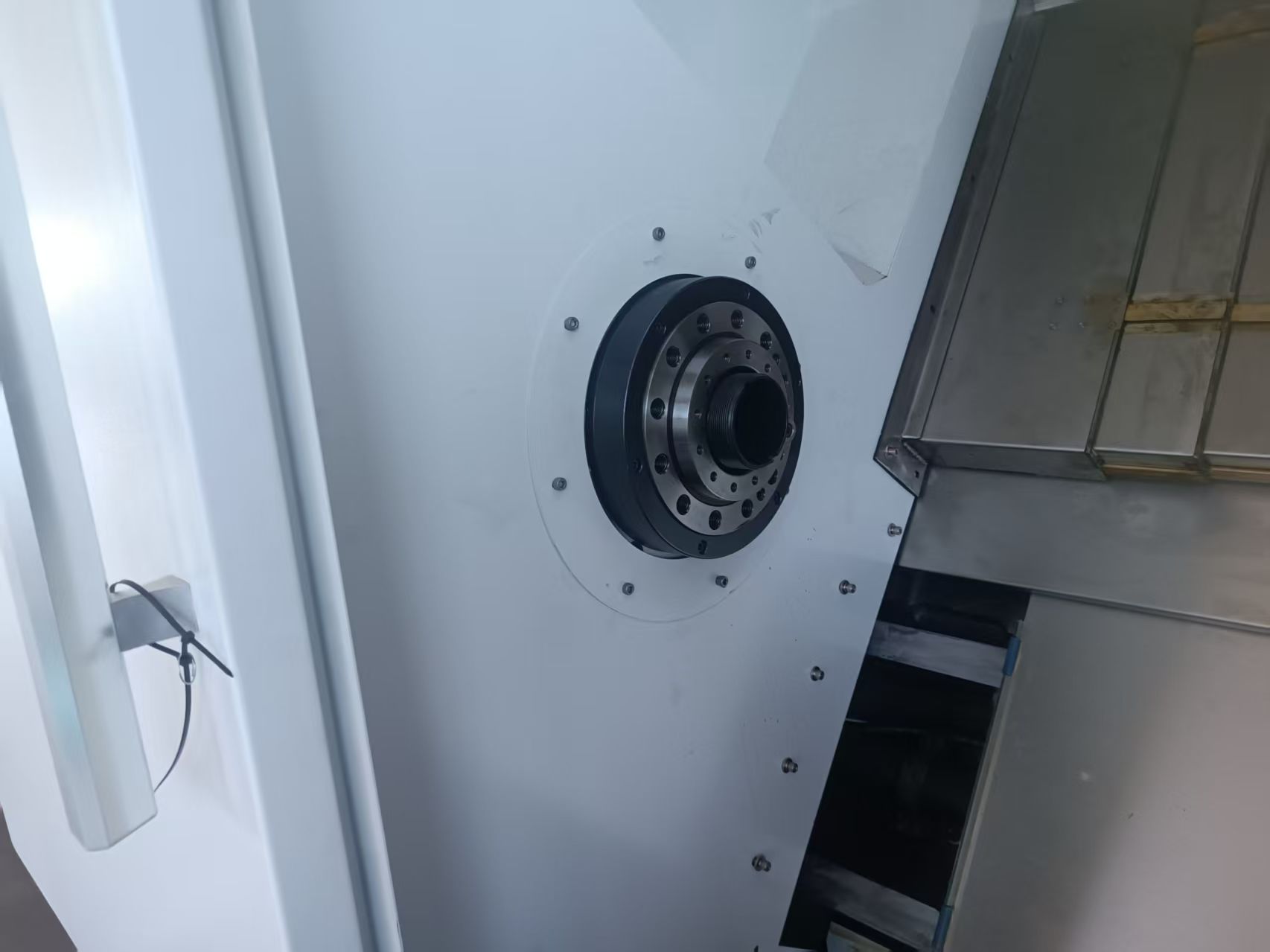

| Spindle nose type / code | A2-8/A2-11 | A2-8/A2-11 | A2-8/A2-11 |
| Spindle bore diameter(mm) | 80 | 120 | 120 |
| Max. bar capacity(mm) | 70 | 90 | 90 |
| Spindle motor output power（KW） | 18.5 | 18.5 | 18.5 |
| Rapid traverse – X‑axis（m/min） | 12 | 10 | 10 |
| Rapid traverse – Z-axis（m/min） | 16 | 10 | 10 |
| Travel – X‑axis(mm) | 250 | 320 | 320 |
| Travel – Z‑axis(mm) | 1520 | 2050 | 3050 |

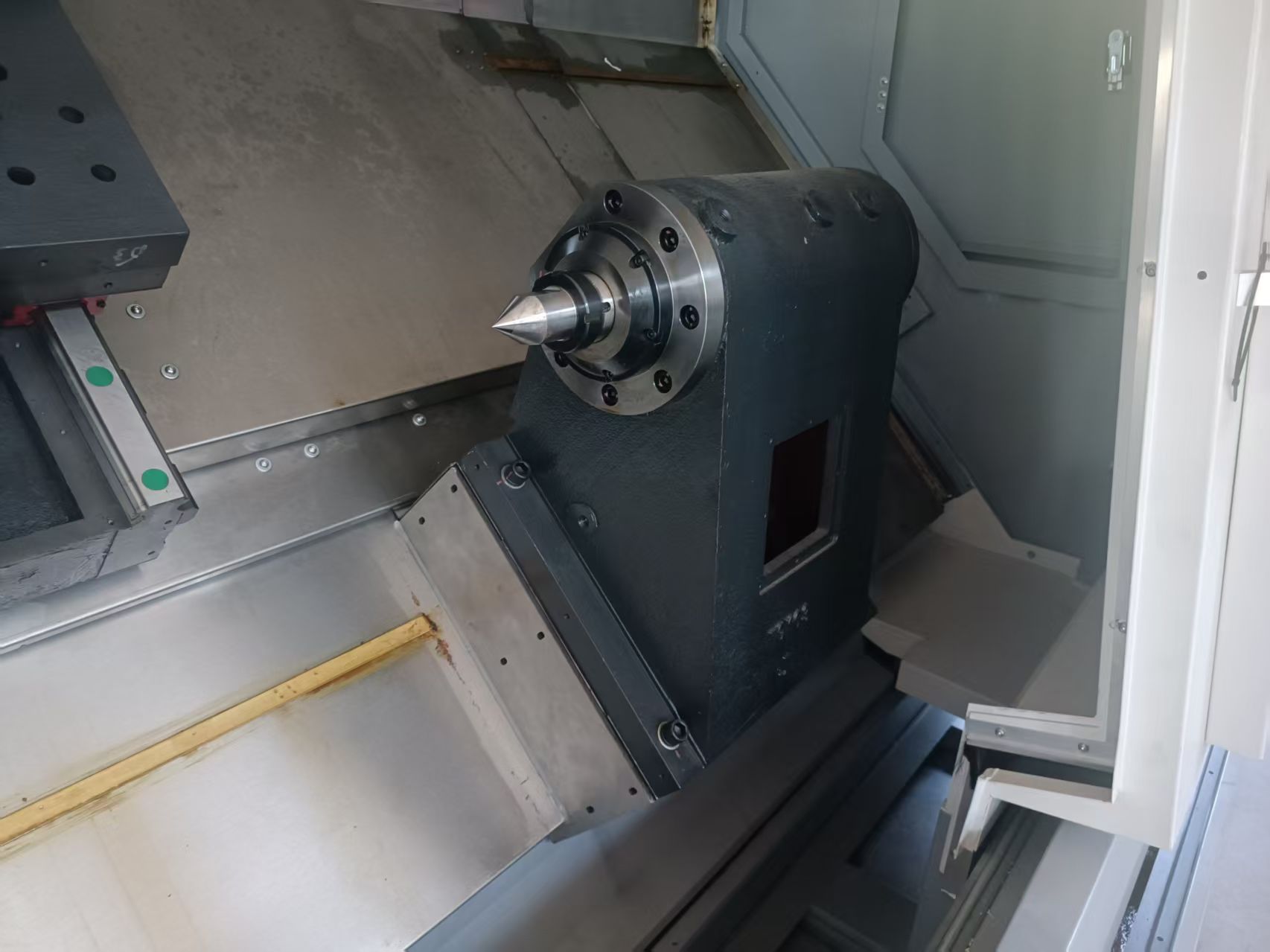

| Tailstock travel(mm) | 1400 | 1950 | 2800 |
| Tailstock quill diameter(mm) | 110 | 110 | 110 |
| Tailstock quill stroke(mm) | 100 | 100 | 100 |
| Approx. gross weight(mm) | 8500 | 9500 | 11000 |
