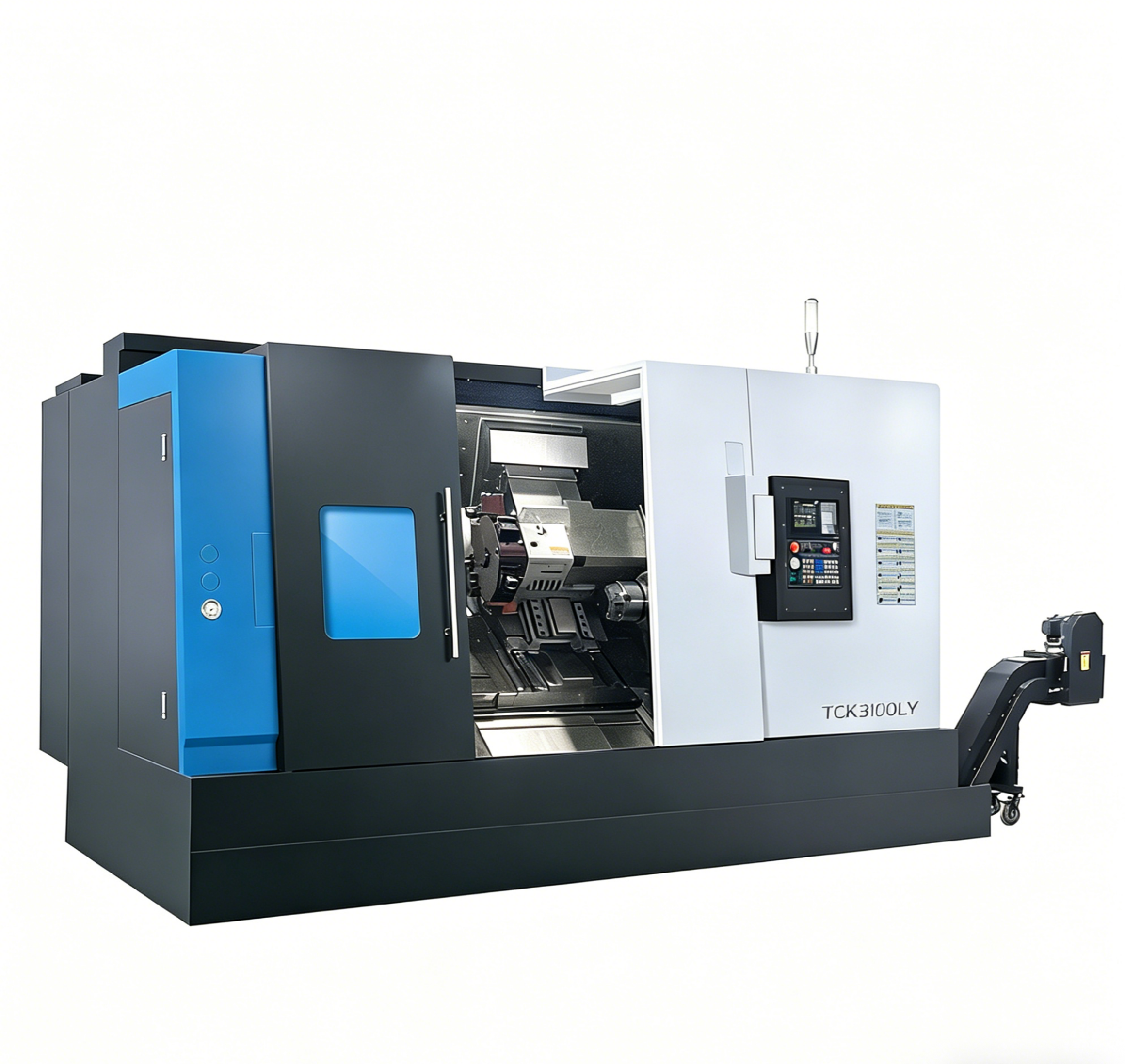

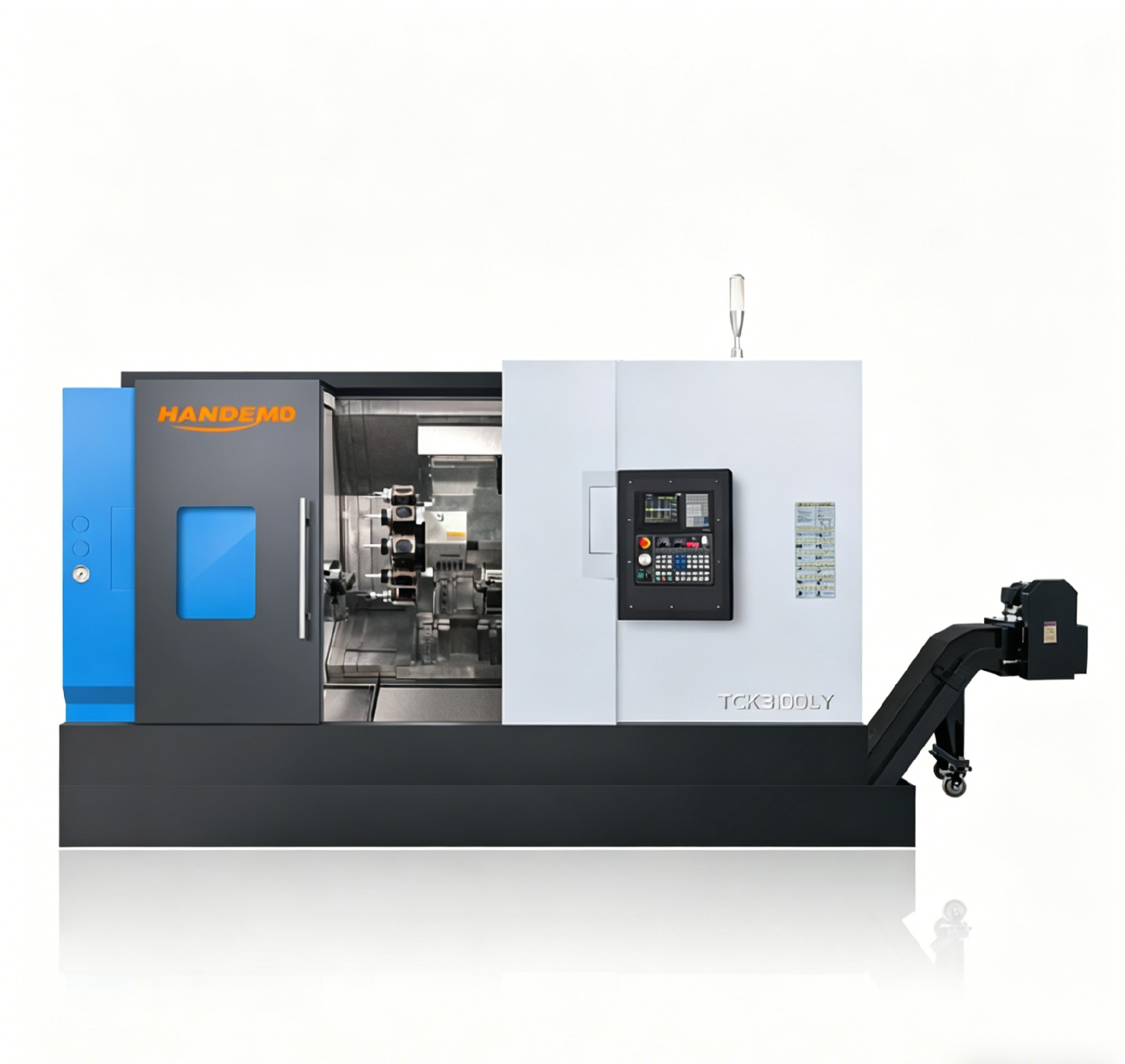

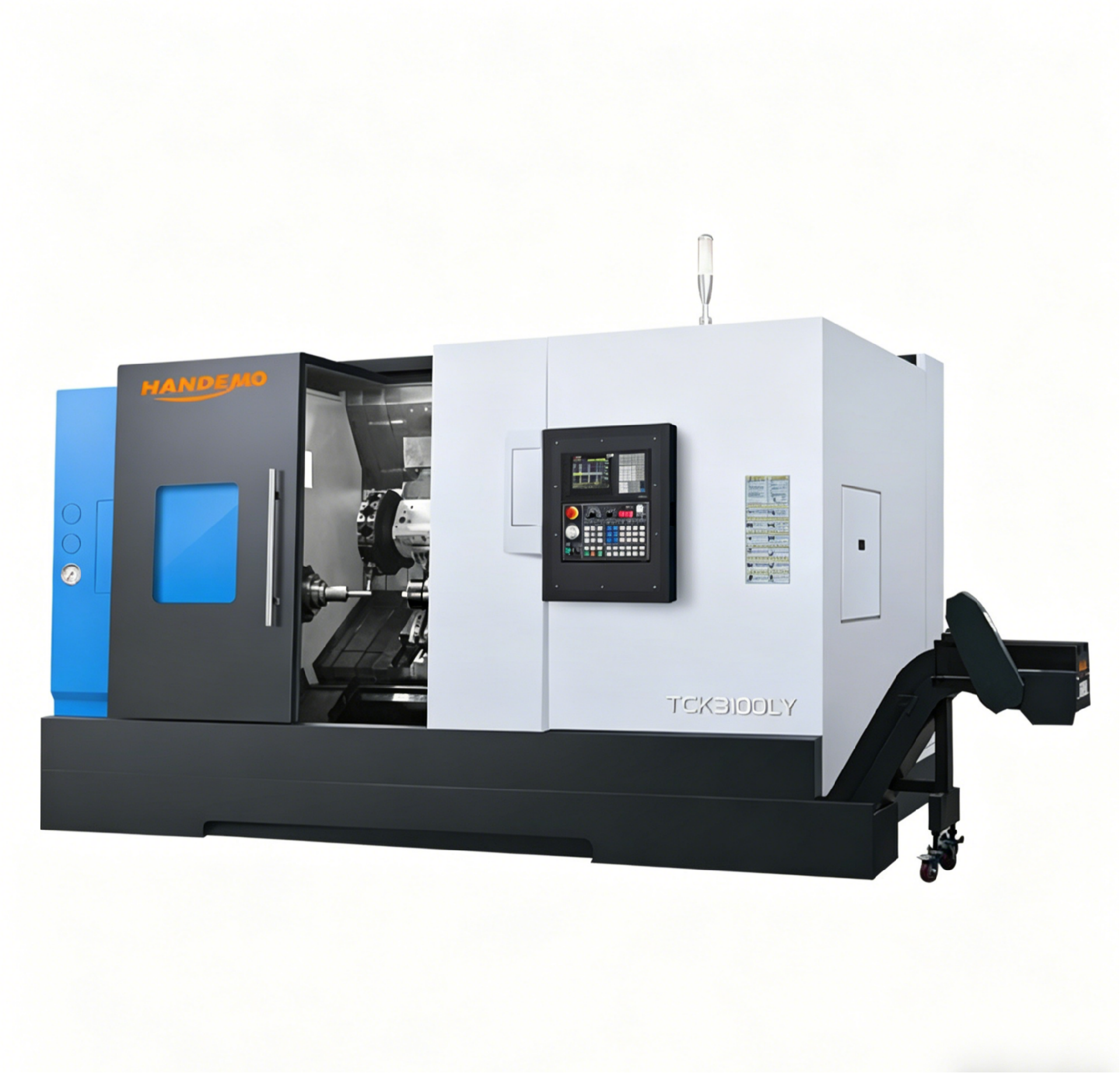

TCK3100LY CNC Mill-Turn Machine
*Max. swing over bed 750 mm, max turning length 1000 mm, max turning diameter 500 mm, standard turning diameter 380 mm, swing over cross slide 400 mm
*Spindle nose type A2-8, spindle bore 85 mm, max bar capacity 75 mm
*X-axis travel 400 mm, Z-axis travel 1050 mm, Y-axis travel ±100 mm, X/Y/Z rapid traverse 12/12/16 m/min
*Approx. gross weight 8000 kg
*Spindle nose type A2-8, spindle bore 85 mm, max bar capacity 75 mm
*X-axis travel 400 mm, Z-axis travel 1050 mm, Y-axis travel ±100 mm, X/Y/Z rapid traverse 12/12/16 m/min
*Approx. gross weight 8000 kg
Product Details
Product Parameters
| Speicifications | TCK3100LY |
| Max. swing over bed(mm) | 750 |
| Max. turning length(mm) | 1000 |
| Max. turning diameter(mm) | 500 |
| Standard turning diameter(mm) | 380 |
| Max. swing over cross slide(mm) | 400 |
| Spindle nose type / code | A2-8 |
| Spindle bore diameter(mm) | 85 |
| Max. bar capacity(mm) | 75 |
| X-axis rapid traverse(m/min) | 12 |
| Y-axis rapid traverse(m/min) | 12 |
| Z-axis rapid traverse(m/min) | 16 |
| X-axis travel(mm) | 400 |
| Z-axis travel(mm) | 1050 |
| Y-axis travel(mm) | ±100 |
| Approx. gross weight(KG) | 8000 |
