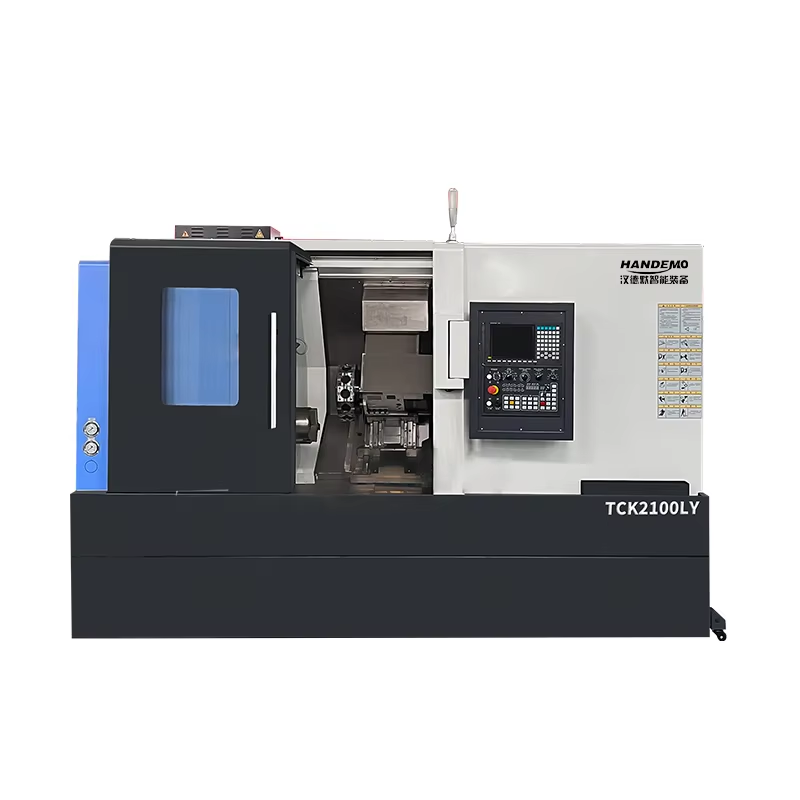

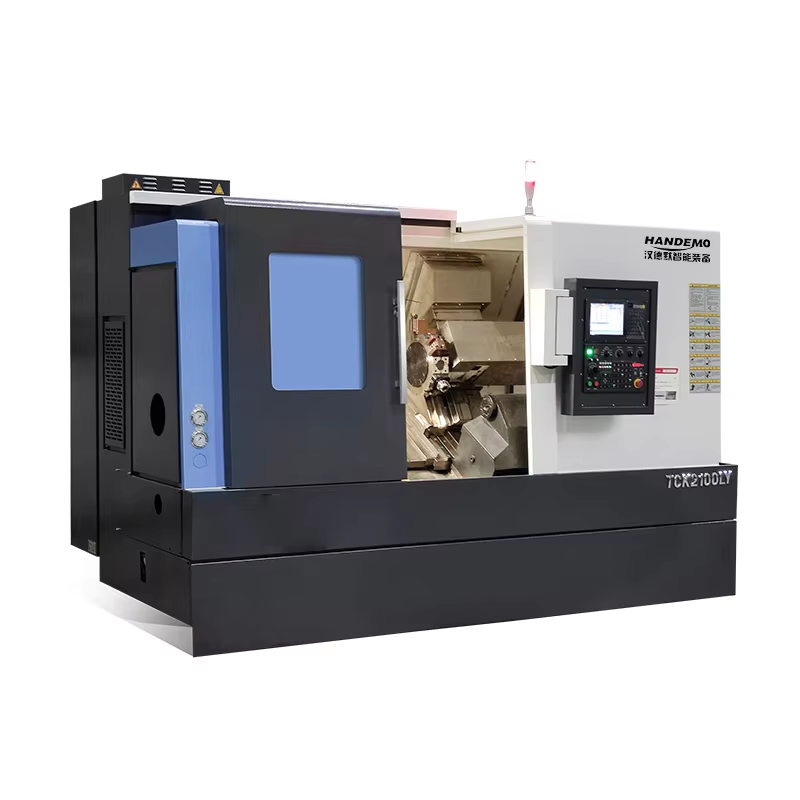

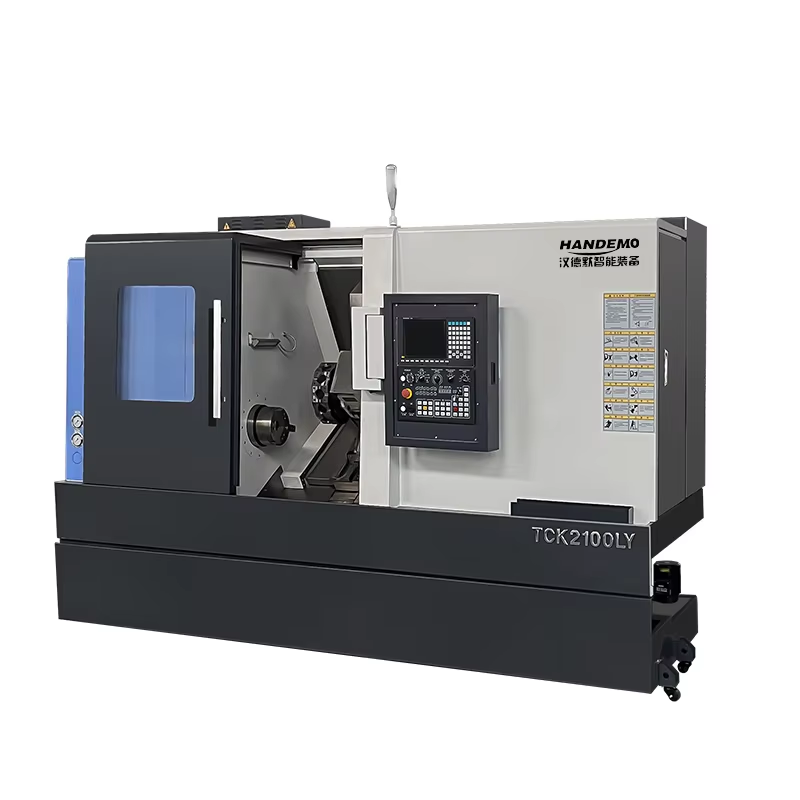

2100LY CNC Mill-Turn Machine
* Interpolation Y-axis turning and milling composite

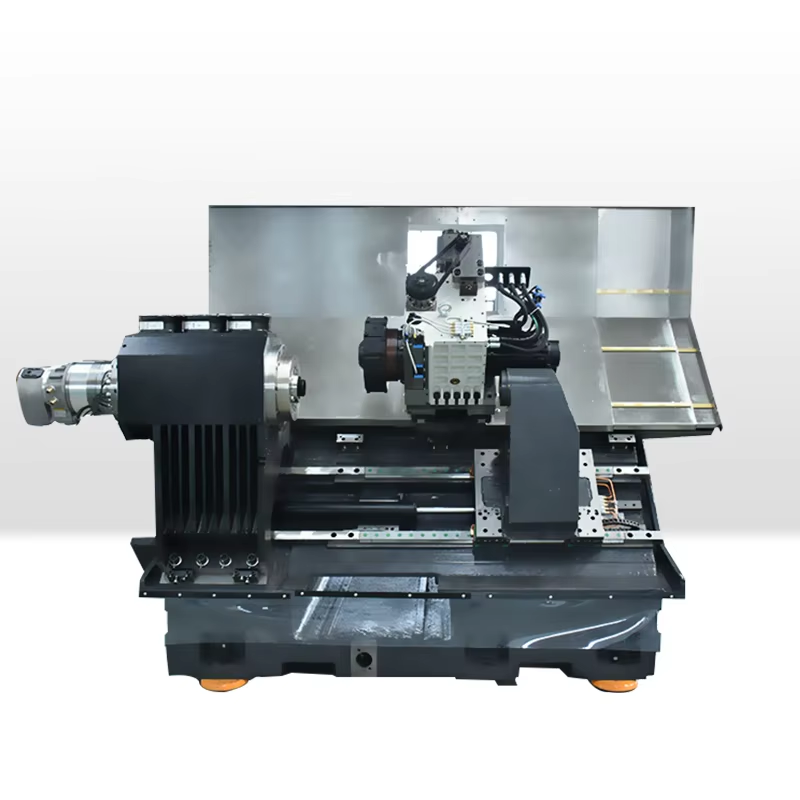

* The turret is directly installed on the pallet, with a low cutting center of gravity and high rigidity
allowing for single-sided cutting of 7-10mm.
* The turret is directly installed on the pallet, with a low cutting center of gravity and high rigidity
allowing for single-sided cutting of 7-10mm.
Product Details
Product Parameters
| Speicifications | TCK2100LY |
| Max. turning diameter on bed(mm) | 650 |
| Max. cutting length(mm) | 500 |
| Max. cutting diameter(mm) | 350 |
| Spindle nose type | A2-6 |
| Main shaft hole diameter(mm) | 65 |
| Spindle speed range（r/min） | 4500/5000 |
| Spindle motor power（KW） | 30/11 |
| X-axis travel(mm) | 280 |
| Z-axis travel(mm) | 550 |
| Y-axis travel(mm) | ±50 |
| Knife holder form | 12 station power knife tower |
| Machine size (mm) | 3293L*1951W*2329H |
| Machine weight (KG) | 4000 |
