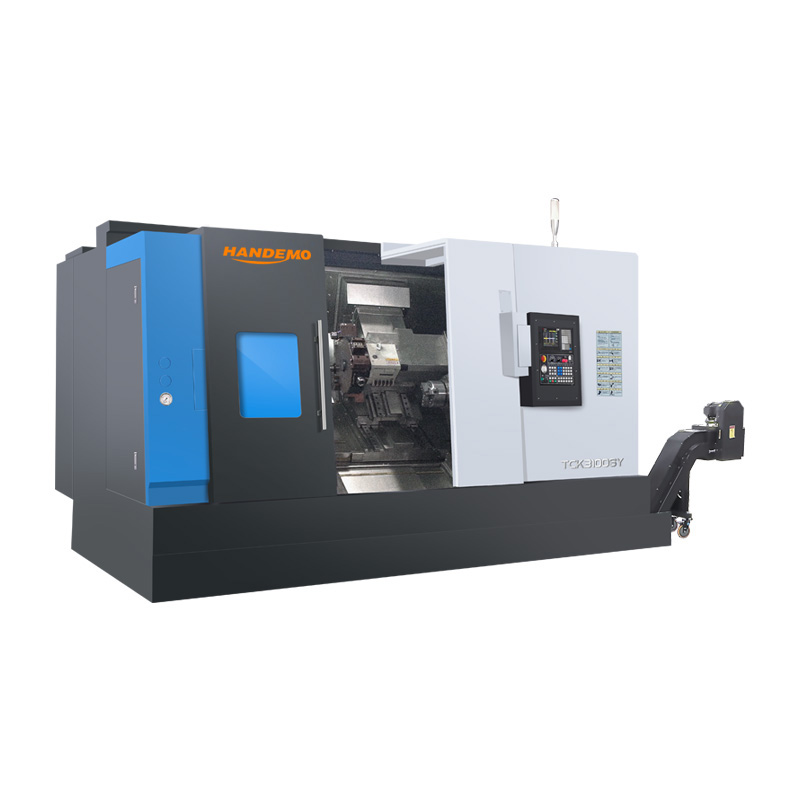

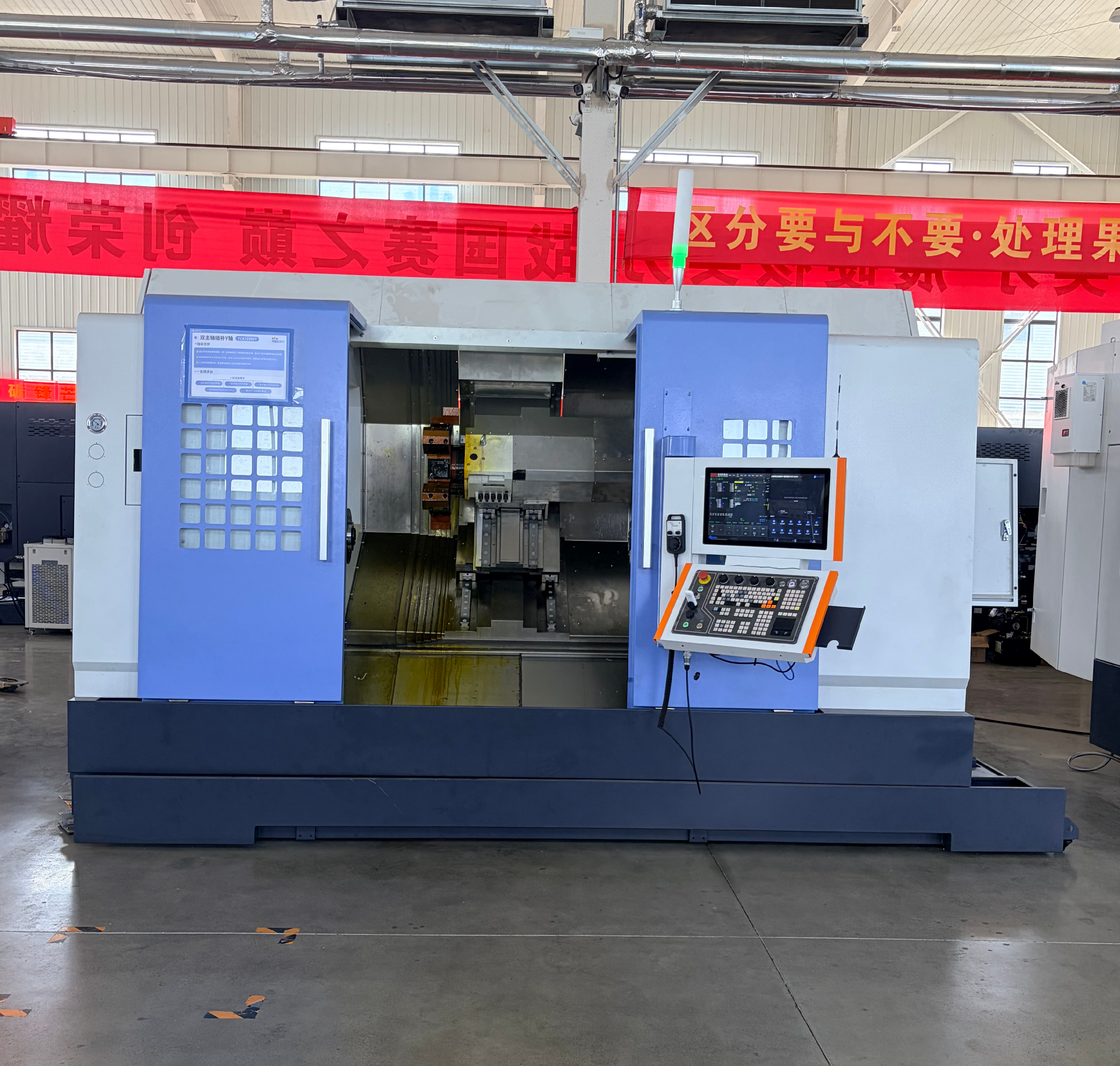

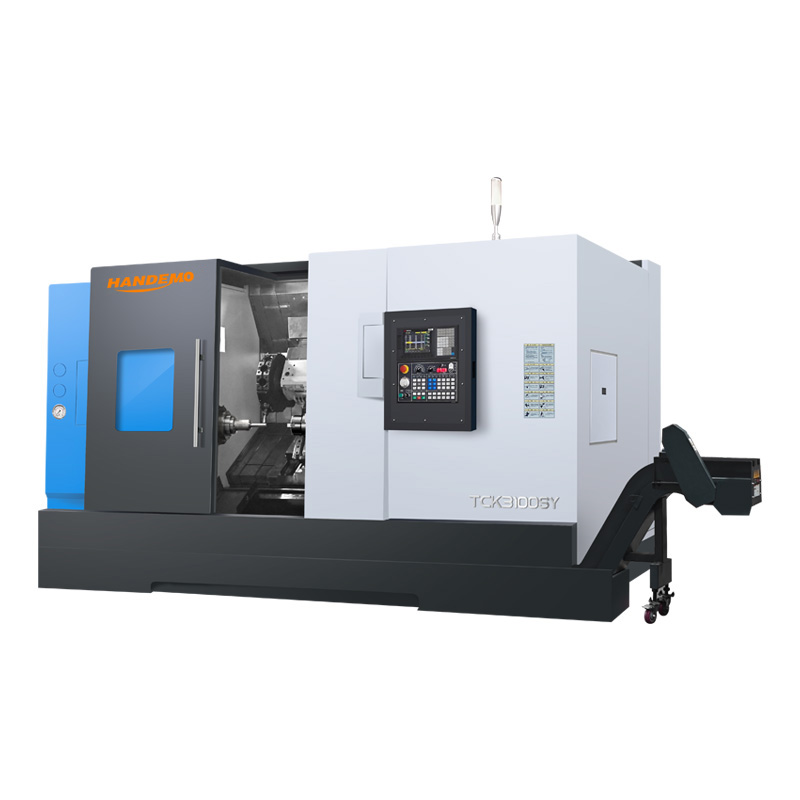

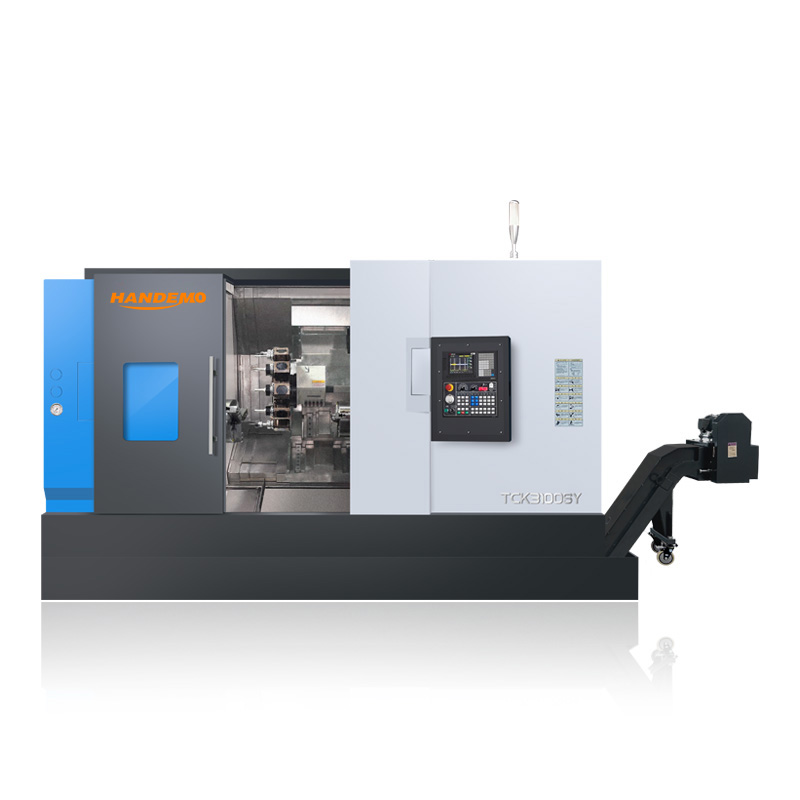

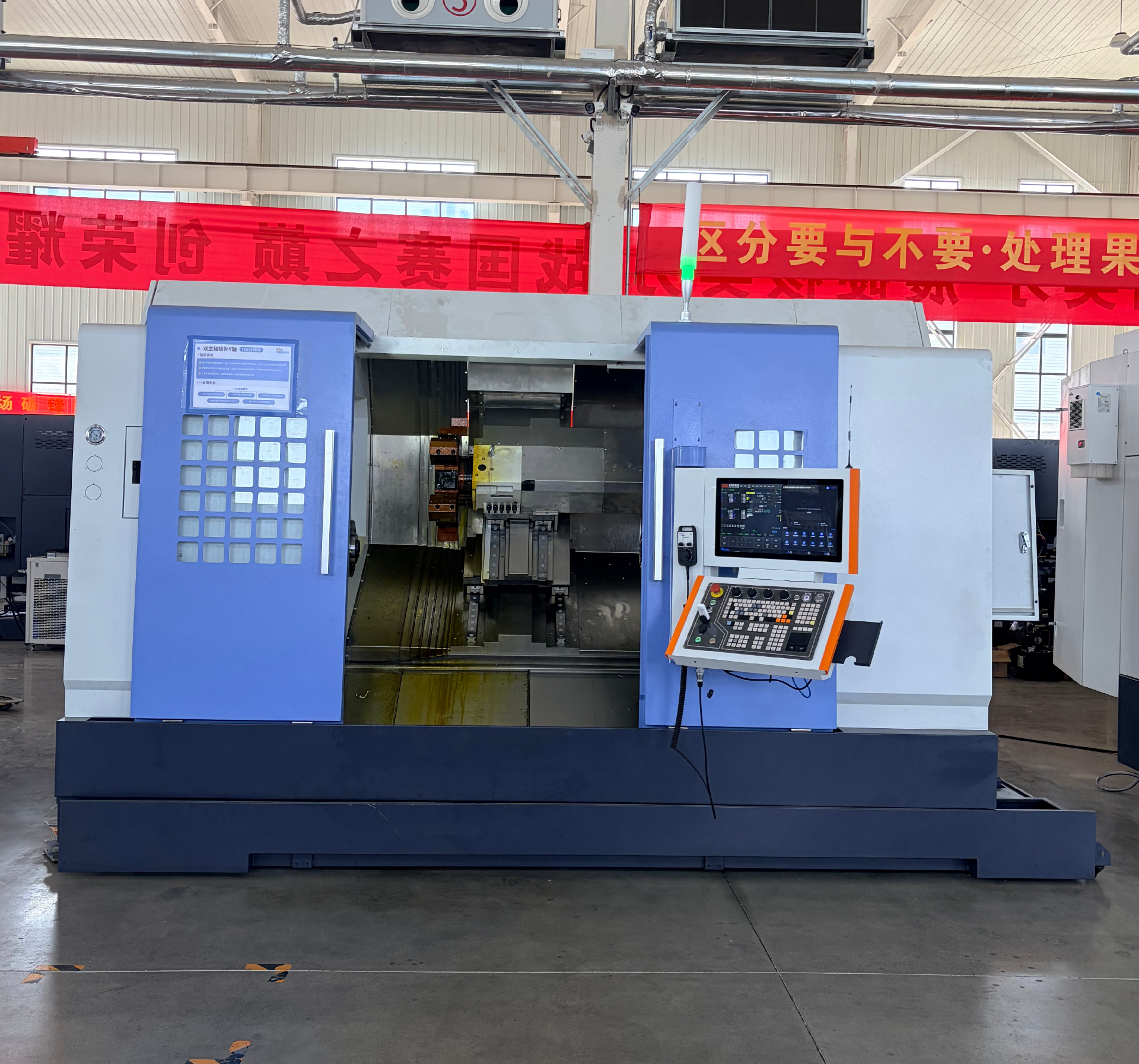

3100SY CNC Mill-Turn Machine
* Large scale dual spindle interpolation Y-axis turning and milling composite. Cutting diameter 500, cutting length 1000
* The first spindle A2-8 and the second spindle A2-6 have a dynamic docking accuracy of 5u, and can complete full sequence machining such as turning, milling, planing, grinding, drilling, and gear hobbing with one clamping;
* The first spindle A2-8 and the second spindle A2-6 have a dynamic docking accuracy of 5u, and can complete full sequence machining such as turning, milling, planing, grinding, drilling, and gear hobbing with one clamping;
Product Details
Product Parameters
| Speicifications | TCK3100SY |
| Max. turning diameter on bed(mm) | 750 |
| Max. cutting length(mm) | 1000 |
| Max. cutting diameter(mm) | 500 |
| Spindle nose type | A2-8(6) |
| Main shaft hole diameter(mm) | 85 |
| Spindle speed range（r/min） | 3000 |
| Sub-Spindle speed range（r/min） | 4000 |
| Spindle motor power（KW） | 37 |
| Sub-Spindle motor power（KW） | 30 |
| X/Y/Z-axis fast movement speed(mm) | 12/12/16 |
| X-axis travel(mm) | 400 |
| Z-axis travel(mm) | 1350 |
| Y-axis travel(mm) | ±100 |
| Standard knife holder form | 12 station power knife tower |
| Machine size (mm) | 4450L*2320W*2713H |
| Machine weight (KG) | 10000 |
