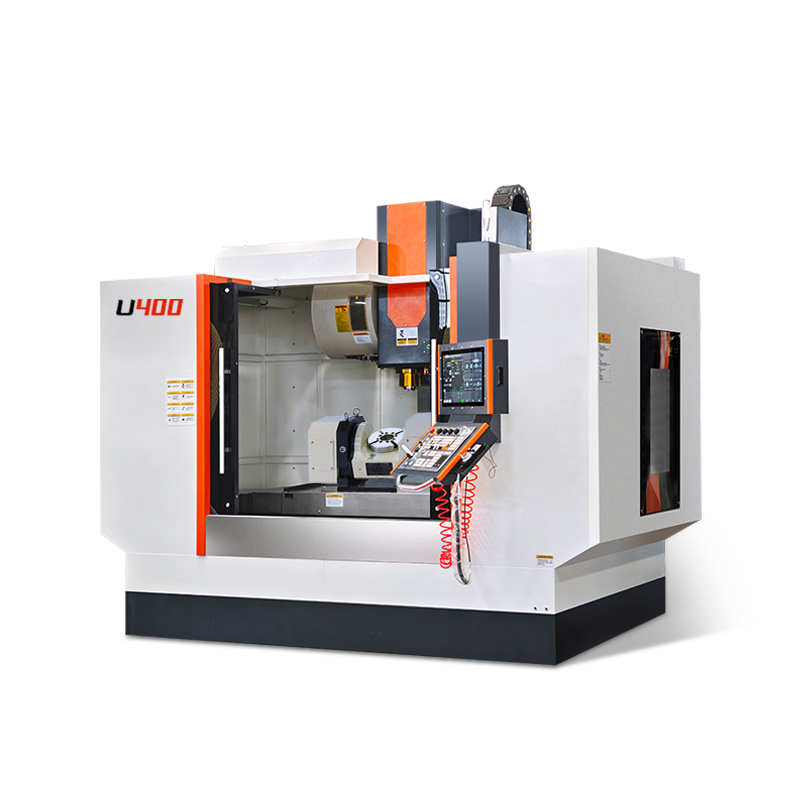

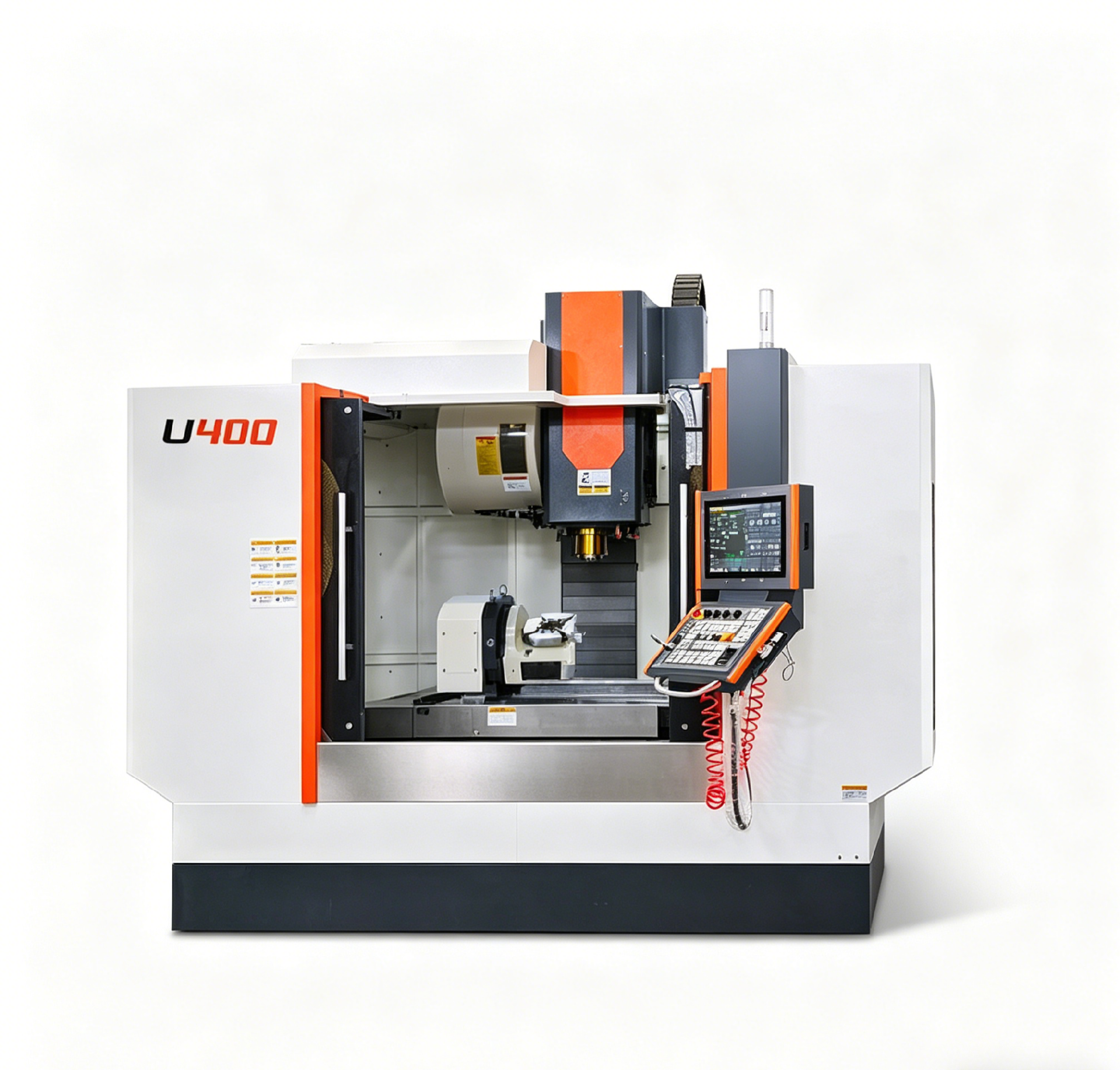

U400 5-Axis Turning and Milling Machine
*X/Y/Z axis travel: 1300/700/750 mm, machining range 610×500 mm
*Rotary table with dual direct drive, mounting flange diameter Ø400 mm, center hole Ø80H7/through hole Ø60 mm, max load 200 kg, diameter 150 mm
*Direct-drive mechanical spindle, max speed 12000 rpm, output power 11 kW
*Rotary table with dual direct drive, mounting flange diameter Ø400 mm, center hole Ø80H7/through hole Ø60 mm, max load 200 kg, diameter 150 mm
*Direct-drive mechanical spindle, max speed 12000 rpm, output power 11 kW
Product Details
Product Parameters
Machine model: U400 |
1.1 X-axis travel: 1300mm 1.2 Y-axis travel: 700mm 1.3 Z-axis travel: 750mm 1.4 Machining range: 610*500 |

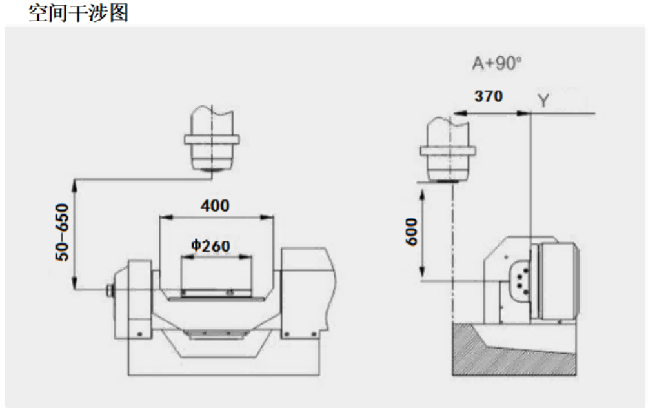

Rotary table (dual direct drive) 2.1 Mounting flange diameter: Φ400 2.2 Center hole / through hole diameter: Φ80H7/Φ60 2.3 Max load capacity: 200kg 2.4 Diameter：150mm |
Direct-drive mechanical spindle 3.1 Max speed: 12000rpm 3.2 Output power: 11kW 3.3 Tool holder type: BBT40 |
Rapid traverse 4.1 X, Y, Z speed: 24m/min 4.2 A-axis speed: 80rpm 4.3 C-axis speed: 150rpm |
Cutting feedrate 5.1 X, Y, Z speed: 10m/min 5.2 A-axis speed: 4000mm/min 5.3 C-axis speed:10000mm/min |
