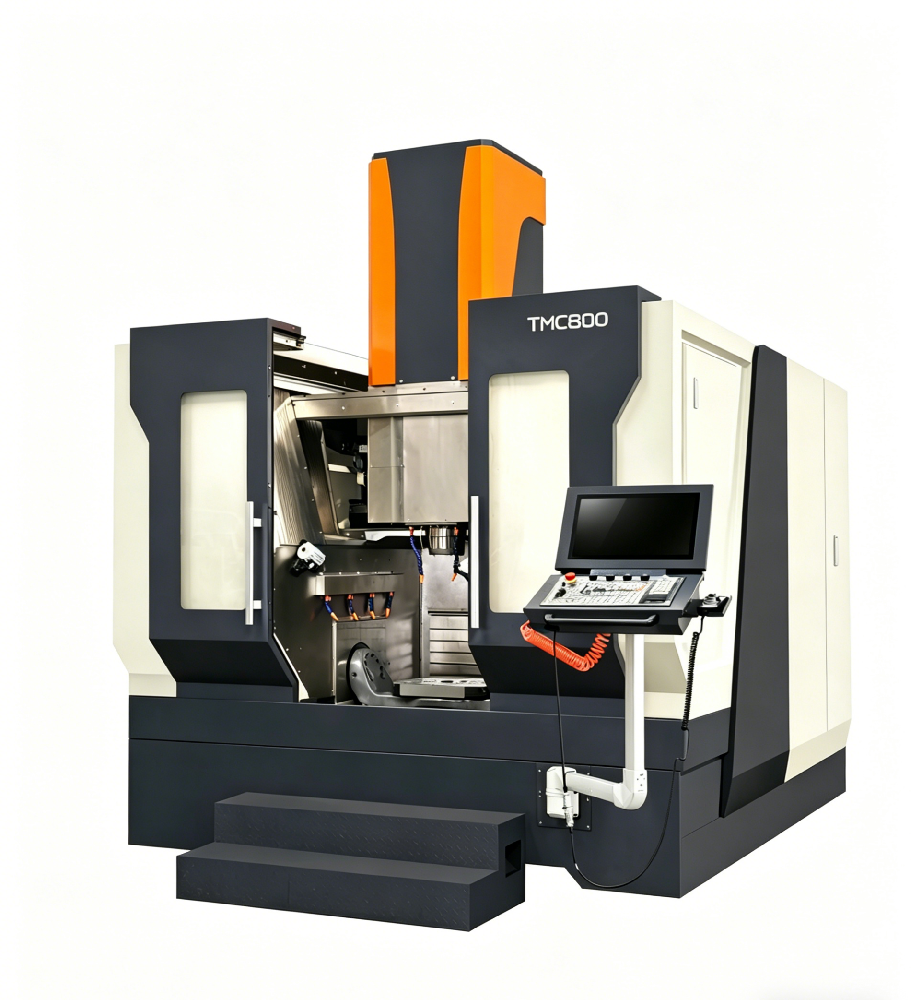

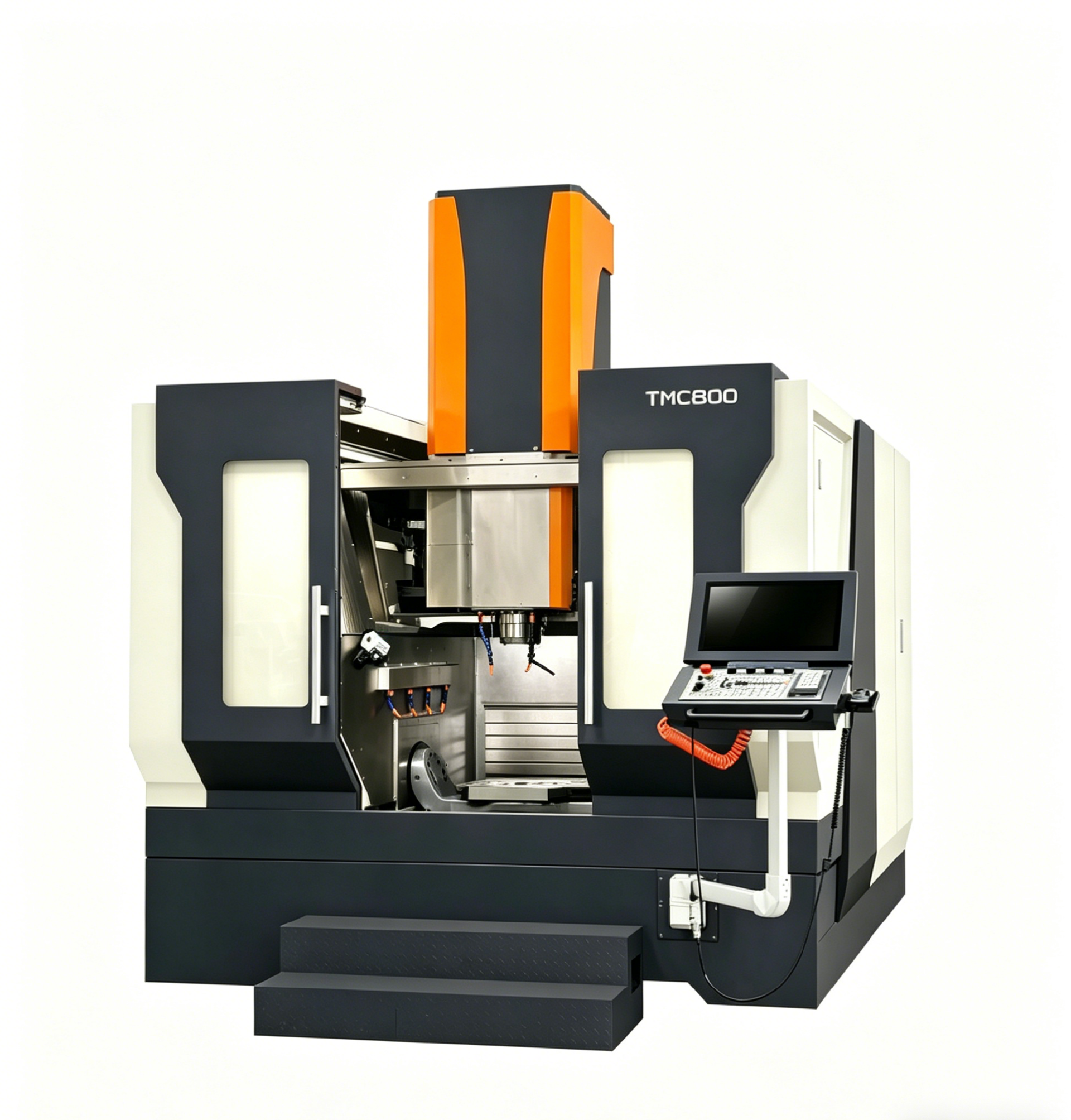

TMC800 5-Axis Turning and Milling Machine

5-Axis Turning and Milling Machine / High-Speed Precision Overhead Crane

*X/Y/Z axis travel: 850/1040/600 mm, A轴倾角±110°, C轴360°旋转
*Spindle taper HSK-T63, max spindle speed 15000 rpm
*Machine weight 11 T

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Product Parameters

Speicifications	TMC800
X-axis travel(mm)	850
Y-axis travel(mm)	1040 (including tool change stroke)
Z-axis travel(mm)	600
A-axis tilt range(deg)	±110°
C-axis rotation range	360°
Rotary table (C-axis) Table diameter(mm)	800
Rotary table (C-axis) Permissible load(kg)	500
Rotary table (C-axis) Max speed(rpm)	300
A-axis Max speed(rpm)	100
Spindle taper	HSK-T63
Max. spindle speed(r/min)	15000
Machine weight (T)	11
