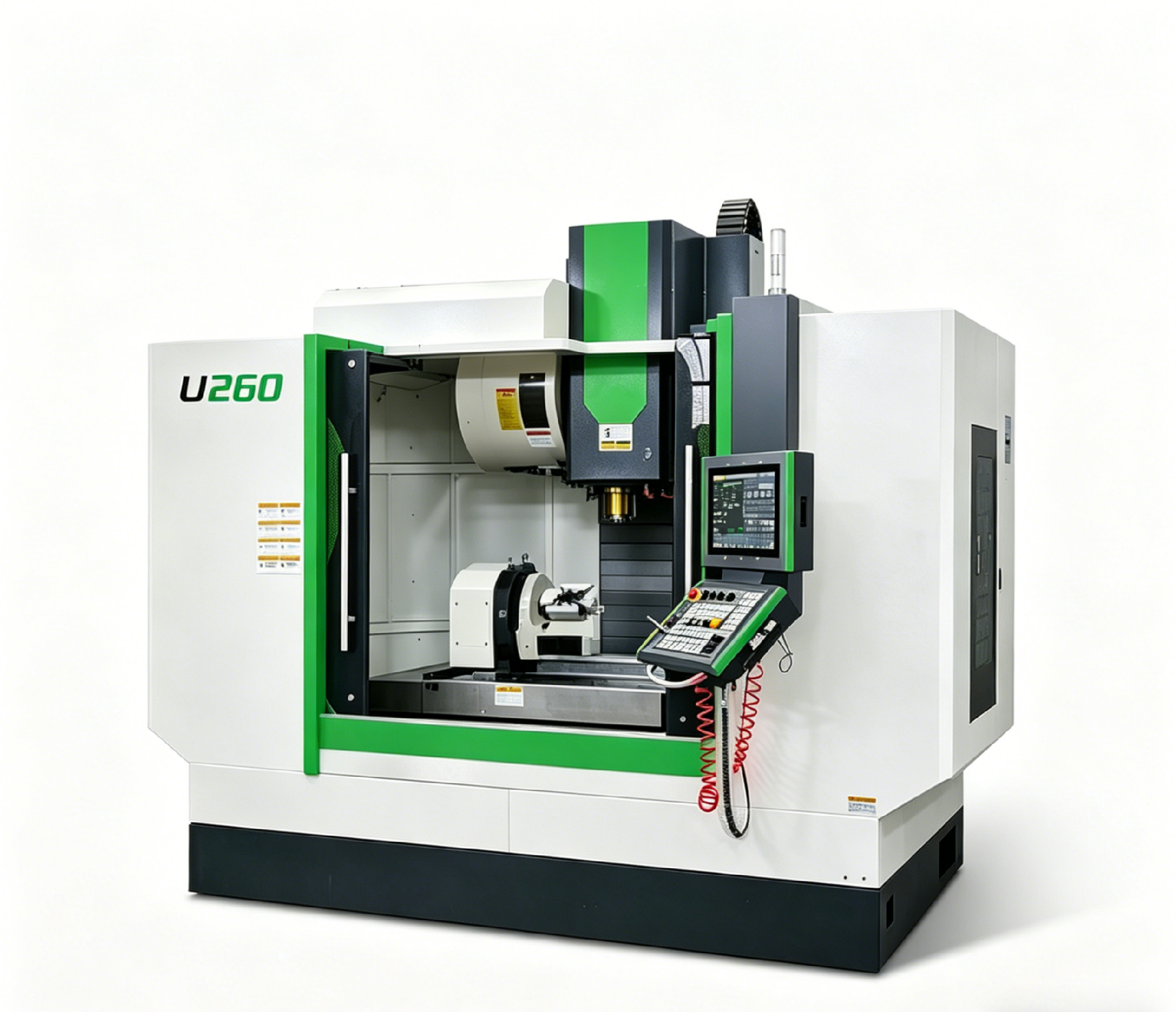

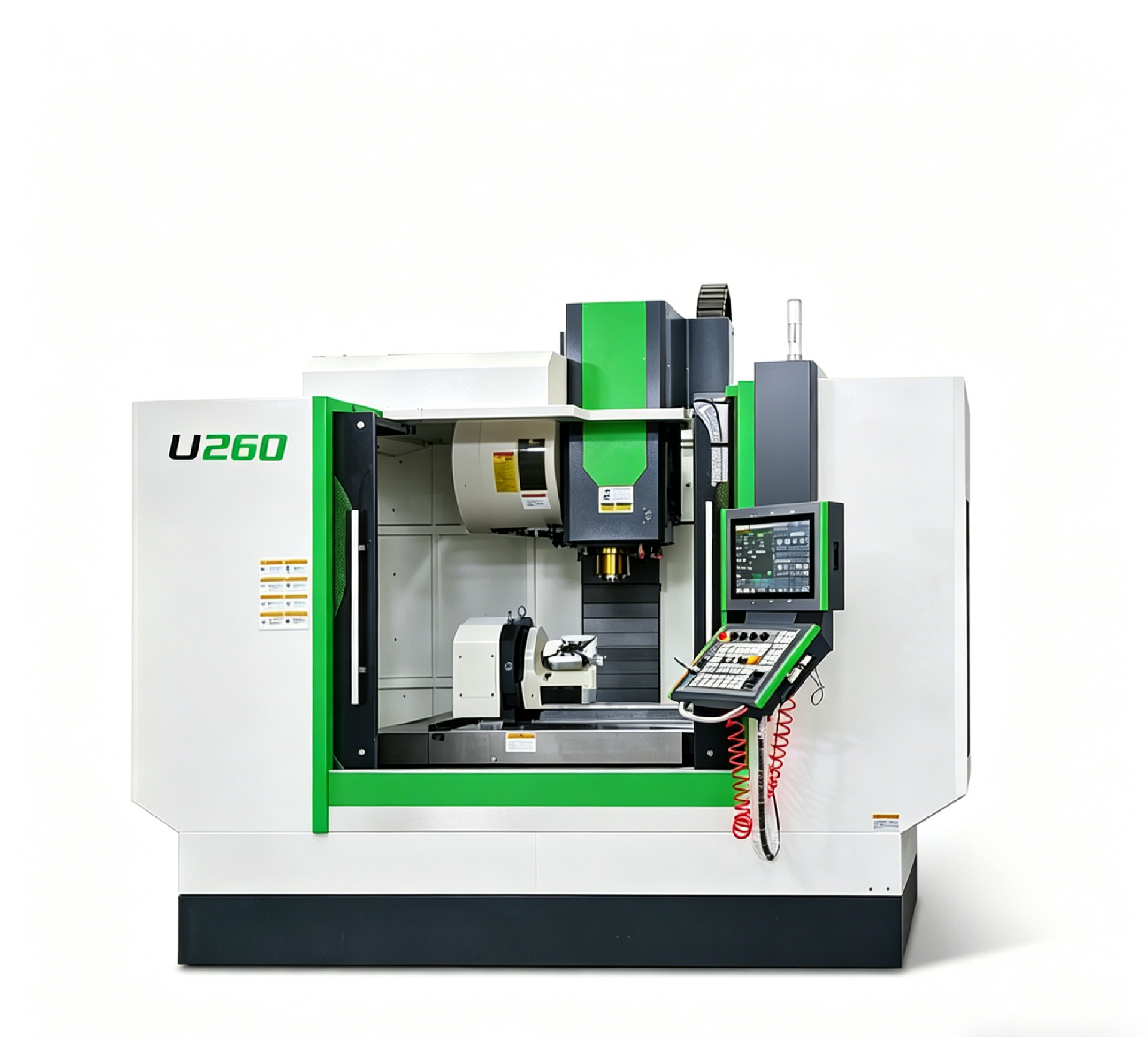

U260 5-Axis Turning and Milling Machine
5-Axis Turning and Milling Machine / Compact 5-axis Machining Center
*X/Y/Z axis travel: 850/600/600 mm, machining range 380×300 mm
*Rotary table with dual direct drive, flange diameter Φ260 mm, center hole Φ50 mm, max load 80 kg, diameter 150 mm
*Direct-drive mechanical spindle, max speed 12000 rpm, output power 11 kW, tool holder type BBT40
*Rotary table with dual direct drive, flange diameter Φ260 mm, center hole Φ50 mm, max load 80 kg, diameter 150 mm
*Direct-drive mechanical spindle, max speed 12000 rpm, output power 11 kW, tool holder type BBT40
Technical Specifications
Product Details Parameters
Product Details
Product Parameters
Machine model: U260 |
1.1 X-axis travel: 850mm 1.2 Y-axis travel: 600mm 1.3 Z-axis travel: 600mm 1.4 Machining range: 380*300 |
Rotary table (dual direct drive) 2.1 Mounting flange diameter: Φ260 2.2 Center hole / through hole diameter: Φ50 2.3 Max load capacity: 80kg 2.4 Diameter：150mm |
Direct-drive mechanical spindle 3.1 Max speed: 12000rpm 3.2 Output power: 11kW 3.3 Tool holder type: BBT40 |
Rapid traverse 4.1 X, Y, Z speed: 24m/min 4.1.2 A-axis speed: 150rpm 4.1.3 C-axis speed: 300rpm |
Cutting feedrate 5.1 X, Y, Z speed: 10m/min 5.2 A-axis speed: 4000mm/min 5.3 C-axis speed:10000mm/min |
