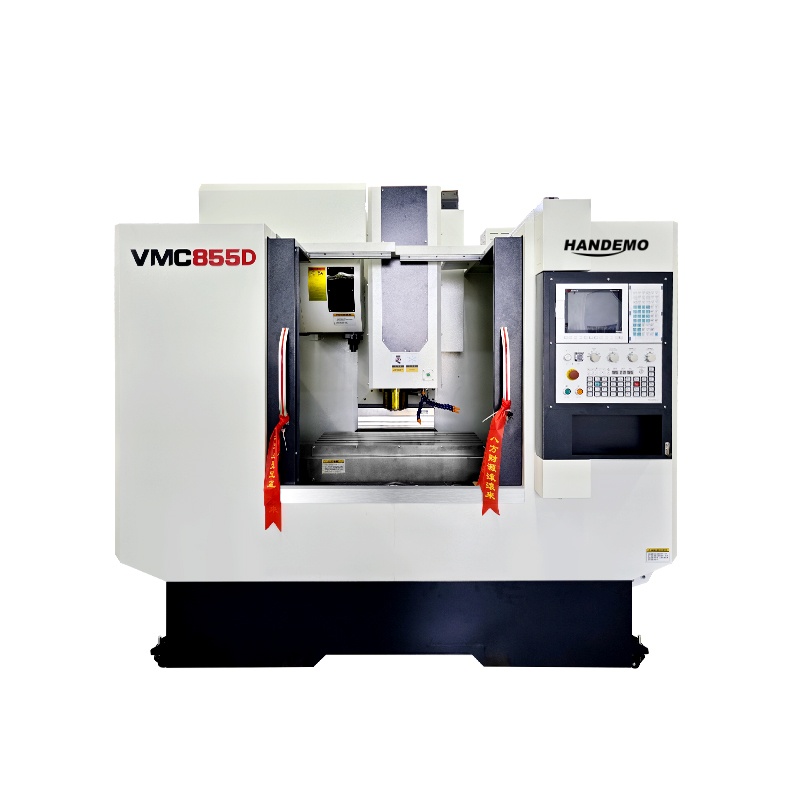

855D Vertical Machining Centers
*Table size 1000×550 mm, max. worktable load 600 kg
*Spindle taper hole BT40φ150, spindle speed 8000 rpm
*X/Y/Z axis travel: 800/55/550 mm, X/Y rapid shift 32 m/min, Z rapid shift 24 m/min
*Machine size 2600×2380×2400 mm, machine weight 5300 kg
*Spindle taper hole BT40φ150, spindle speed 8000 rpm
*X/Y/Z axis travel: 800/55/550 mm, X/Y rapid shift 32 m/min, Z rapid shift 24 m/min
*Machine size 2600×2380×2400 mm, machine weight 5300 kg
Product Details
Product Parameters
| Speicifications | VMC855 |
| Table size （mm） | 1000×550 |
| Max. worktable load（kg） | 600 |
| X-axis travel(mm) | 800 |
| Y-axis travel(mm) | 55 |
| Z-axis travel(mm) | 550 |
| X-axis Fast shift speed(m/min) | 32 |
| Y-axis Fast shift speed(m/min) | 32 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 2600L*2380W*2400H |
| Machine weight (KG) | 5300 |
