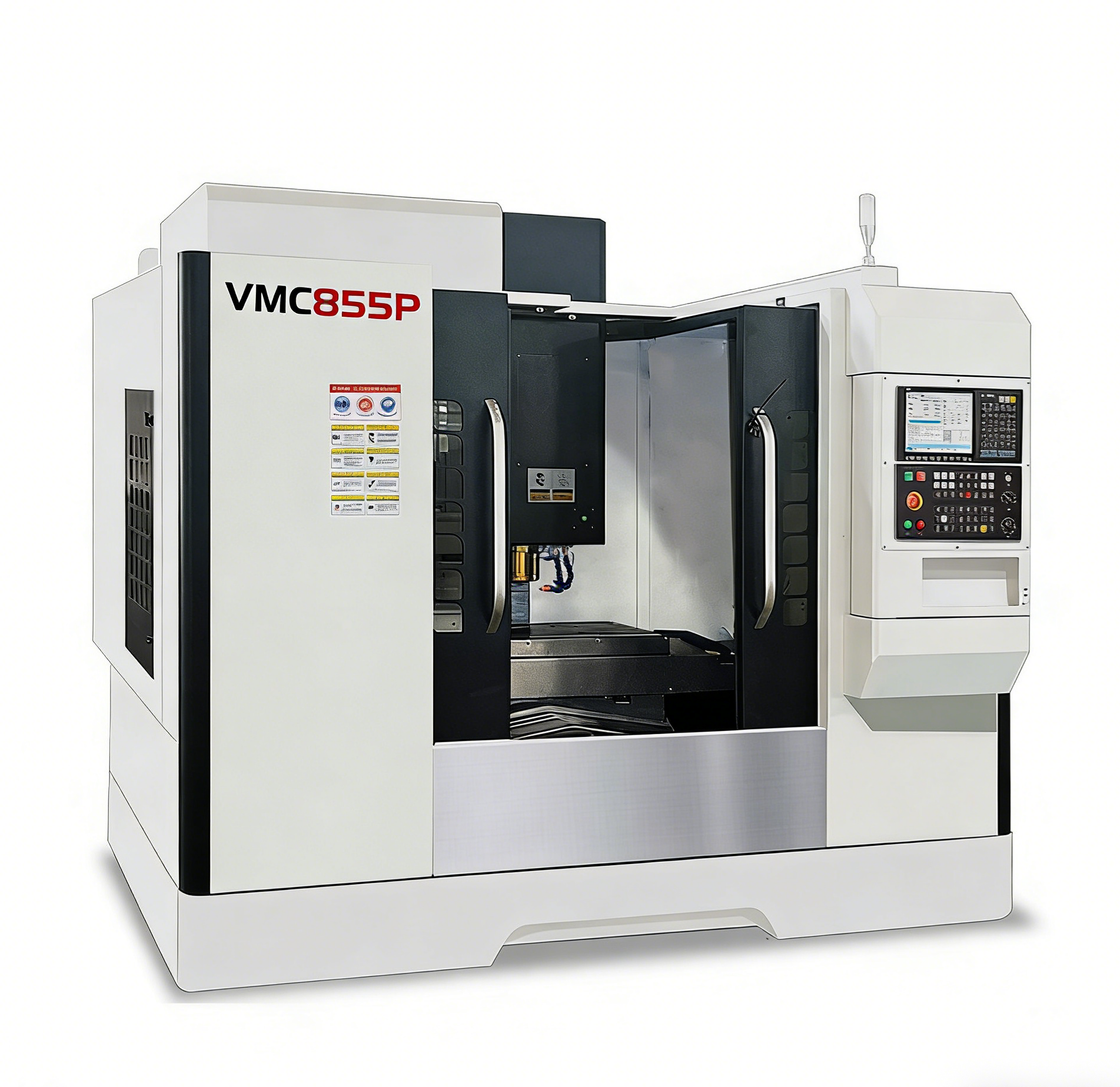

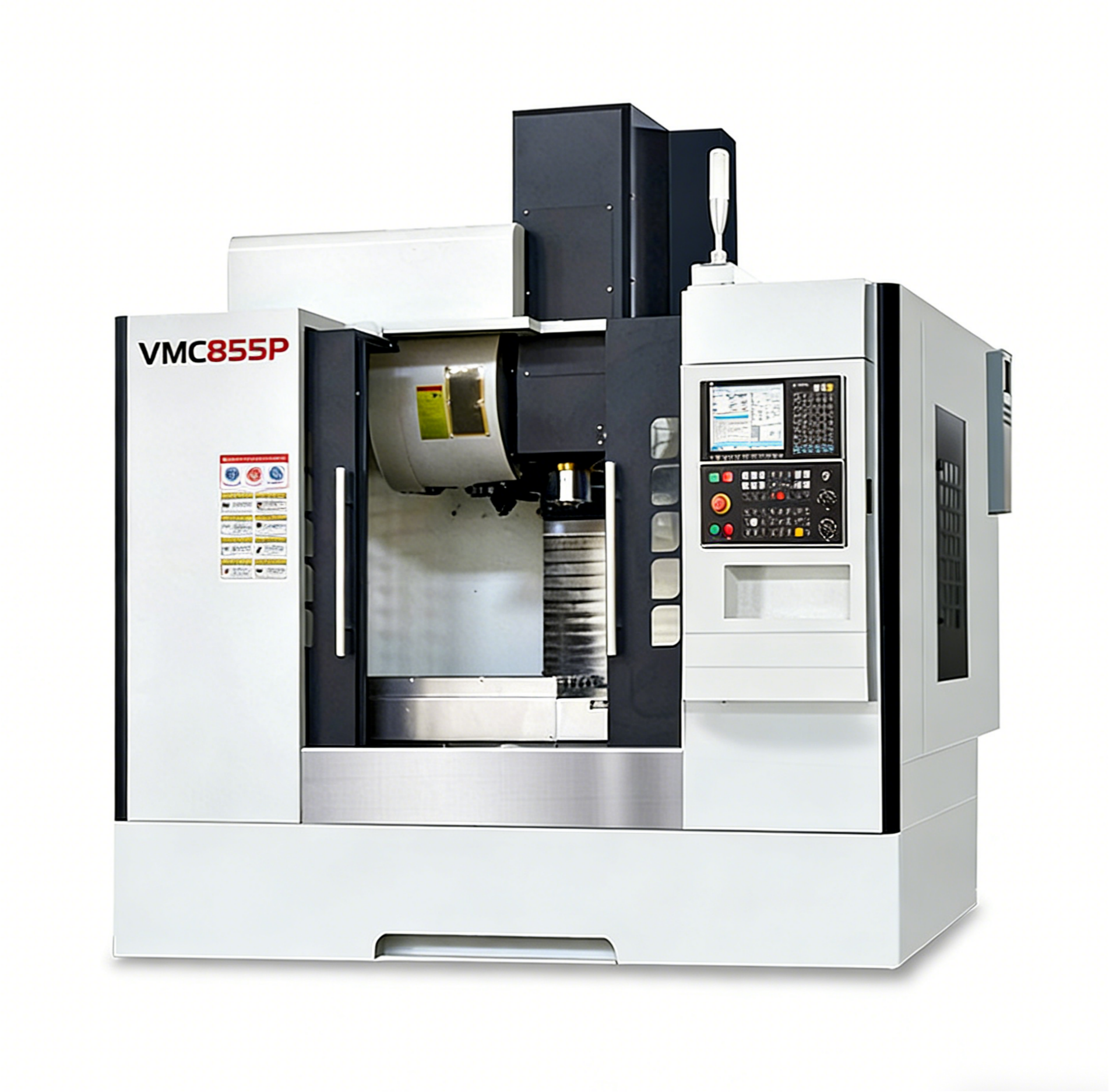

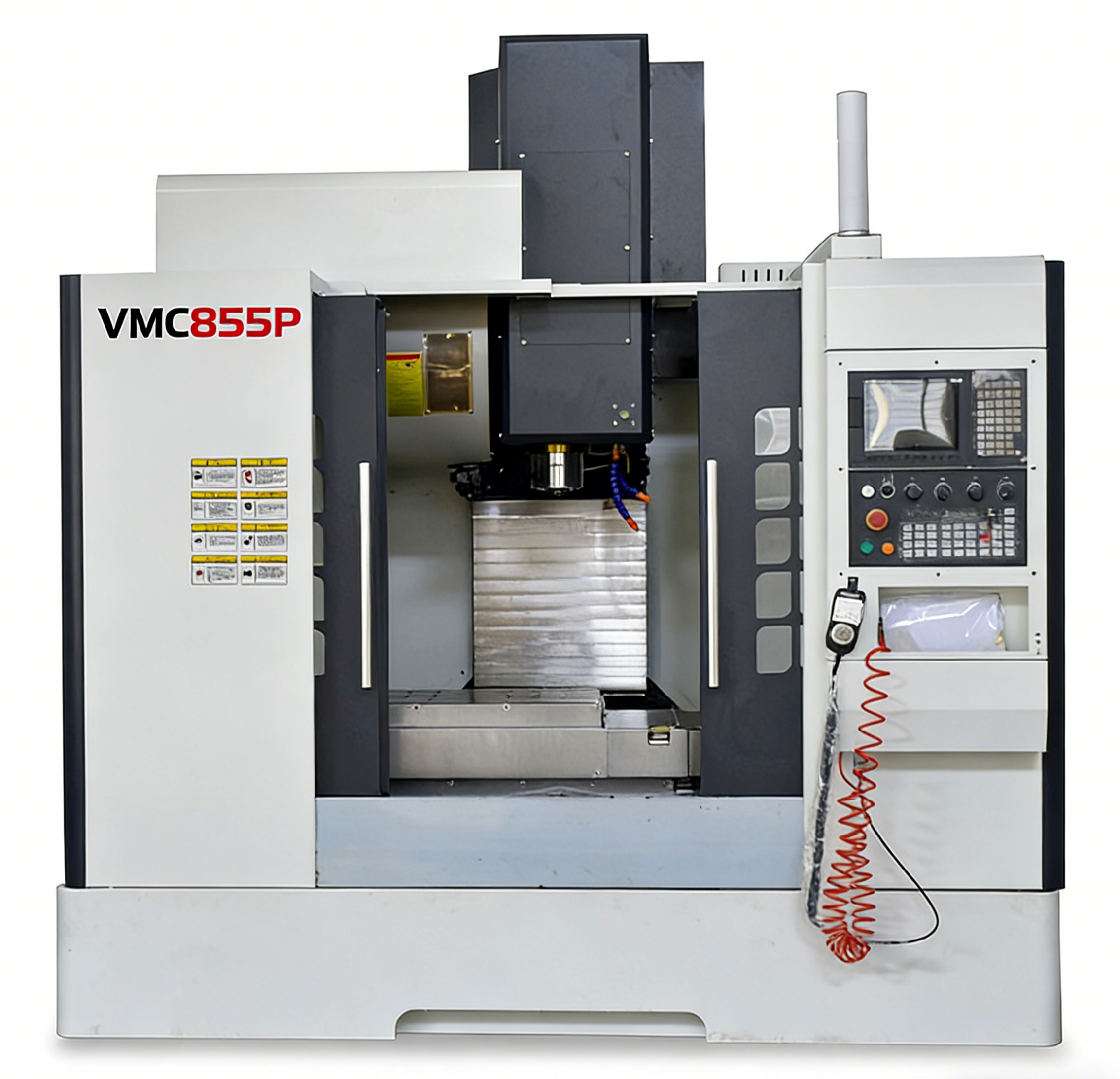

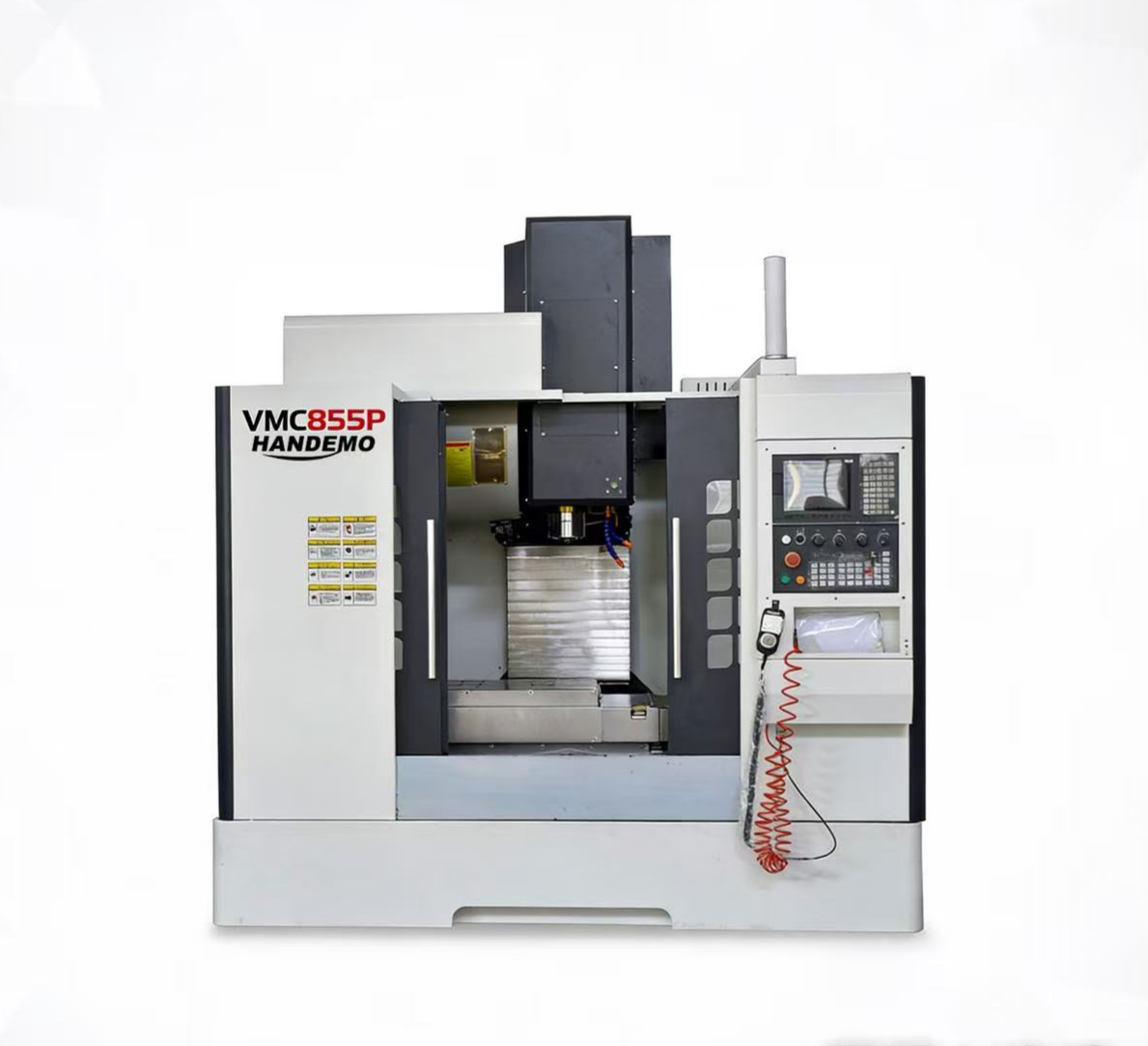

855P Vertical Machining Centers
* Upgrade of three-axis motor and spindle motor: 18/18/23/11KW, with a 30% increase in processing efficiency.

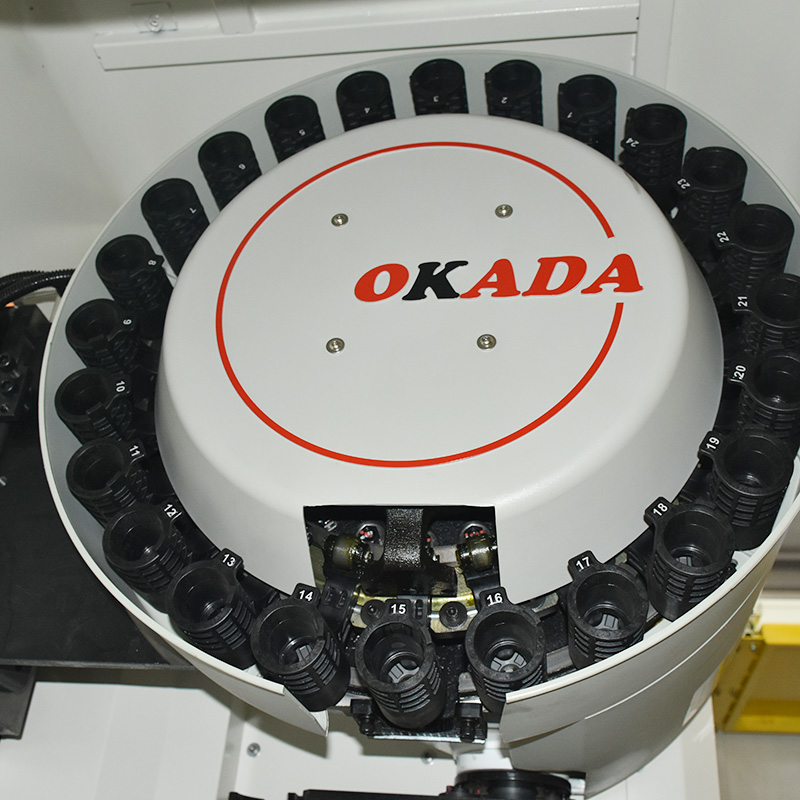

* 24 disc tool libraries are suitable for processing complex workpieces.
* 24 disc tool libraries are suitable for processing complex workpieces.
Product Details
Product Parameters
| Speicifications | VMC855 |
| Table size （mm） | 1000×550 |
| Max. worktable load（kg） | 500 |
| X-axis travel(mm) | 800 |
| Y-axis travel(mm) | 550 |
| Z-axis travel(mm) | 550 |
| X-axis Fast shift speed(m/min) | 32 |
| Y-axis Fast shift speed(m/min) | 32 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40-150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 2600L*2380W*2400H |
| Machine weight (KG) | 5500 |
