855 Vertical Machining Centers

Vertical Machining Centers / Global Standard Models

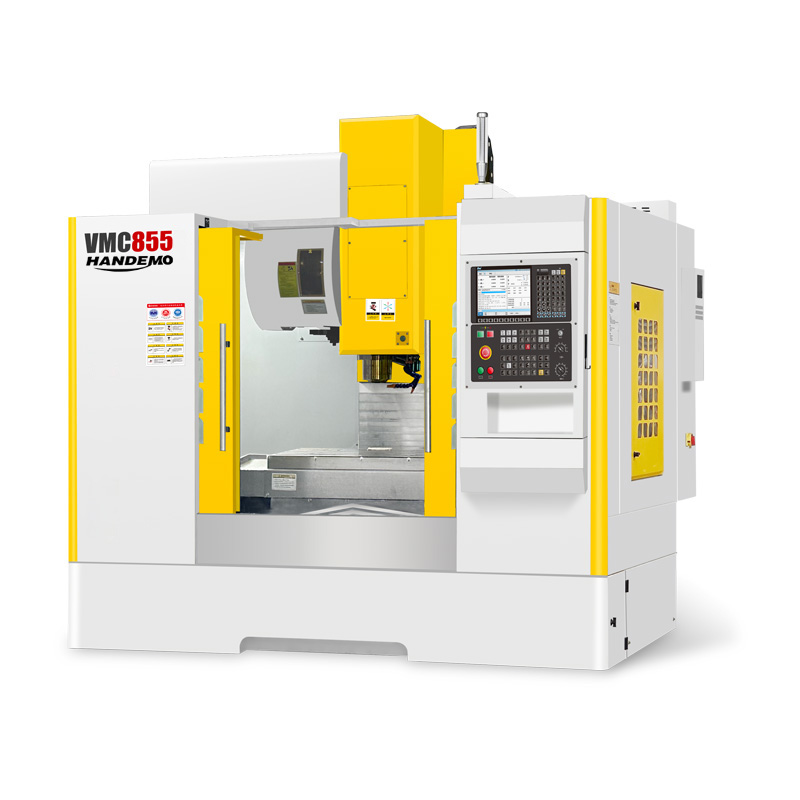

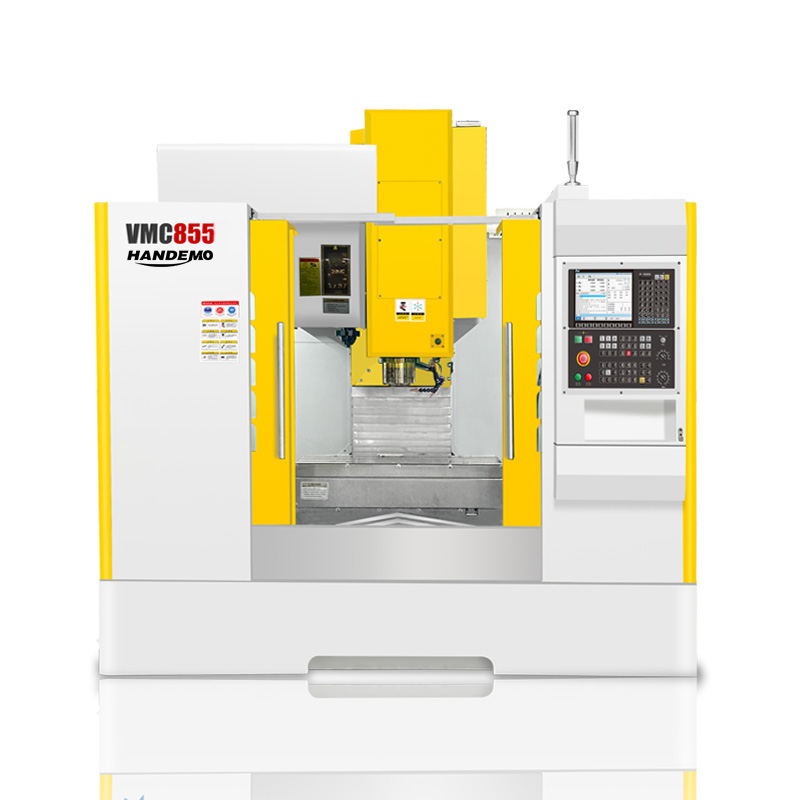

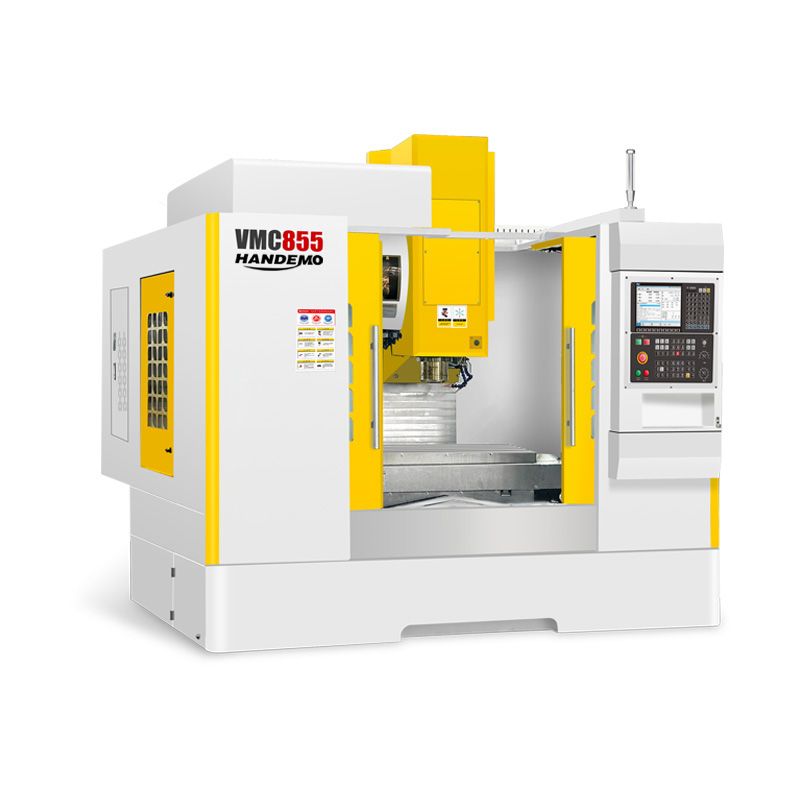

The VMC855 heavy-duty machining center combines a rigid 5,300‑kg structure with generous X/Y/Z travels (800/550/550 mm) and high‑precision linear guides to deliver stable, accurate cutting for medium‑to‑heavy workpieces. Powered by an 8,000‑rpm BT40 belt spindle and a 24‑station round disc ATC, making it ideal for automotive parts, mold making, general machinery, and aerospace components. Optional smart features like through‑spindle coolant, chip conveyor, and AI networking further enhance its versatility for both batch and single‑part production.

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Key Features

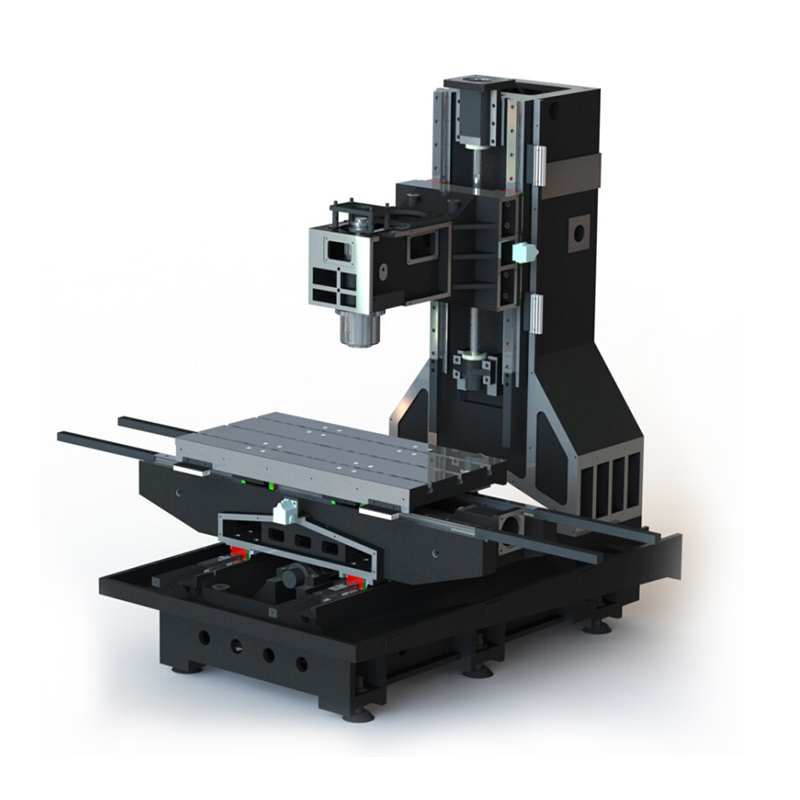

（1）Rigid & Robust Build – Heavy-duty structure with a gross weight of 5,300 kg, ensuring excellent stability and vibration damping for tough cutting conditions.

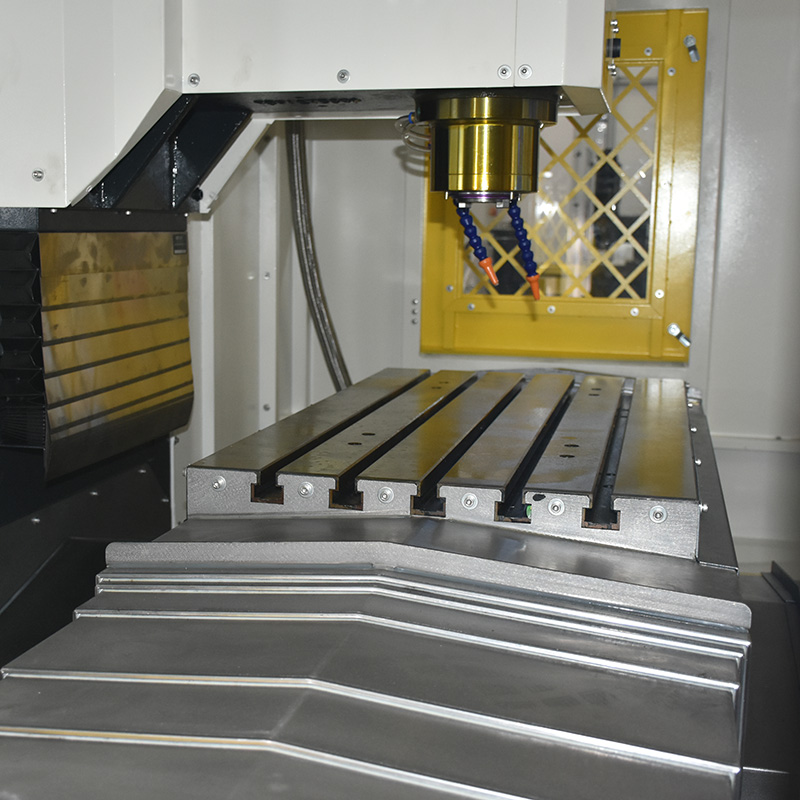

（2）Generous Work Envelope – X/Y/Z travel: 800/550/550 mm; table size: 1000×550 mm, max load 500 kg.

（3）High-Speed – Rapid traverse up to 24/32 m/min (X/Y), 18/24 m/min (Z);

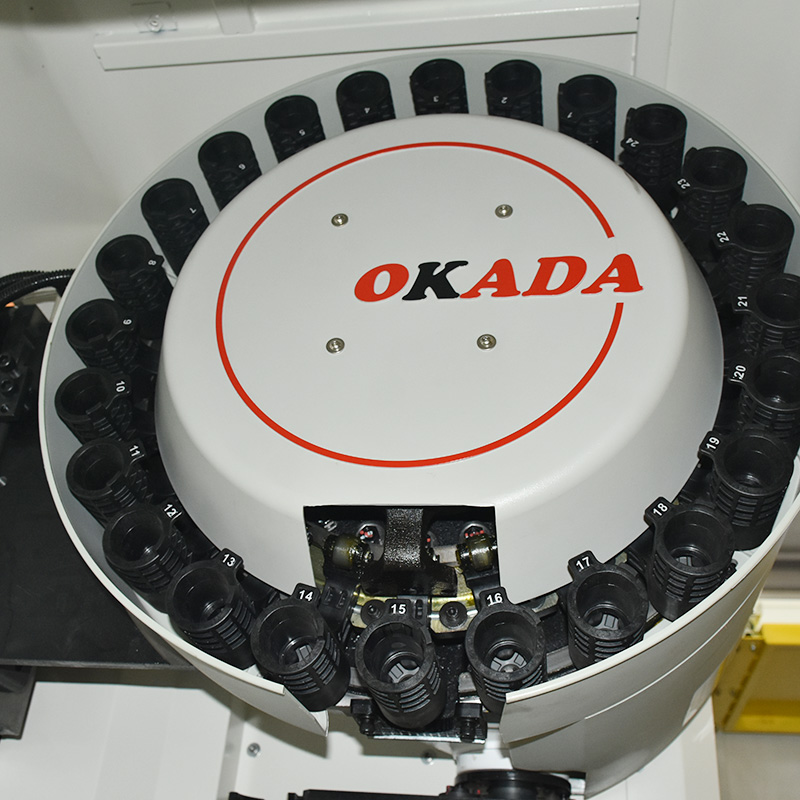

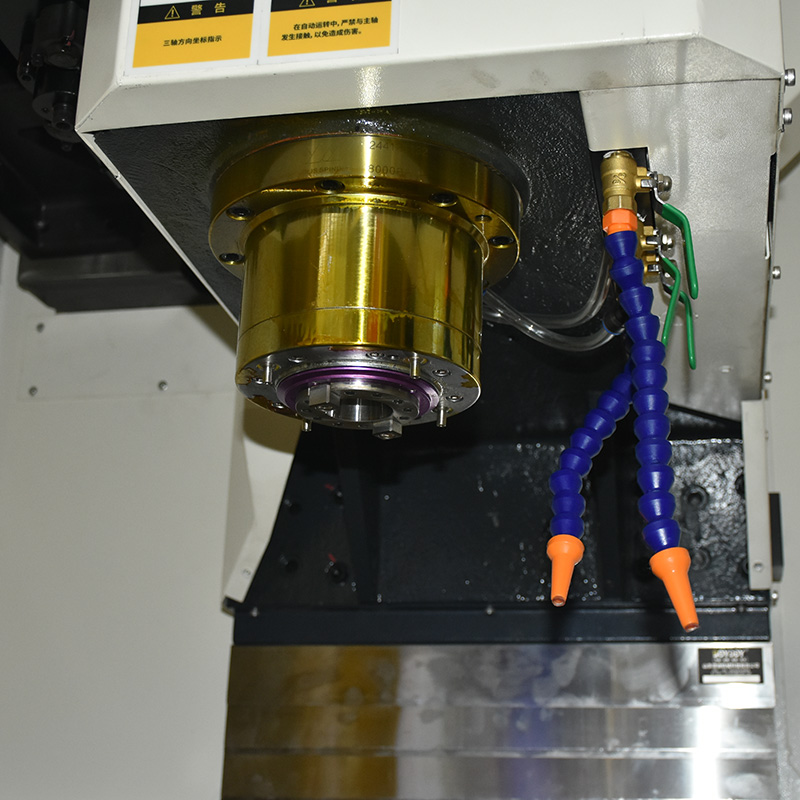

（4）Reliable Spindle & Tool Changer – Belt-driven BT40-150 spindle at 8,000 rpm, paired with a 24-station round disc ATC (2.5 sec tool change time).

（5）Premium Core Components – C3-grade NSK/HIWIN ball screws, SKF/NACHI bearings, SMC pneumatics, and Schneider electrics – built for long-term accuracy and low maintenance.

（6）Flexible Options – Available with through-spindle coolant, oil cooler, chip conveyor, full splash guard, 32T ATC, mist collector, and AI-connected networking for smart manufacturing.

Primary Applications

（1）Ideal for medium-to-heavy milling, drilling, tapping, and boring of ferrous and non-ferrous metals.

（2）Widely used in automotive parts, mold & die, general machinery, aerospace components, and 3C/electronics fixtures where high rigidity and reliable accuracy are required.

（3）Suited for both batch production and complex single-piece machining with consistent performance.

Product Details

Product Parameters

Speicifications	VMC855
Table size （mm）	1000×550
Max. worktable load（kg）	600
X-axis travel(mm)	800
Y-axis travel(mm)	55
Z-axis travel(mm)	550
X-axis Fast shift speed(m/min)	32
Y-axis Fast shift speed(m/min)	32
Z-axis Fast shift speed(m/min)	24
Spindle taper hole	BT40Φ150
Spindle speed (rpm)	8000
Machine size (mm)	2600L2380W2400H
Machine weight (KG)	5300
X-axis Positioning Accuracy(mm)	0.020
Y-axis Positioning Accuracy(mm)	0.008
Z-axis Positioning Accuracy(mm)	0.017
