650 Vertical Machining Centers

Vertical Machining Centers / Global Standard Models

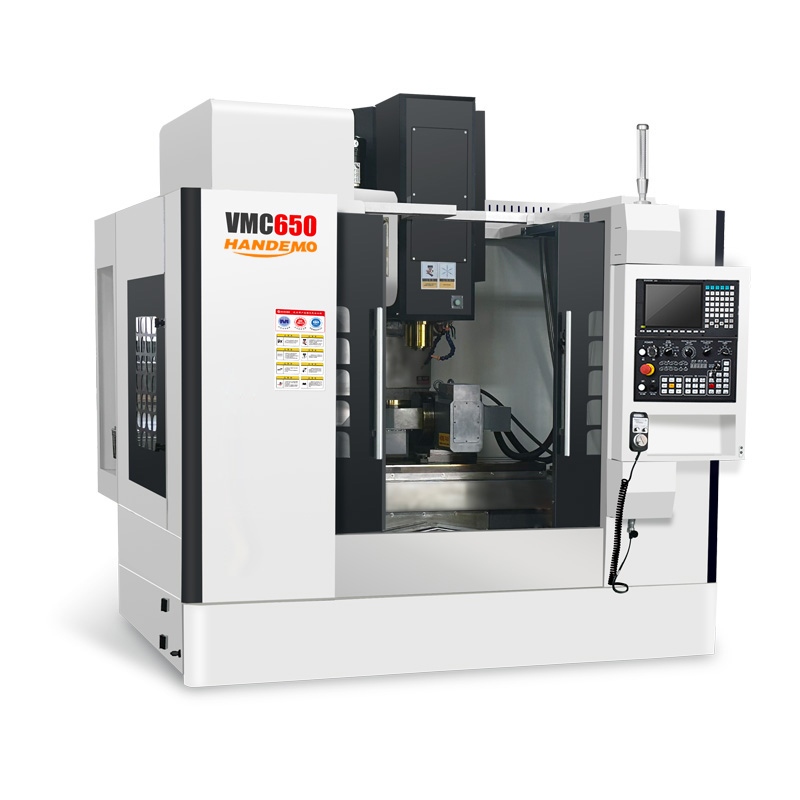

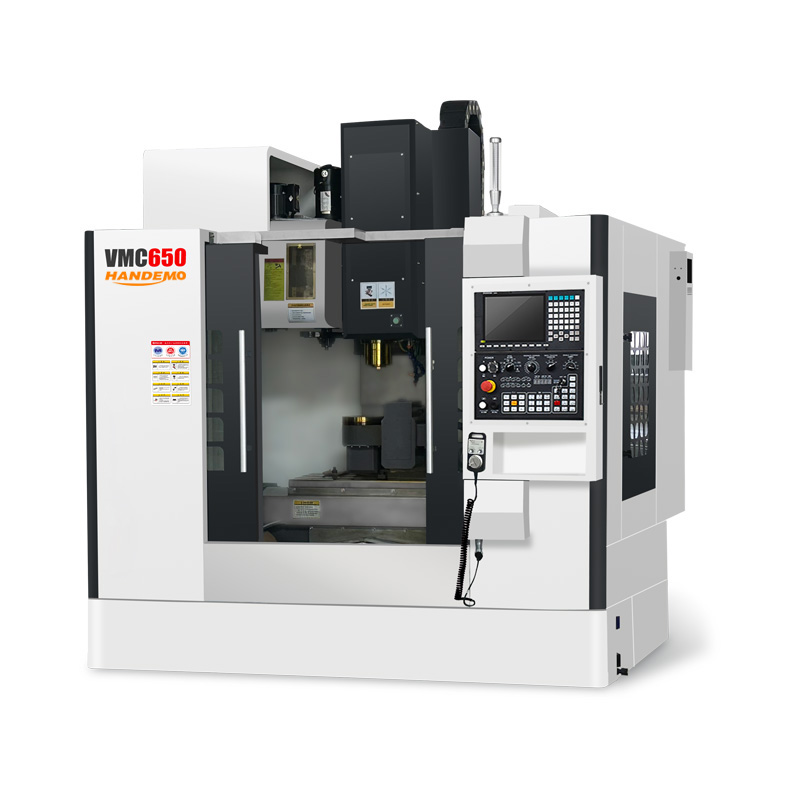

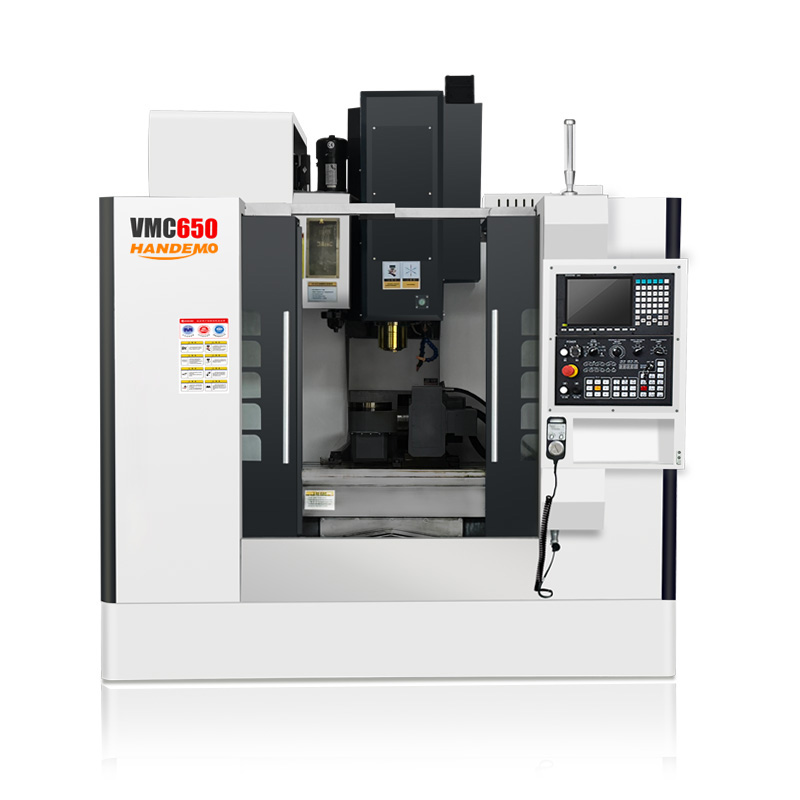

The VMC650 is a rugged 3‑axis linear‑guide machining center that combines high‑speed rapid traverse (32/32/24 m/min) with precision‑grade performance. Its BT40‑8000 rpm spindle, 16‑station round‑disc ATC, and durable Taiwanese/European key components ensure reliable milling, drilling, and tapping for automotive parts, mold making, general machinery, and 3C components. Optional upgrades – such as through‑spindle coolant, oil cooler, chip conveyors, and a 32‑tool magazine – allow flexible configuration to match both high‑efficiency roughing and tight‑tolerance finishing requirements.

Request A Quote Download Brochure

Technical Specifications

Product Details Parameters

Key Features

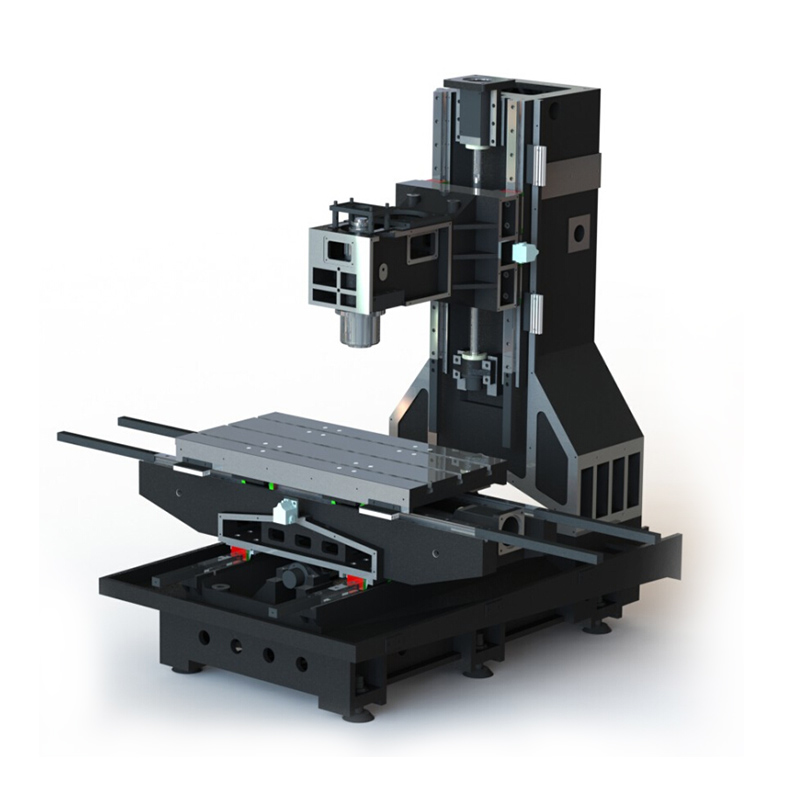

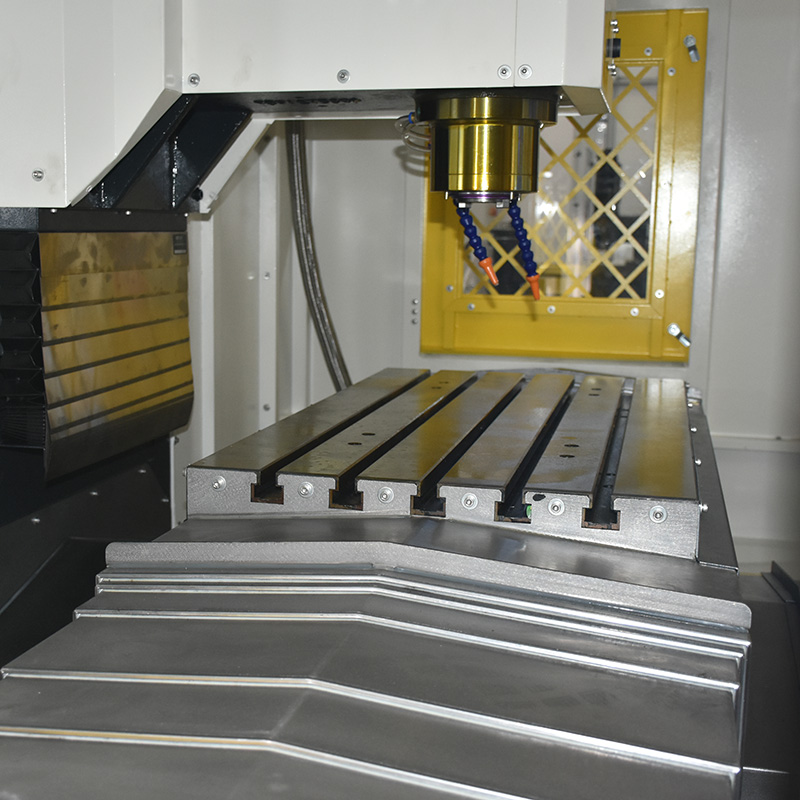

（1）Rigid & Compact Structure – Worktable size 1000×400 mm, max load 400 kg, overall footprint 2270×1820×2590 mm, weight ~3800 kg.

（2）High-Speed Rapid Traverse – X/Y/Z: 32/32/24 m/min, cutting feed up to 10,000 mm/min, boosting productivity.

（3）Precision-Grade Components – C3-class ballscrews (3216) and 35mm linear guides from Taiwanese suppliers; SKF/NACHI bearings ensure long-term accuracy.

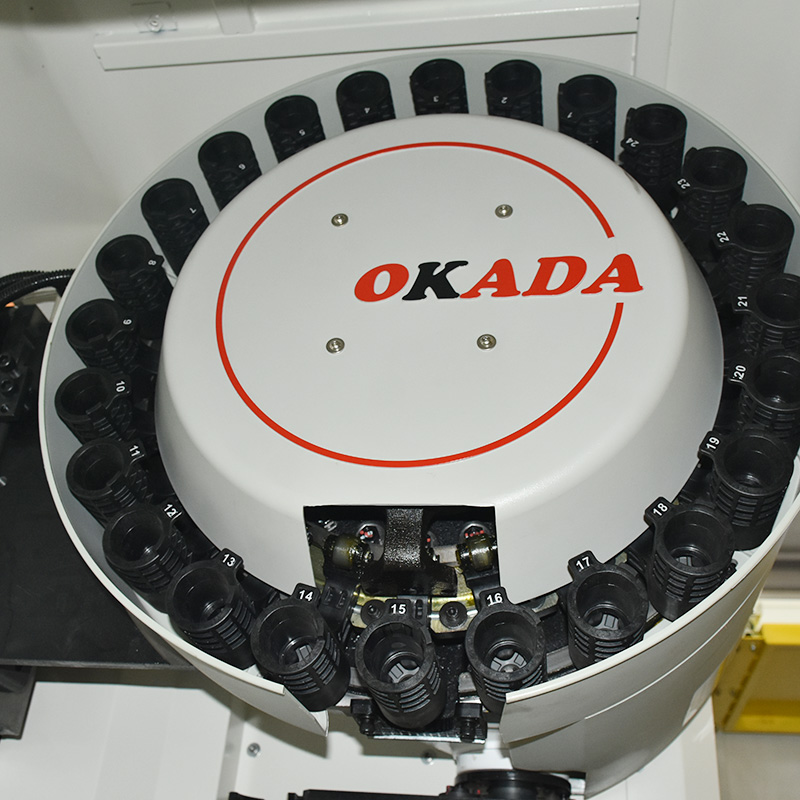

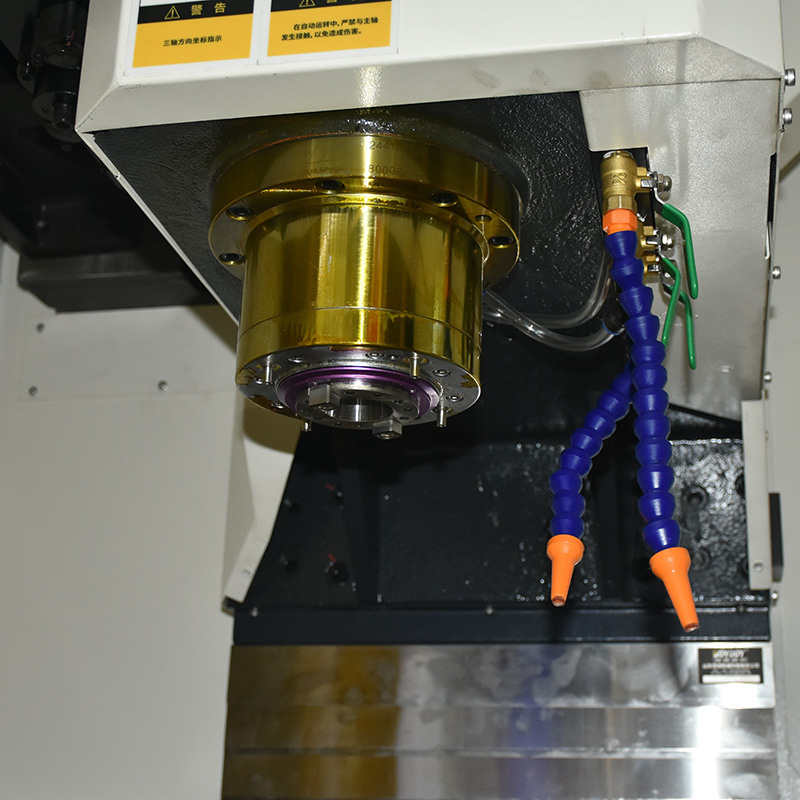

（4）Reliable Spindle & Tool Change – Belt-driven BT40-120 spindle, 8000 rpm; 16-station round disc ATC with 2.5-sec tool-to-tool change.

（5）Flexible Control – Available with KND2000MF3i or HNC818F CNC systems, matched servo drives and motors.

（6）Durable Protection – Steel telescopic way covers, full splash guard, and optional high-level upgrades (through-spindle coolant, oil cooler, etc.).

Main Applications

（1）Ideal for precision milling, drilling, tapping, and boring of medium-sized workpieces in industries like automotive parts, mold & die, general machinery, and 3C components.

（2）Handles a wide range of materials – aluminum alloys, cast iron, steel, and non-ferrous metals – with stable cutting performance for both batch production and single-piece prototyping.

（3）The combination of rapid traverse and high rigidity makes it suitable for high-efficiency roughing as well as finishing operations that demand tight tolerances.

Product Details

Product Parameters

Speicifications	VMC650
Table size （mm）	1000×400
Max. worktable load（kg）	400
X-axis travel(mm)	650
Y-axis travel(mm)	400
Z-axis travel(mm)	550
X-axis Fast shift speed(m/min)	32
Y-axis Fast shift speed(m/min)	32
Z-axis Fast shift speed(m/min)	24
Spindle taper hole	BT40Φ120
Spindle speed (rpm)	8000
Machine size (mm)	2400L2100W2300H
Machine weight (KG)	3800

FAQ

Q.How can I choose the most suitable machines?

Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.

Q.What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe Machine, Vertical Machining Center, Lathe Machines and so on.

Q.Where is our factory located? How can I visit there?

Our factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcomed to visit us.

Q.What is your trade terms?

FOB, CFR and CIF all acceptable.

Q.What's the Payment Terms?

T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.

Q.What's the MOQ?

1 set. (Only some low cost machines will be more than 1 set)

Q.What about your warranty?

Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free

Q.How do you offer after-sale service?

We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
