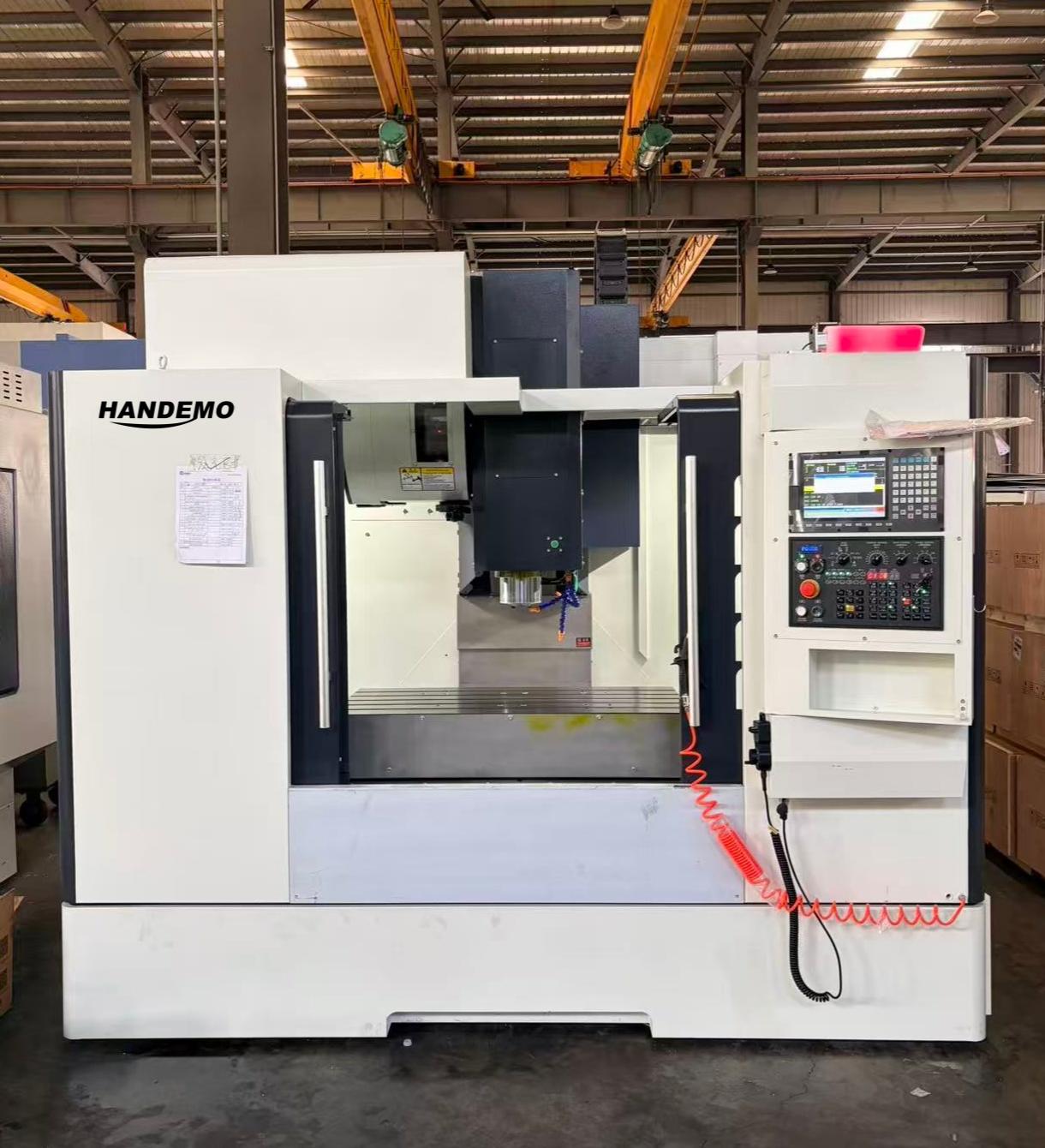

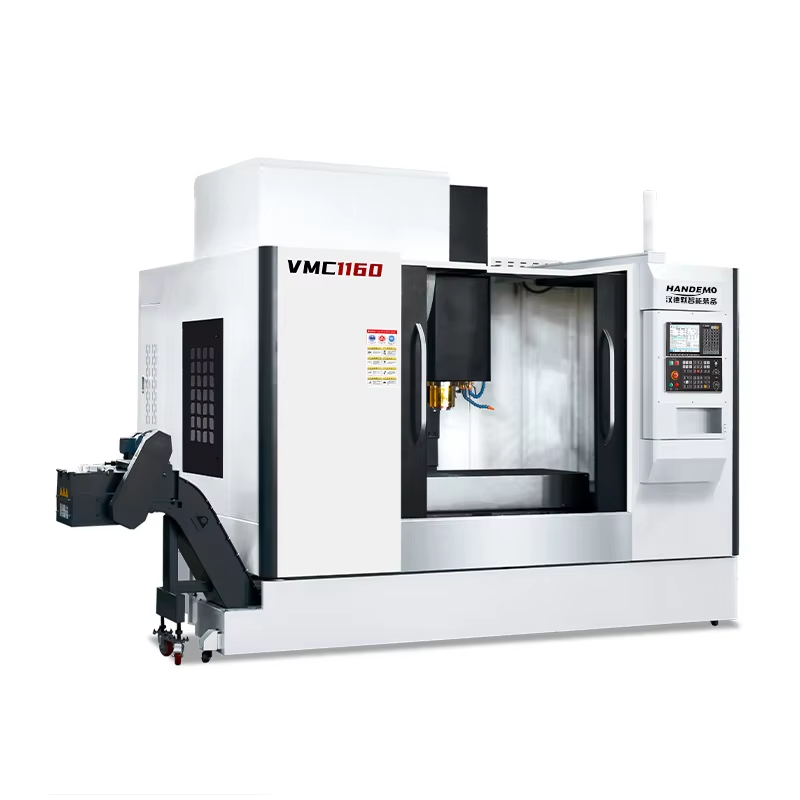

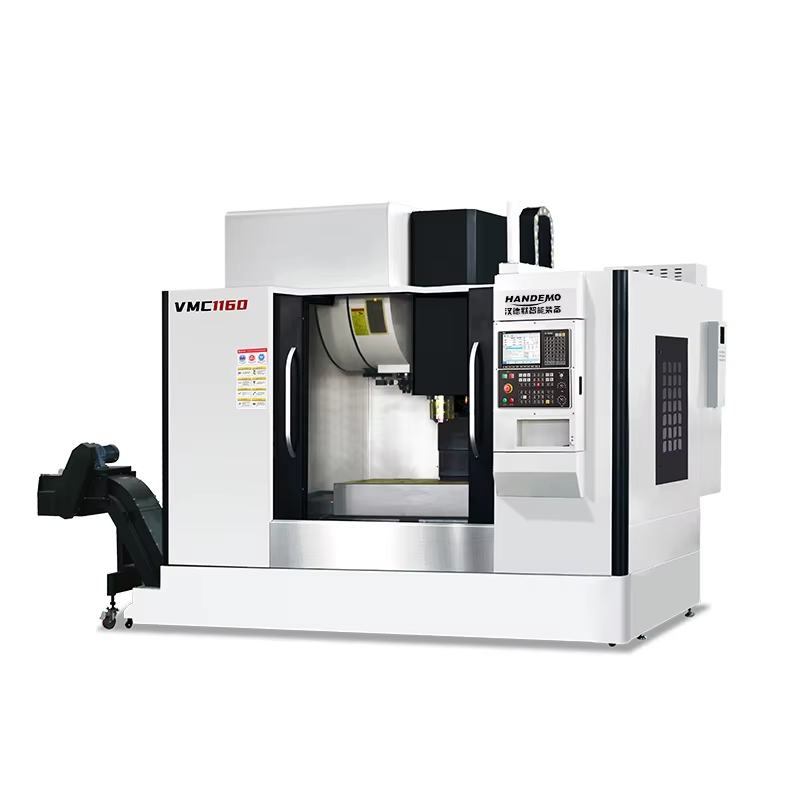

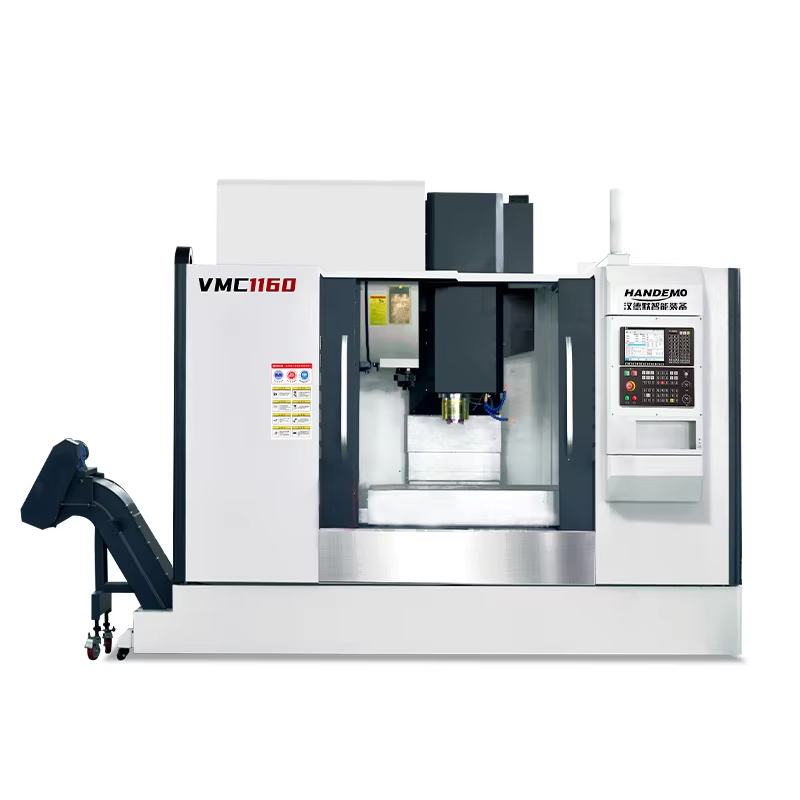

1160 Vertical Machining Centers

Key Features

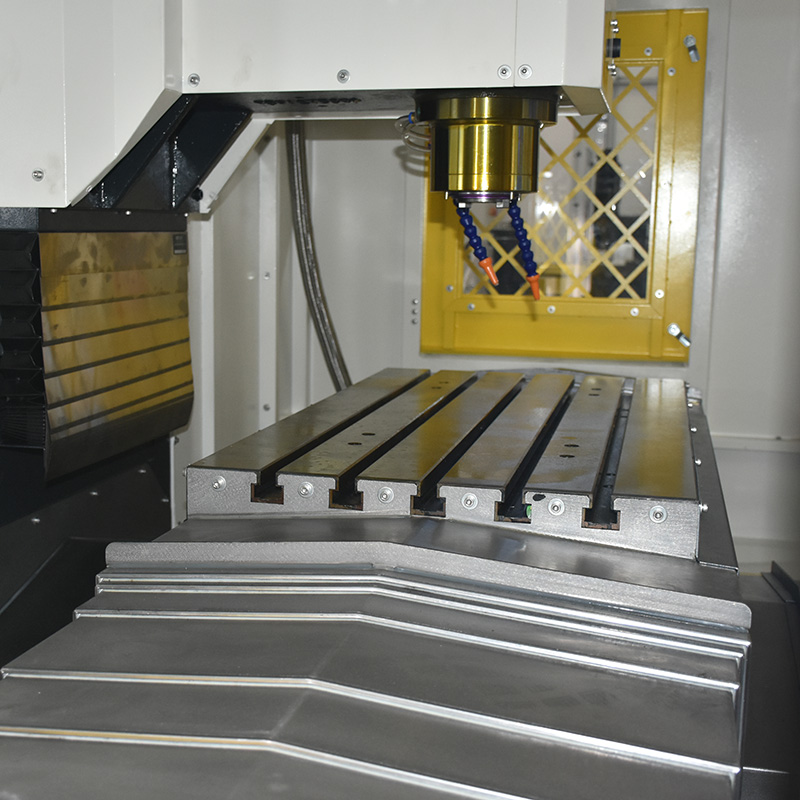

（1）Rugged Worktable - 1200×600 mm table with 800 kg max load capacity, suitable for heavy and large workpieces.

（2）Generous Travel Range - X/Y/Z axes: 1100 / 600 / 600 mm, accommodating a wide variety of part sizes.

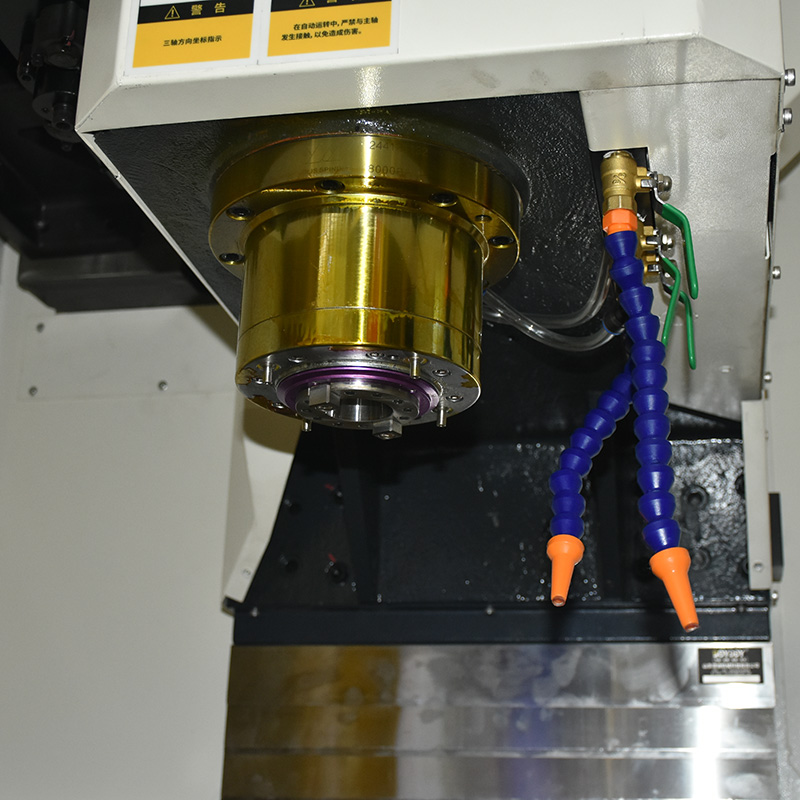

（3）High-Speed Precision Spindle - Belt-driven BT40 φ150 spindle, 8000 rpm, with 4.5T drawbar cylinder for reliable tool clamping.

（4）Rapid & Feed Rates - Rapid traverse: 24/24/18 m/min (X/Y/Z); feed rate up to 10,000 mm/min – balanced speed and precision.

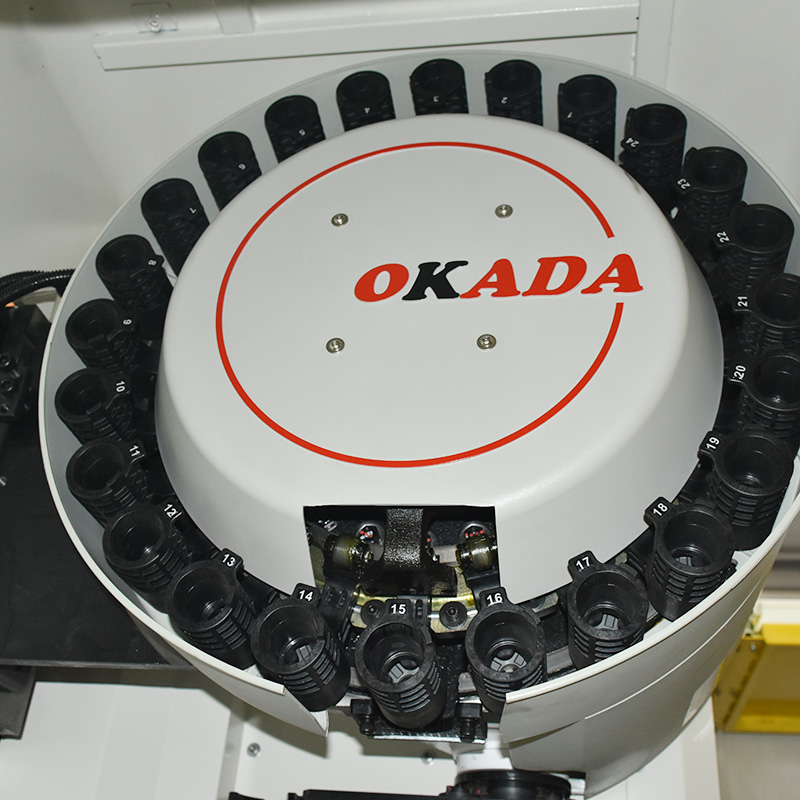

（5）Efficient Tool Management - 24-station round disc ATC with 2.5s tool-change time, minimizes downtime.

（6）Outstanding Accuracy - Positioning accuracy: ±0.008 mm; repeatability: ±0.005 mm (JIS/B-GB standards).

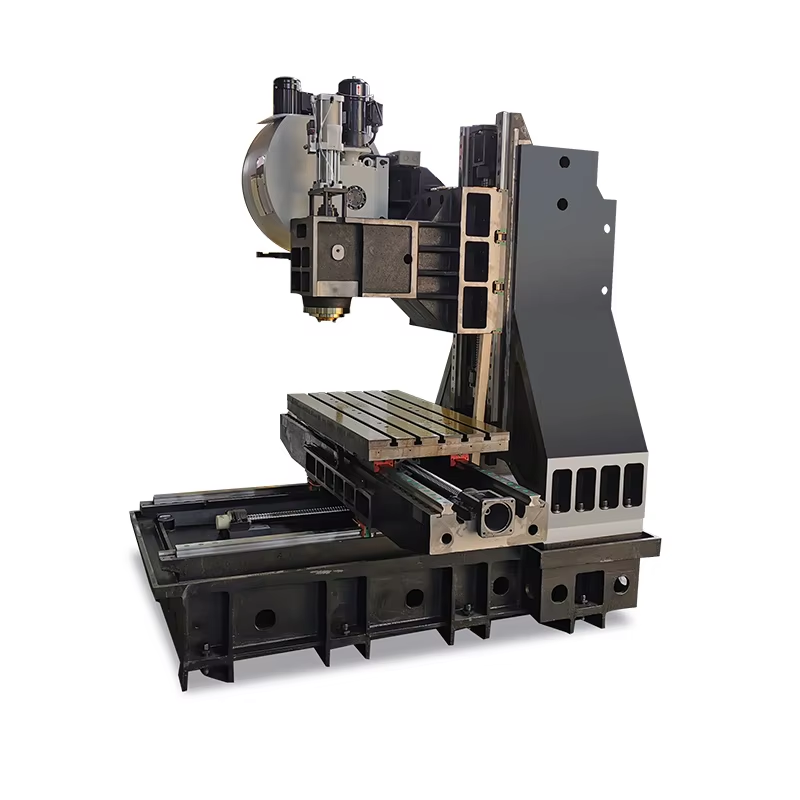

（7）Reliable Core Components - C3-grade ballscrews (φ40×12), 45-mm linear guides, TPI bearings, and choice of KND or HUST CNC systems ensure stability and longevity.

（8）Flexible Options - Available with through-spindle coolant, oil cooler, chip conveyor, full splash guard, 32T ATC, counterbalance cylinder, mist collector, and coolant filtration systems – fully customizable for high-end needs.

Primary Applications

The VMC1160 is a versatile 3-axis vertical machining center ideal for:

（1）Die & mold manufacturing – precision milling of complex contours.

（2）Automotive parts production – high-efficiency machining of engine components, brackets, and structural parts.

（3）Aerospace & general engineering – accurate processing of aluminum alloys, steel, and cast iron.

（4）Prototyping & batch production – reliable performance for both single-piece trials and mass production runs.

Built for durability, precision, and adaptability, the VMC1160 delivers excellent value for workshops demanding consistent quality and productivity.

Product Details

Product Parameters
